Place of Origin: | China |
Brand Name: | Dingyu/ DY SCAN |
Certification: | CE, ROHS, FCC, IEC, FDA |
Model Number: | DS5100 |
Minimum Order Quantity: | 1 Pcs |
---|---|
Price: | Negotiate |
Packaging Details: | 220mm L * 100mm W * H80mm |
Delivery Time: | 3-7 days |
Payment Terms: | T/T, Paypal, Alibaba |
Supply Ability: | 10000pcs/month |
Scan Element Type: | CCD | Interface: | RS232/USB |
---|---|---|---|
Colour Depth: | 32 Bit | Depth Of Field: | 10mm-600mm |
Drop Height: | 1.5m | Resolution: | 2500 |
Highlight: | Retail Chains Red Light Scanner,Mobile Payments Red Light Scanner,1.5m Drop Resistance Red Light Scanner |

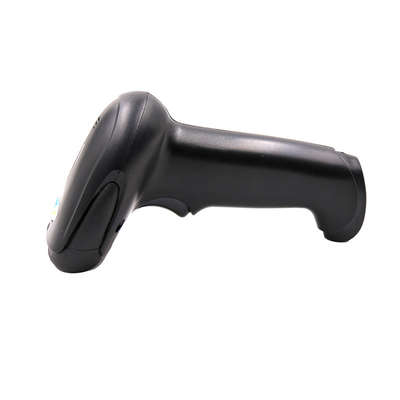

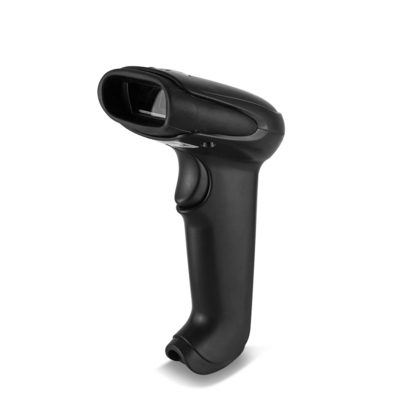

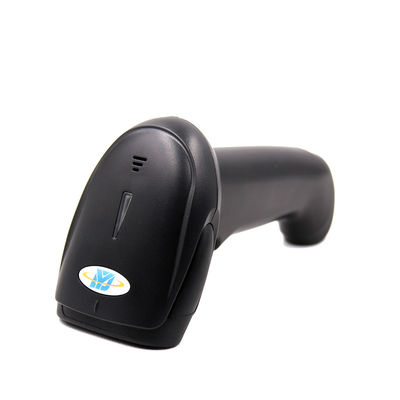

DS5100 is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It effortlessly reads barcodes on paper, products, screens, and various other media.
This versatile scanner is widely utilized in manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, asset management, and more.
Features
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
Physical Parameter | |
Weight | ≈110g(without cable) |
Dimension | L150mm * W70mm * H95mm |
Interface Type | USB |
Communication method | USB(USB-KBW,USB-COM),RS232 |
Power supply | DC 5V@80mA(work) |
Performance | |
Scan type | Linear CCD |
Light source | Visible red light,625±10nm |
CPU | 32-bit |
Resolution | 2500 |
Resolution | ≥3mil/0.1mm(PCS90%,Code 39) |
Decoding speed | 300 times/s |
Depth of field | 10mm-600mm |
Scan mode | Manual, Continuous, Auto sense |
Scan angle | Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
Print contrast signal | ≥20% |
Ambient light | Indoor natural light |
Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
Environment parameter | |
Operating temperature | -10℃ to 50℃ |
Storage temperature | -30℃ to 60℃ |
Humidity | 5% to 95%(non-condensing) |
Drop Height | 1.5m |
Transport vibration Test | 10H@125RPM |
Depth of field | |
3MIL | 60-100mm (PCS90%,Code 39) |
13MIL | 10-320mm (PCS90%,EAN-13) |
20MIL | 10-430mm (PCS90%,Code 39) |
40MIL | 110-600mm (PCS90%,Code 39) |

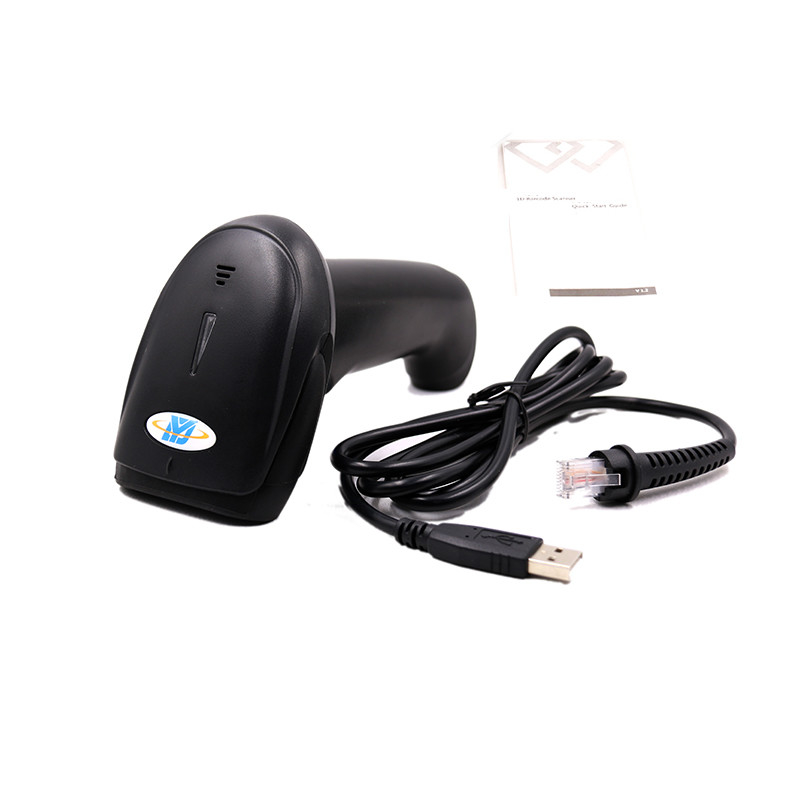

Accessories list | |
Data cable | USB, connect the scanner to a host device. |
RS232, connect the scanner to a host device, with USB supply cable. |
Supermarket,Warehouse,Mobile payment,Retail chain,Courier,Health care
Package Size :220*100*75mm
Size:L150mm * W70mm * H95mm
Weight:≈110g(without cable)
Q:Can i make a trial or sample order before ordering?
A: Yes,sure
Q: How can i print my logo on scanner? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have
