DS5220-1D High-Performance 1D Barcode Scanner
Product Overview
The DS5220-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for industrial and commercial applications, it delivers reliable performance across various environments and media types.
Key Features
- Ergonomic design for comfortable extended use
- Comprehensive 1D barcode compatibility
- High-speed decoding (300 scans/second)
- Multiple scanning modes including auto-sensing
- USB interface with plug-and-play functionality
- Multi-language and system support
Applications
Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.
Technical Specifications
Performance Parameters
| Scan Type |
Linear CCD |
| Light Source |
Visible red light, 625±10nm |
| CPU |
32-bit |
| Resolution |
2500 |
| Reading Precision |
≥3mil/0.076mm (PCS90%, Code 39) |
| Decoding Speed |
300 times/second |
| Depth of Field |
20mm~680mm |
| Scan Modes |
Manual, Continuous, Auto Sense, Flashing, Control Command |
| Prompt Method |
LED indicator, buzzer |
Physical Parameters
| Weight |
≈160.8g (without cable) |
| Dimensions |
68.4mm × 170.6mm × 87.6mm |
| Communication Mode |
USB, USB-COM |
| Power Supply |
DC 5V@80mA (work) |
Environmental Specifications
| Operating Temperature |
-20ºC to 50ºC |
| Storage Temperature |
-40ºC to 60ºC |
| Humidity |
5% to 95% (non-condensing) |
Supported Symbologies
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, and more.
Included Accessories
- USB Cable for connecting to host devices
- RS232 Cable with USB supply cable

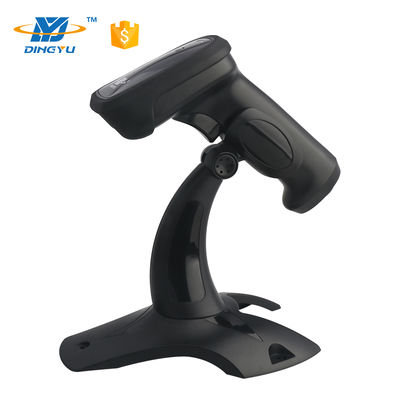

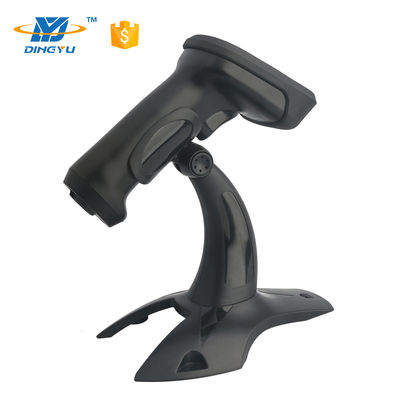

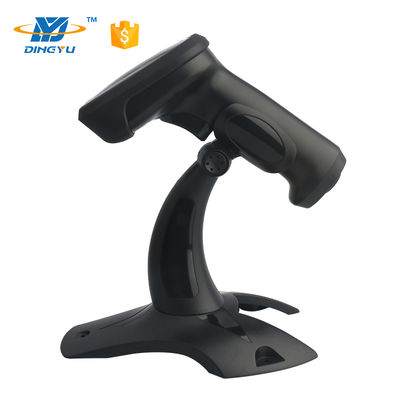

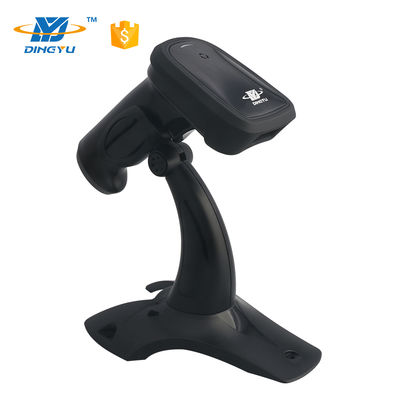

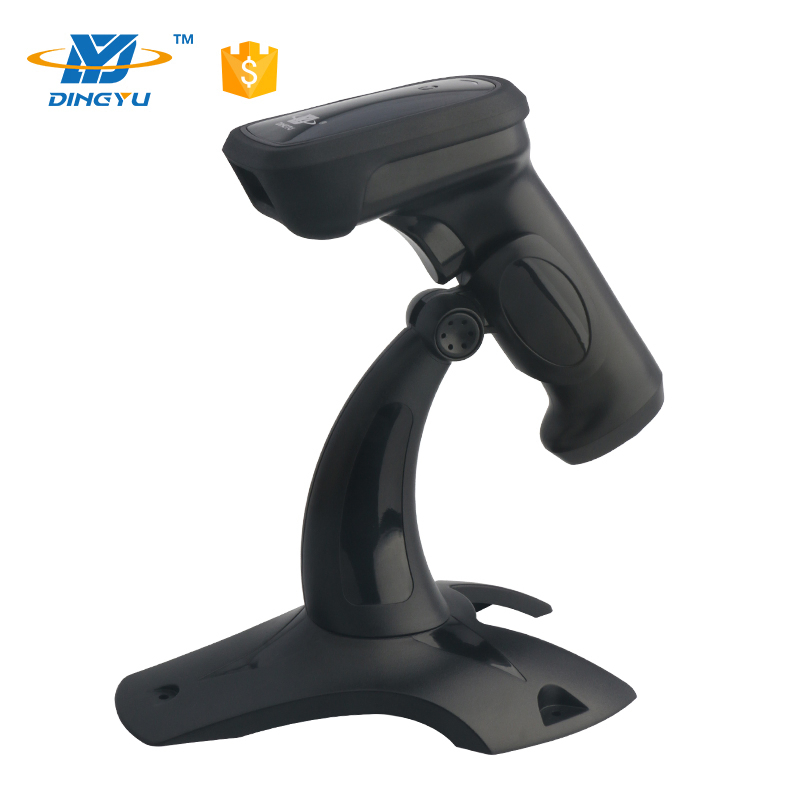

Product Images
Frequently Asked Questions
Q: How do you ensure product quality?
A: As a professional manufacturer with 18 years of experience, we implement rigorous quality control including wire bend tests (1 million cycles), button durability tests (1 million presses), and comprehensive pre-shipment testing. All products meet CE, FCC, and ROHS certifications.
Q: What is the warranty period?
A: We provide a 12-month warranty for all our barcode scanners.
Q: Do I need to install drivers?
A: No drivers are required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
Q: Do you offer OEM/ODM services?
A: Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development for specialized requirements.
