| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5400 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 111 |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 200g | CPU: | 32-bit |
|---|---|---|---|
| Resolution: | 2500 | Decoding Speed: | 300 Times / S |
| Battery: | 2 No.5 Dry Batteries | Storage: | 2M（over100,000 Barcode） |
| High Light: | cordless usb barcode scanner,wireless qr code scanner |
||

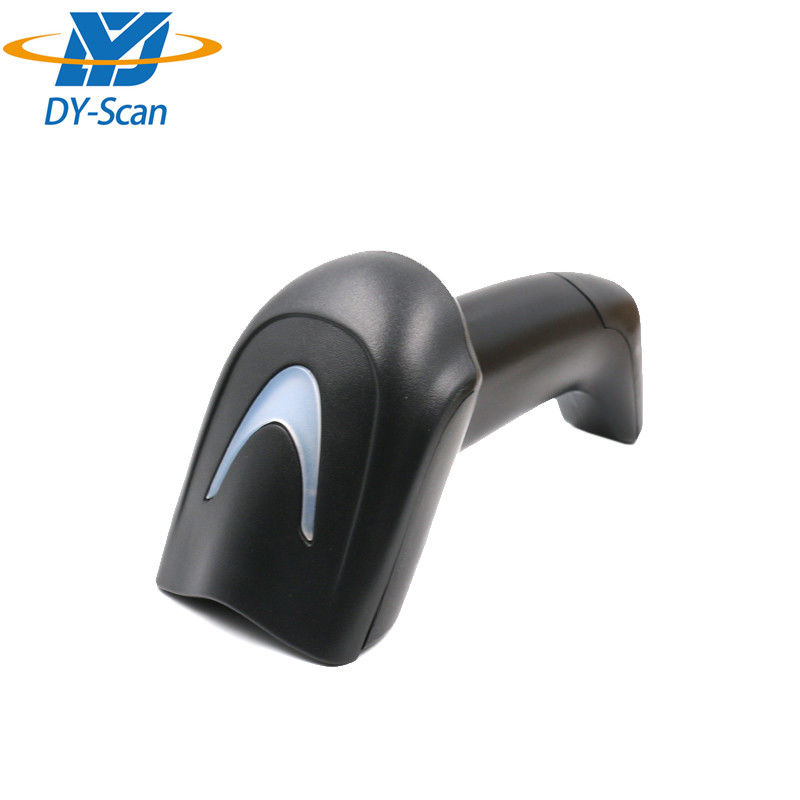

Handheld 1D 2D barcode scanner with double module engine for long barcode
Product Description
DS5400 is a high-performance 1D barcode scanner with leading CCD image recognition technology with double engine. It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic Industrial design, comfortable using.
☆ Read all mainstream 1D 2Dbarcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Support multiple languages and system.
☆ Interface: USB.
☆ Support USB barcode information transmission.
☆ 1D engine scan 1D barcodes, 2D engine scan 2D barcodes.
It can scan the long and close barcodes. (For project)
It can read special long barcode, for example:
| Physical Parameter | |
| Weight | ≈200g(without cable) |
| Dimension | L180mm * W70mm * H95mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@200mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Optical Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Roll±360°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Indoor natural light, Dark |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,ITF-6, ITF-14, Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 80-120mm (PCS90%,Code 39) |
| 13MIL | 30-320mm (PCS90%,EAN-13) |
| 20MIL | 30-450mm (PCS90%,Code 39) |
| 40MIL | 130-600mm (PCS90%,Code 39) |
| 20MIL | 30-230mm (PCS90%, QR Code) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device |
Our Company
DongGuan Ding Feng Intelligent Electronic Technology CO.,Ltd. was located in DongGuanCity,is a research and development, production, sale and service of high-tech enterprises.
Our company specializes in producing industrial and commercial barcode identification equipment,such as OEM Scan Engine, Fixed Mount Barcode Scanner, Handheld Barcode Scanner,Intelligent Barcode Scanner,High-speed image scanner etc.
Widely used in industry, commerce, transportation, finance, medical and health, tobacco industry, mobile payment and office automation.
We have CE,RoHS,FCC,ISO9001, ISO14001,IP54 etc.,and pass Grade I National Standard for Laser Safty certification.
Our customers spreads across Southeast Asia,Middle East, Europe,North and South America,Oceania ,Africa.We commit ourselves to delivering the best products and services to our customers.
FAQ
Q: Can i make a trial or sample order before ordering?
A: Yes,sure
Q: How can i print my logo on scanner? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q: Can we have our logo or company name to be printed on the product or package?
A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have
Certifications
