Introduction
DS5602 is a handheld 2D wired barcode scanner equipped with a 30 pixel global exposure camera and excellent reading performance.
It can easily read barcodes on different media such as paper, products, screens, etc.
It can be mainly applied to mobile payment, barcode scanning of goods, inventory counting, etc.

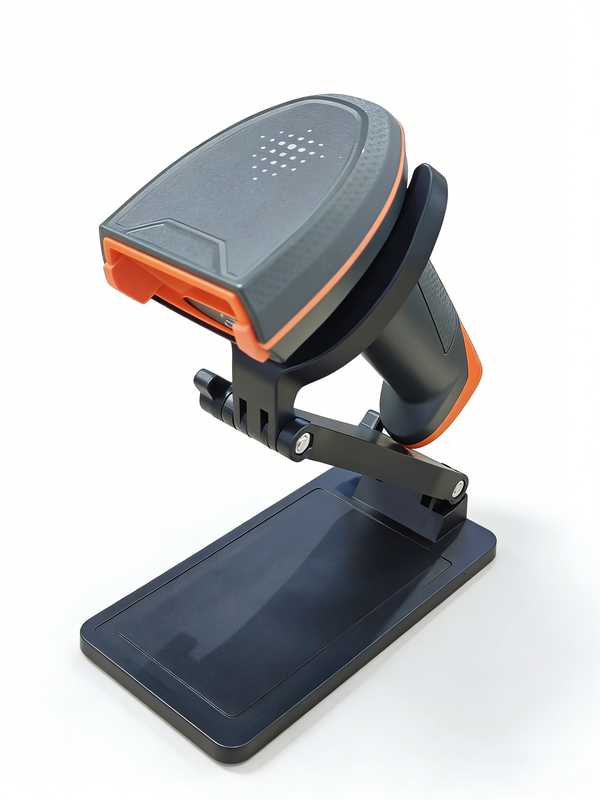

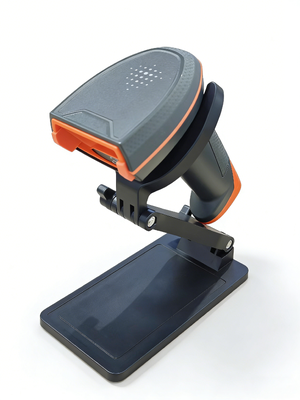

Appearance

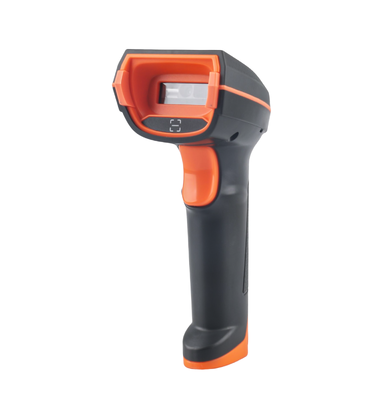

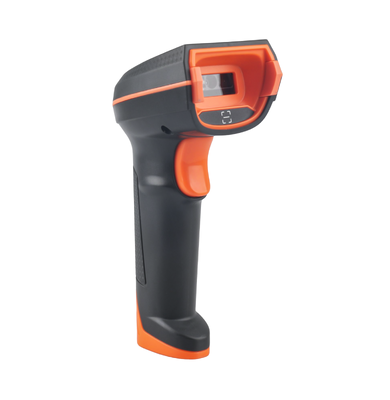

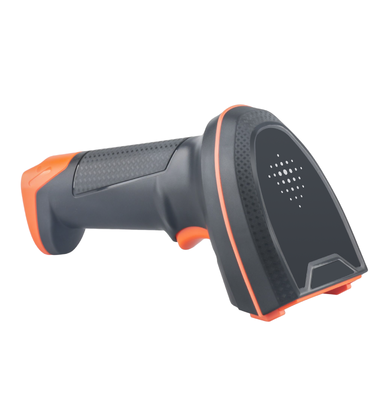

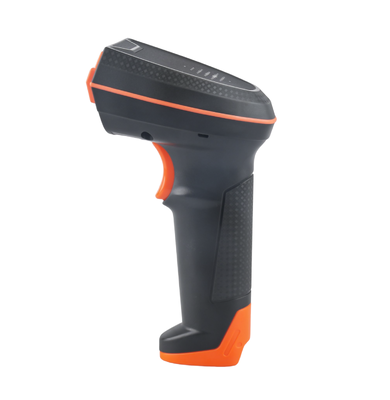

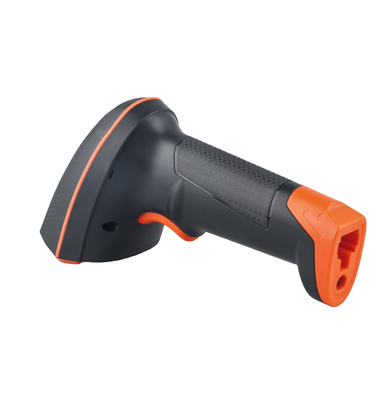

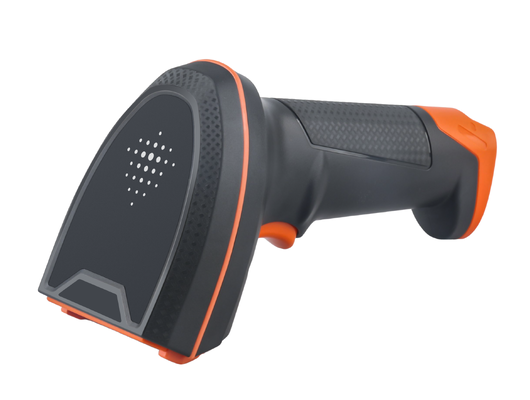

The following image shows the appearance of DS5602, with a scanning indicator light and a buzzer sound outlet above it. There is a reading window in front for scanning barcodes, a wire interface in the lower direction, and a button on the handle.
Attention:
> In order to maintain the excellent reading performance of the scanner, please keep the product clean.
> Please use soft cloth to clean the window. Do not spray any liquid on the window.
Product Features
> It can easily identify all mainstream 1D and 2D barcodes in the market with high-performance MCU.
> Its 1280*1024-pixel global exposure camera can easily read bar codes above 3MIL to meet the needs of daily scanning.
> It can easily read barcodes on paper, printing, plastic and screen with 2D imaging technology.
> It supports multiple working modes to meet different reading requirements.
> It comes with vibration prompts.
> It has detachable cables and dual interfaces (USB (USB-KBW, USB-COM), RS232 (optional)).
> It has high compatibility and supports WINDOWS, Android, and any domestic system.
> It supports online upgrades, customized development, and secondary development.
> It is anti-drop and anti-vibration with highly integrated Two-dimensional decoding structure.
> It has laser texture, visible texture, and excellent tactile sensation.
Communication Port
The scanner must be connected to a host to operate, which can be a PC master, POS machine, microcontroller, Android host or other intelligent terminal device with either USB or RS232 interface.
1. Host USB interface【USB female】
2. Host RS232 interface【DB9 male】
Wire Interface
USB
RS232
Wire Diagram
USB
RS232
Structure Dimension
Unit:mm
Performance
| Communication Mode | USB(USB-KBW,USB-COM),RS232(Optional) |
| Sensor | CMOS global shutter |
| Pixel | 1,300,000 pixel, 1280*1024 |
| Reading Precision | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Depth of Field | 30mm~500mm(Different barcode ranges) |
| Decoding Speed | 65CM/S |
| Scanning Mode | Manual , Auto Sense, Command control |
| Prompt Mode | LED,Buzzer |
| Perspective | 41° * 31° |
| Reading Angle | Roll: ±360°,Pitch:±60°,Skew: ±55° |
| | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Print Contrast | ≥15% |
| Ambient Illumination | Dark Environment,Indoor Natural Light |
| Code System | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc. |
Mechanical/Electrical Parameters
| Product Weight | 148g(Scanner) |
| Appearance Dimension | L168.5mm * W70.0mm * H91.0mm |
| Wire Length | 1.8 meters |
| Interface Type | USB male, DB9 female |
| Power Input | DC 5V 1A |
| Current | 230mA(Average Work), 33mA(Standby) |
Working Environment
| Working Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Working Humidity | 5% to 95%(Non-Condensing) |
| Transportation Vibration Test | 10H@125RPM |
Spare Part List
| Cable | USB:It is used for connecting Scanner and Host to communicate and charge. |
| | RS232(opention):It comes with a DC power supply head for connecting the scanner to the host and for serial communication.
|
| | USB power cable (opention):It is used to connect the scanner to the power supply host and for serial port power supply. |
| Power Adapter(opention) | Output: DC5V 1A, input: AC100~240V 50~60Hz,can be used for serial port power supply. |
> Check which ports are available on your host to choose the right product type.
> If necessary, contact the manufacturer to customize the interface type you need.
