Place of Origin: | China |
Brand Name: | Dingyu/ DY SCAN |
Certification: | CE, ROHS, FCC, IEC, FDA |
Model Number: | DP8618 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Delivery Time: | 3-7 days |
Payment Terms: | T/T, Paypal, Alibaba |
Supply Ability: | 10000pcs/month |
Drop Height: | 1.5m | Dimension: | (L)73.5mm * (W)73.5mm *(H)46mm |
---|---|---|---|
Decoding Speed: | 25CM/S | Power Supply: | DC 5V@100mA(work) |
Scan Angle: | Roll360°,Pitch±65°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) | Color: | White |
Material: | ABS | Depth Of Field: | 10-200mm |
Scan Mode: | Auto Sense | Rosolution: | 640*480 |
High Light: | cordless barcode reader,wireless qr code scanner |

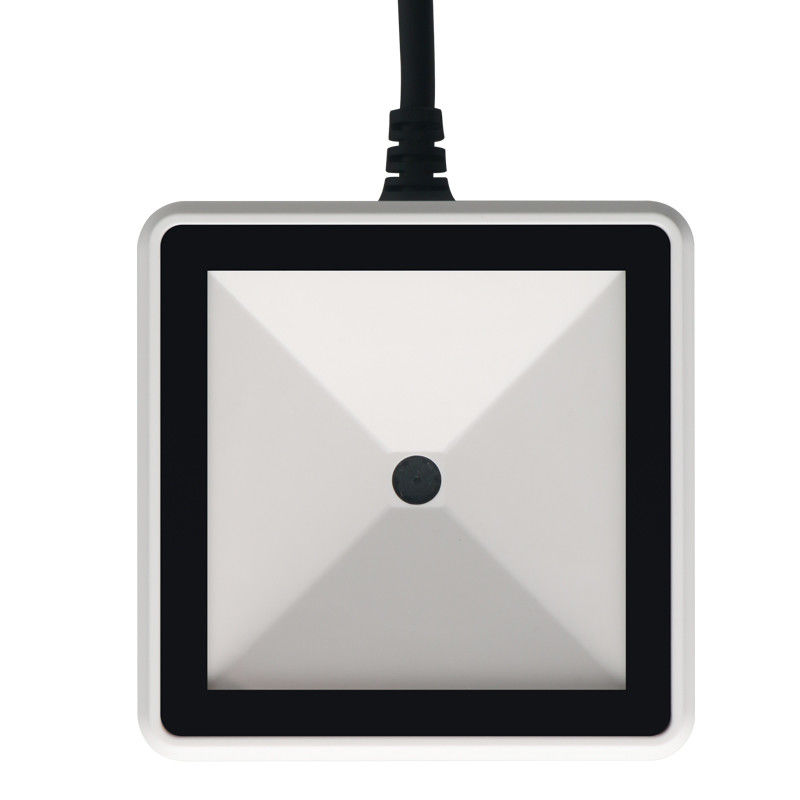

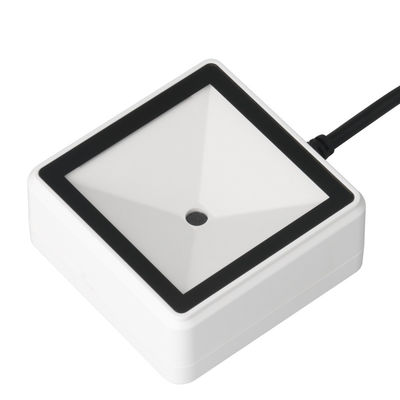

USB mobile payment 2D Omni 25CM/S Decoding Speed Table Barcode Scanner
Product Description
DP8618 is a professional 2D scanning platform.
It can read various screen brightness of the phones 1D 2D barcodes.
Large window design, large viewing angle, support all kinds of screen size mobile phones.
Excellent performance provides users with very comfortable using experience.
☆ Mini size, widely used in self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ Support USB barcode information transmission. ( languages customization)
☆ High brightness, dark environment scanning, low power consumption.
☆ Interface: USB, RS232
☆ Support multiple systems and languages, secondary development.
Application
Mobile payment Supermarket
Parameter
Scan Type | CMOS |
Image sensor | 640*480 |
Resolution | ≥4mil/0.1mm(PCS90%,CODE 39) |
Decoding speed | 60cm/s |
View | Horizontal 60°, vertical 50°, diagonal 72° |
Depth of field | 10-250mm |
Scan Mode | Auto sense, Command trigger |
Scan angle | Roll:±360°, Pitch:±60°, Yaw:±55° |
Print Contrast Signal | ≥20% |
Ambient Light | Dark environment, indoor natural light |
Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
Application
1. What's the shipping way ?
There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.
2. What's the payment way ?
We accept PayPal ,T /T,LC , Western Union , MoneyGram.
3. How about your product warranty ?
Our officially promised warranty time is 1 years after delivery.
4. How can I get the goods ?
We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.
5. If I come across any problem during product using ,where I can get the support ?
We support you technically 24h.please send all your questions to us. And we will give the professional,patient,expliantion by email or call in time.
