| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5100B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | Linear CCD | Light Source: | Visible Red Light, 625±10nm |
|---|---|---|---|
| CPU: | 32-bit | Resolution: | 2500 |
| Reading Precision: | ≥3mil/0.076mm(PCS90%,Code 39) | Decoding Speed: | 300times/s |
| Depth Of Field: | 10mm-600mm | Battery Capacity: | 2200mAh |
| Weight: | ≈160g（without Cable） | Dimension: | L150mm * W70mm * H95mm |
| Highlight: | 2200mAh Wireless Barcode Scanner,2200mAh bluetooth barcode scanner,600mm Wireless Barcode Scanner |
||

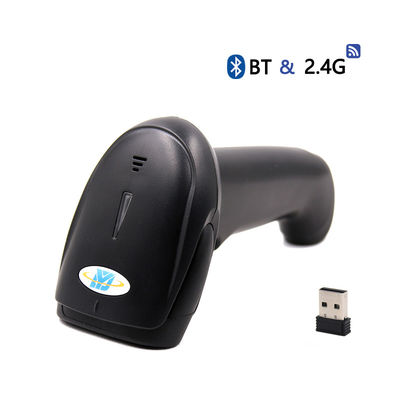

Bluetooth 4.2 2200mAh Wireless Barcode Scanner
1D CCD USB Bluetooth 4.2 Wireless 2.4G Handheld Barcode Scanner
DS5100B is a high-performance 1D bluetooth and wireless 2.4G barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
| Scan Type | Linear CCD |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Reading precision | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 10mm-600mm |
| Scan Mode | Manual ,Continuous, Auto Sense, Fashing |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60°,Roll: ±30°,Skew: ±60° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters; Bluetooth 30meters(Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 2200mAh |
| Battery charging time | About 7 hours |
| Continuous working time | ≥24hours |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Weight | ≈160g(without cable) |
| Dimension | L150mm * W70mm * H95mm |
| Communication Mode | USB,Wireless 2.4G,Wireless Bluetooth 4.2 |
| Interface Type | USB |
| Power Supply | DC 5V@100mA(work) |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -30℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
