Mini Handheld 2D Wireless Barcode Scanner CMOS Warehouse Barcode Scanner
Product Overview
The DI9130C-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media, making it ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.
Key Features
- Wearable design optimized for warehouse and express applications
- Reads all mainstream 1D and 2D barcodes (4mil resolution)
- 100,000 data storage capacity
- Bluetooth 4.2 with intelligent automatic reconnection
- Multiple connectivity modes: Bluetooth (HID, SPP, BLE) and Wireless 2.4G
- Compatible with PC and mobile devices
Technical Specifications
| Attribute | Value |
| Model NO. | DI9130C-2D |
| Interface Type | USB |
| Scan Speed | 300 scans/sec |
| Scan Element Type | CMOS |
| Scanning Mode | Auto Sense, Trigger, Continuous |
| CPU | 32-Bit |
| Resolution | 640*480 |
| Resolution Ratio | 4mil/0.1mm |
| Decoding Speed | 35cm/S |
| Depth of Field | 35mm~300mm |
| Scan Mode | Manual, Auto Sense, Continuous |
| Prompt Method | LED, Buzzer, Vibration |
| Print Contrast Signal | 25% |
| Ambient Light | Dark Environment, Indoor Natural Light |
| Wireless Communication Mode | Synchronization, Storage |
| Storage | 350kb |
| Battery Capacity | 1200mAh |
| Battery Charging Time | About 2.5 Hours |
| Continuous Working Time | 8h |
| Transport Package | Brown Carton |
| Specification | 170*110*40MM/box |
| Trademark | DYscan |
| Origin | China |
| HS Code | 8471900090 |
Performance Details
| Parameter | Specification |
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm (aim), 5600K LED (Lighting) |
| Field of View | Horizontal 45° × Vertical 34° |
| Scan Angle | Roll±360°, Pitch±60°, Skew±55° |
| Wireless Transmission Distance | Bluetooth 30 m, Wireless 2.4G 150m (Open distance) |
| Support System | Windows, Mac OS, IOS, Linux, Unix, Android |
Physical Parameters
| Parameter | Value |
| Weight | ≈70g (without cable) |
| Dimension | L128.6mm × W46.7mm × H30.3mm |
| Communication Mode | USB |
| Interface Type | Type C |
| Power Supply | DC5V, 250mA (Work), 40mA (Standby) |
Environmental Specifications
| Parameter | Value |
| Operating Temperature | -20ºC to 55ºC |
| Storage Temperature | -20ºC to 60ºC |
| Humidity | 5% to 95% (non-condensing) |
| Drop Height | 1.5m |
Accessories
| Item | Description |
| Cable | USB, connects the scanner to a host device and charging |
| Receiver | Used to receive and transmit scanner data |
Supported Symbologies
1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

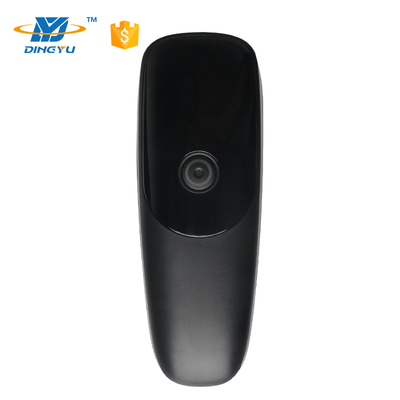

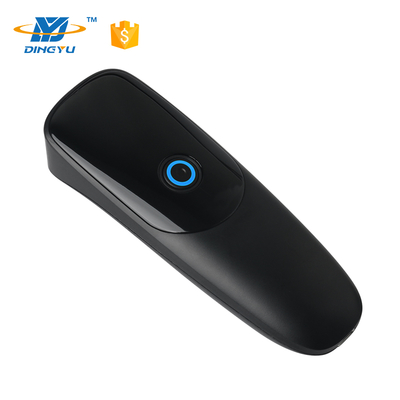

Product Images
Application
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan: We are professional manufacturers and developers of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.
Q2: How do you perform quality control?
DYscan: We conduct wire bend tests 1 million times, buttons are tested 1 million times, and all devices are tested before shipment.
Q3: What is the warranty period for your barcode scanners?
DYscan: 12 months warranty.
Q4: How do you maintain stable performance?
DYscan: We use flow line production throughout the entire process. Every product is tested at least 4 times before delivery.
Q5: Do you provide OEM or ODM services?
DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.
Q6: What are your company strengths?
DYscan: As professional scanner manufacturers, we have specialized departments with dedicated directors. Our R&D department develops new products, the production department handles manufacturing and testing, and our Marketing and Sales department includes sales teams and customer service.
Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug-and-play functionality with no driver installation required. Compatible with Windows, Mac OS, IOS, Linux, UNIX, Android, and other systems.
