| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DE2290 |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100,000pcs/month |
| Communication Mode: | USB(USB-KBW,USB-COM),TTL | Depth Of Field: | 30-500MM |
|---|---|---|---|
| CPU: | 32 Bit | Weight: | 3.4g |
| Print Contrast: | 20% | Camera: | 1280*800 |
| High Light: | 3Mil Resolution bar code scanner Engine,Auto Sense Barcode Scanner Module,Manual Barcode Scanner Module |
||
Auto Sense Barcode Scanner Module Manual 3Mil Resolution bar code scanner Engine
Product Destription

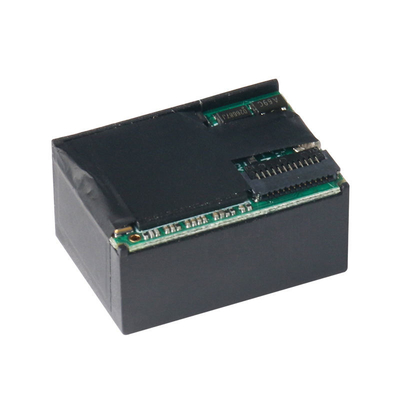

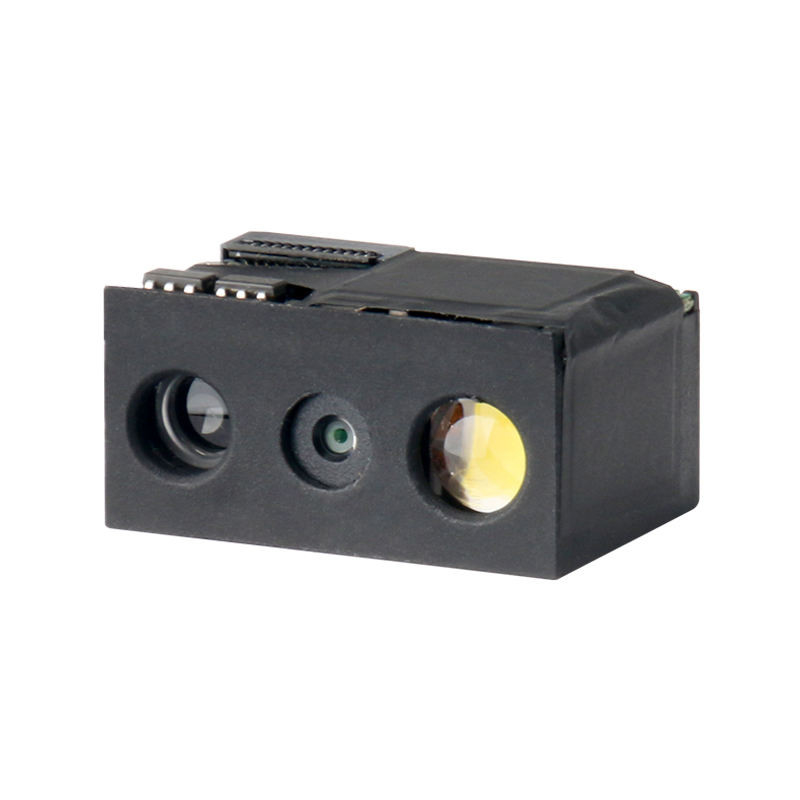

The DE2290 is a high-performance 1-megapixel embedded 2D image module featuring advanced CMOS image recognition technology and an intelligent image recognition system.
With outstanding reading performance, it effortlessly scans barcodes on various media, including paper, merchandise, and screens.
Its compact, integrated design ensures easy installation into a wide range of equipment.Ideal for use in self-service machines, price checkers, lockers, and more.
Parameter
| Weight | 3.4g(without cable) |
| Size | 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H) |
| Interface |
USB,USB-com(Need driver) ,TTL (USB protocol:Full Speed ,USB 2.0) |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm |
| CMOS | 1280*800 CMOS |
| CUP | ARM32-bit |
| startup time | 750ms |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Depth of field | 30-500mm |
| Scan mode | Trigger mode,Auto sense mode, Command control |
| prompting mode | LED indicating lamp,buzzer |
| Reading angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| visual angle | Horizontal 40°× Vertical 30° |
| Motion tolerance | 65cm/s |
| Power input | 3.3V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA |
| Print contrast | 20%PCS |
| Ambient Light | 70000Lux |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| operating temperature | -20℃ to 55℃ |
| storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
FQA:
Q1: How do you ensure the high quality of your barcode scanners?
DYscan: We are a professional manufacturer and developer of barcode scanners, with 18 years of extensive field experience.
We have a dedicated QC team and use advanced testing equipment (engine age test, wire bend machine, switch life test, shock resistance test).
All our barcode scanners are certified by CE, FCC, and ROHS, among others.
Q2: How do you manage quality control?
DYscan: Our wire bend test and button durability test both exceed 1 million cycles. Every device undergoes comprehensive testing before shipment.
Q3: What is the warranty period for your barcode scanners?
DYscan: 12 months.
Q4: How do you maintain stable performance?
DYscan: We employ a streamlined production process. Each product is tested at least four times before delivery.
Q5: Do you offer OEM or ODM services for barcode scanners?
DYscan: Yes, we offer OEM services, including custom logo printing, color box design, and user manual creation. Our technical team also supports ODM services.
