| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DE2290 |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Dimension: | 21.38mm L × 15.84mm W × 11.58mm H | Interface Type: | FFC 12PIN Pitch 0.5 |
|---|---|---|---|
| Resolution: | 1D：≥3mil，2D：≥8.7mil @PCS90% | Scan Angle: | Horizontal 40°× Vertical 30° |
| Print Contrast: | ≥25% | Weight: | 3.4g |
| Resolution: | 640×480 CMOS | ||
| Highlight: | OEM 2D Barcode Scanner Module,Easy Integration 2D Barcode Scanner Module,Durable 2D Barcode Scanner Module |
||

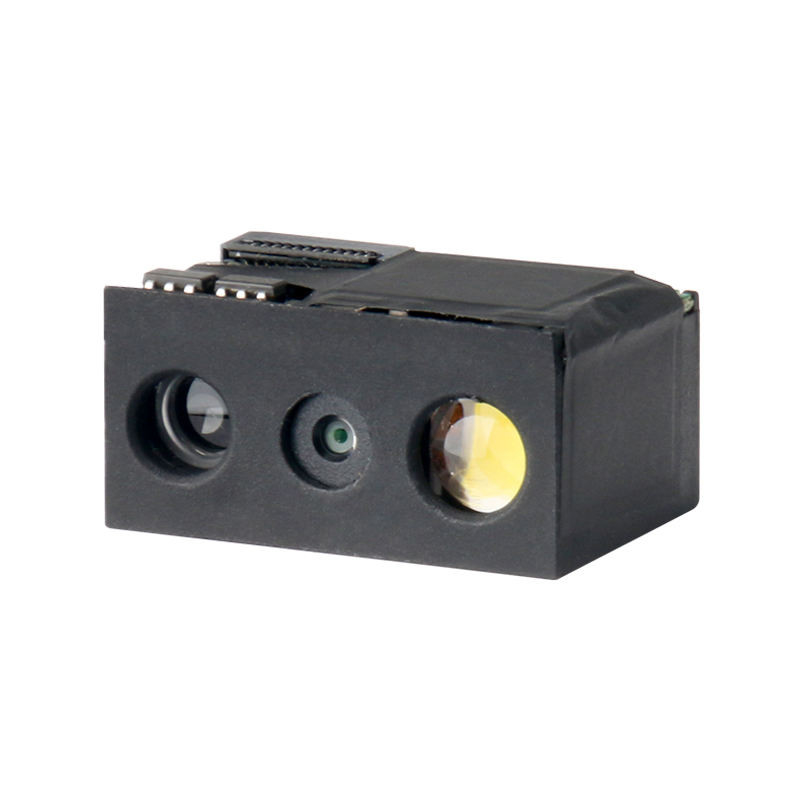

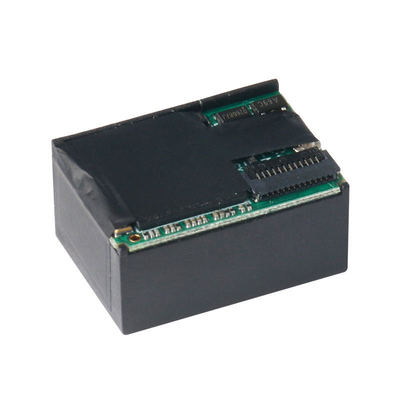

Compact OEM 2D Barcode Scanner Module Durable PDF417 Barcode Engine for Easy Integration
Product description
The DE2390 is a high-performance 1-megapixel embedded 2D image module featuring advanced CMOS image recognition technology and an intelligent image processing system.
With its exceptional reading capabilities, it can effortlessly scan barcodes on various media, including paper, merchandise, and screens.
The compact, integrated design makes it easy to embed into a wide range of equipment.
This module is widely used in self-service machines, price checkers, lockers, and more.
Parameter
| Weight | 3.4g(without cable) |
| Size | 21.38mm L × 15.84mm W × 11.58mm H |
| Interface |
USB,USB-com(Need driver) ,TTL (USB protocol:Full Speed ,USB 2.0) |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm |
| CMOS | 640×480 CMOS |
| CUP | ARM32-bit |
| startup time | 750ms |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan mode | Trigger mode,Auto sense mode, Command control |
| prompting mode | LED indicating lamp,buzzer |
| Reading angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| visual angle | Horizontal 40°× Vertical 30° |
| Motion tolerance | 25cm/s |
| Power input | 3.5V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA |
| Print contrast | 25%PCS |
| Ambient Light | 70000Lux |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Operating temperature | -20℃ to 55℃ |
| storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
