DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface

DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface

  • DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
  • DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
  • DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
  • DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
  • DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
  • DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Model NO.: DS5110 Interface Type: USB
Scan Element: CCD Resolution: 3mil Code39
Depth Of Field: 10-600mm Scan Mode: Manual, Continuous, Auto Scan, Flashing
Print Contrast: 20% CPU: 32 Bit
Cable Length: 1.5m Weight: 147g
Power Supply: DC 5V 80mA Drop Height: 1.5m
Operating Temperature: -20 To 50 Degree Communication: USB(USB-Kbw,USB-COM),RS232
Dimensions: L161mm * W63mm * H80mm
Highlight:

1D barcode scanner with USB interface

,

DS5110 barcode scanner 600mm range

,

USB 1D barcode scanner with warranty

High Speed Barcode Scanner Wired Handheld 1D Barcode Scanner

1D CCD Barcode QR Code Scanner Handheld Wireless Retail Barcode Scanner

The DS5110 is a high-performance 1D barcode scanner featuring leading CCD image recognition technology. It easily reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehouse logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface 0
Product Specifications
Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading Precision ≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed 300 times/s
Depth of Field 10mm-600mm
Scan Mode Manual, Continuous, Auto Sense, Flashing
Scan Angle Test Conditions: CODE39, 10mil/0.25mm, PCS90%
Pitch: ±60°
Roll: ±30°
Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight ≈147g (without cable)
Dimensions L161mm × W63mm × H80mm
Communication Mode USB (USB-KBW, USB-COM), RS232
Interface Type USB, RS232
Power Supply DC 5V@80mA (work)
Operating Temperature -20ºC to 50ºC
Storage Temperature -40ºC to 70ºC
Humidity 5% to 95% (non-condensing)
Drop Height 1.5m
Temperature Test 30 minutes for high temp., 30 minutes for low temp.
High Temp.: 60ºC
Low Temp.: -20ºC
Transport Vibration Test 10H@125RPM
Key Features
  • Ergonomic design for comfortable use
  • Reads all mainstream 1D barcodes easily
  • High-performance processor with fast decoding (3mil)
  • Supports multiple languages and systems
  • Interfaces: USB, RS232
  • Ideal for supermarkets, warehouses, mobile payments, and chain stores
DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface 1 DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface 2

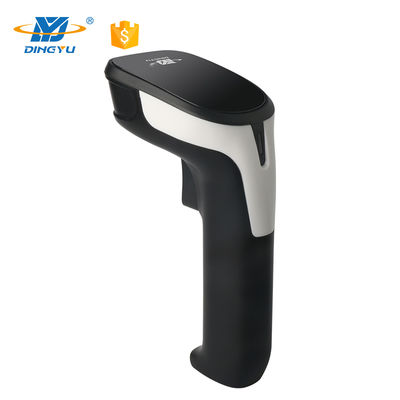

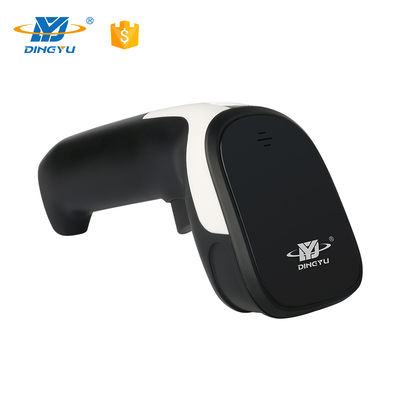

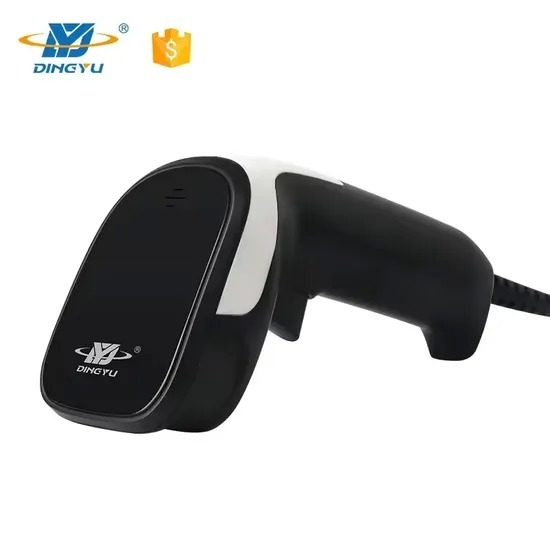

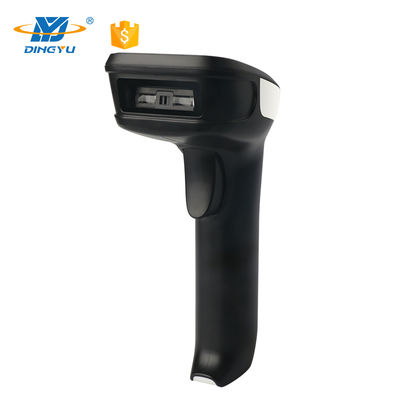

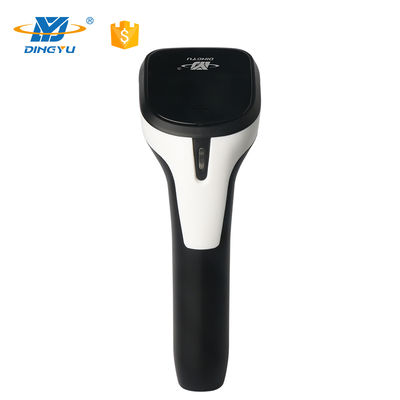

Product Images
DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface 3 DS5110 1D Barcode Scanner with 600mm Depth of Field and USB Interface 4
Frequently Asked Questions
Q1: How do you ensure the high quality of your barcode scanners?
DYscan: We are a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our professional QC team uses testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, ROHS certifications.
Q2: How do you perform quality control?
DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.
Q3: What is the warranty period for the barcode scanner?
DYscan: 12 months warranty.
Q4: How do you maintain stable performance?
DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.
Q5: Do you provide OEM or ODM services?
DYscan: We offer OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.
Q6: What are your company's strengths?
DYscan: We are a professional scanner manufacturer with specialized departments: R&D for new products, production for manufacturing and testing, and marketing/sales with customer service teams.
Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug-and-play functionality and work with Windows, Mac OS, iOS, Linux, UNIX, and Android without drivers.
