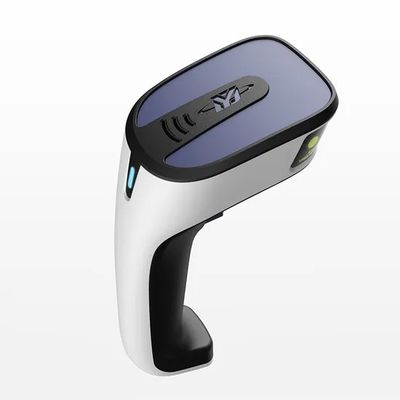

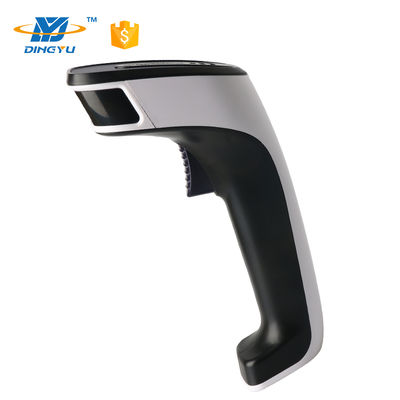

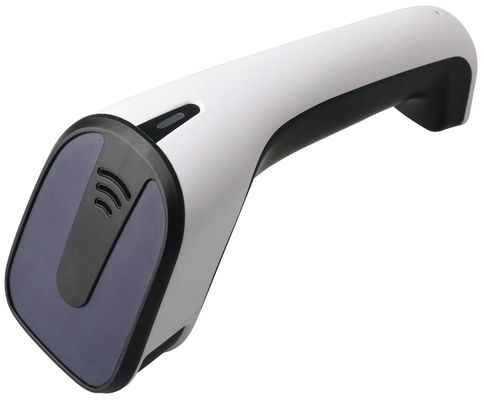

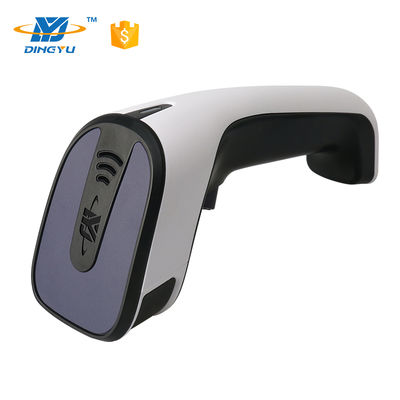

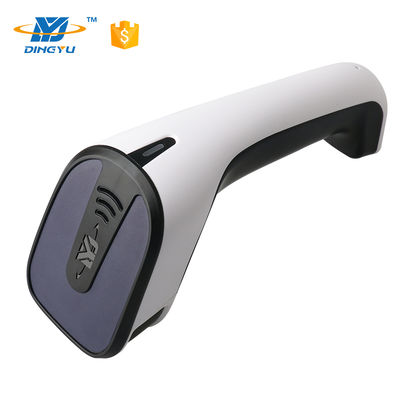

Name: High Speed 2D Barcode Scanner with 25cm/S Decoding Speed 55-350mm Depth of Field and Horizontal 40° Vertical 30° Visual Angle
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Home Products 2D Barcode Scanner

High Speed 2D Barcode Scanner with 25cm/S Decoding Speed 55-350mm Depth of Field and Horizontal 40° Vertical 30° Visual Angle

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Model NO.:	DS6600	Interface Type:	USB
Scan Speed:	25cm/S	Scan Element:	CMOS
Start Up Time:	4s	Decoding Speed:	25cm/S
Depth Of Field:	55-350mm	Scan Mode:	Trigger Mode Auto Sense Mode
Visual Angle:	Horizontal 40° Vertical 30°	Print Contrast:	25% PCS
Weight:	110g Without Cable	Dimension:	L180mm * W60mm * H80mm
Communication:	USB-Kbw USB-COM RS232	Cable Length:	1.5m
Resolution:	640×480 CMOS
Highlight:	25cm/S Decoding Speed 2D Barcode Scanner , 55-350mm Depth of Field USB Barcode Scanner , Horizontal 40° Vertical 30° Visual Angle Pharmacode Scanner

1D/2D Wired USB High Speed Scanning Pharmacode Aztec Barcode Scanner

Product Description

This high-performance 1D/2D wired USB barcode scanner features rapid scanning capabilities for both Pharmacode and Aztec barcodes. Designed for industrial and commercial applications, it delivers reliable scanning performance in various environments.

Technical Specifications

Parameter	Specification
Scan Type	CMOS
Light Source	White LED lighting, Red LED aiming (525nm wavelength)
CPU	ARM32-bit
Resolution	640×480 CMOS
Scanning Distance	20-550mm
Startup Time	4 seconds
Decoding Speed	25CM/S
Depth of Field	3mil:55~100mm, 13mil:55~350mm
Scan Mode	Trigger mode, Auto sense mode
Scan Angle	Roll:±360°, Pitch:±60°, Yaw:±70°
Visual Angle	Horizontal 40°× Vertical 30°
Print Contrast Signal	≥25% PCS
Ambient Light	Dark environment, indoor natural light

Supported Symbologies

1D Barcodes: Codabar, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. We maintain strict quality control with professional testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All products are CE, FCC, and ROHS certified.

Q2: What quality control measures do you implement?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipment.

Q3: What is the warranty period for your barcode scanners?

We provide a 12-month warranty for all our barcode scanners.

Q4: How do you maintain stable performance?

Our assembly line production process ensures consistency. Each product undergoes at least 4 quality tests before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development for specialized requirements.

Q6: What are your company's strengths?

As a professional scanner manufacturer, we have dedicated departments for R&D, production, marketing, and customer service, each led by experienced directors.

Q7: Do I need to install drivers for this scanner?

No drivers are required. Our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
