Name: Cord/Wired Handheld 2D Barcode Scanner with 300 scans/sec Speed 640*480 Resolution and 3mil Reading Ability for Retail Logistics Supermarket
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Home Products 2D Barcode Scanner

Cord/Wired Handheld 2D Barcode Scanner with 300 scans/sec Speed 640*480 Resolution and 3mil Reading Ability for Retail Logistics Supermarket

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Model NO.:	DS5220-2D	Interface Type:	USB
Scan Speed:	300 Scans/sec	Scan Element:	CMOS
Resolution:	640*480	Reading Ability:	3mil
Decoding Speed:	65cm/S	Depth Of Field:	20mm~530mm
Scan Mode:	Manual, Auto Sense, Continuous	Light Source:	Red Light LED 525±10nm
CPU:	32-bit	Field Of View:	Horizontal 40°× Vertical 30°
Weight:	≈159.6g (without Cable)	Dimension:	L68.4mm * W170.6mm * H87.6mm
Power Supply:	DC5V Input, Standby Current:50mA, Decoding Current:180mA
Highlight:	300 scans/sec 2D Barcode Scanner , 640*480 Resolution Handheld Barcode Scanner , 3mil Reading Ability QR Code Scanner

DS5220-2D Corded 2D Barcode Scanner

Professional-Grade Scanner for Retail, Logistics, and Industrial Applications

The DS5220-2D is a high-performance wired handheld barcode scanner featuring advanced CMOS image recognition technology. Designed for versatile use across multiple industries, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Features

Ergonomic design for comfortable extended use
High-speed decoding of all mainstream 1D & 2D barcodes
Powerful 32-bit processor with fast scanning capability (3mil resolution)
Multi-language and system compatibility
Dual interface options: USB and RS232
Ideal for supermarkets, warehouses, mobile payments, and chain stores

Technical Specifications

Performance Parameters

Scan Type	CMOS
Light Source	Red Light LED 525±10nm (aim), 5600K LED (Lighting)
CPU	32-bit
Resolution	640*480 (global exposure)
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	20mm~530mm
Scan Modes	Manual, Auto Sense, Continuous
Prompt Method	LED indicator, buzzer
Field of View	Horizontal 40° × Vertical 30°
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Supported Systems	Windows, Mac OS, IOS, Linux, Unix, Android

Physical Parameters

Weight	≈159.6g (without cable)
Dimensions	L68.4mm × W170.6mm × H87.6mm
Communication Mode	USB
Power Supply	DC5V input, Standby current:50mA, Decoding current:180mA

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m

Supported Barcode Symbologies

1D Barcodes	Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded, ISBT
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

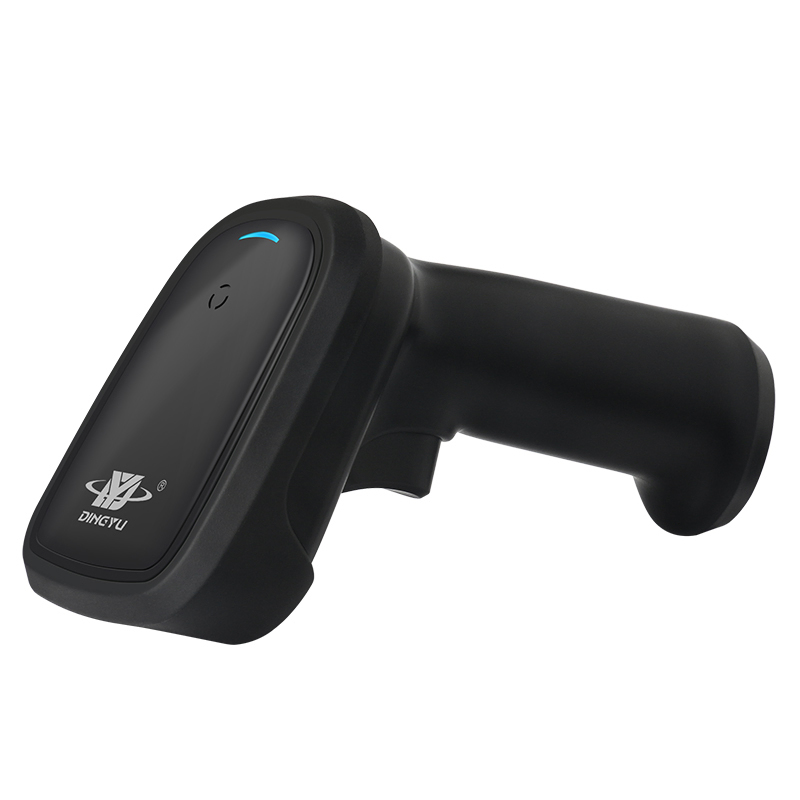

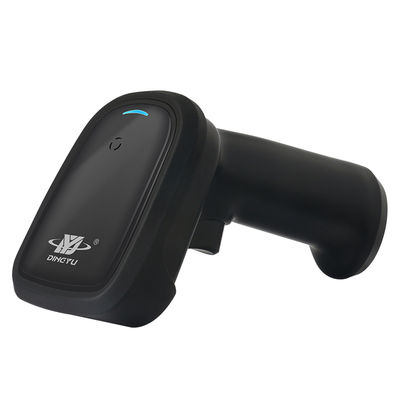

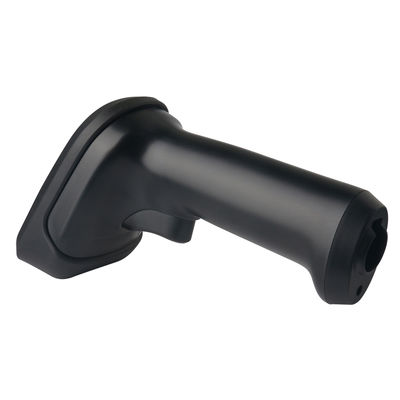

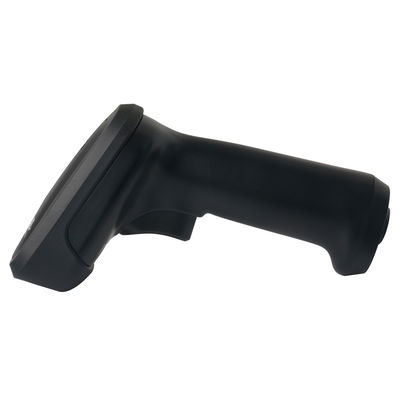

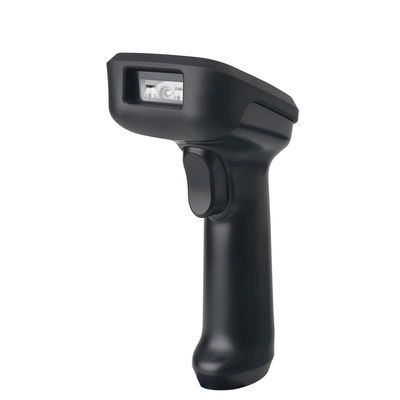

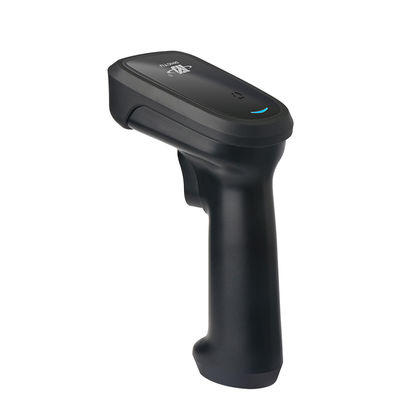

Product Images

Frequently Asked Questions

How do you ensure the high quality of your barcode scanners?

As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our scanners are CE, FCC, and ROHS certified.

What is your quality control process?

We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes thorough inspection before shipment.

What is the warranty period?

12 months warranty from date of purchase.

Do I need to install drivers?

No, our scanners support plug-and-play functionality with no driver installation required. Compatible with Windows, Mac OS, IOS, Linux, UNIX, and Android systems.
