Name: High-Performance Auto-Detection Corded 2D Barcode Scanner with 300 scans/sec and 150m Transmission Distance
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Home Products 2D Barcode Scanner

High-Performance Auto-Detection Corded 2D Barcode Scanner with 300 scans/sec and 150m Transmission Distance

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Model NO.:	DS5900-2D	Interface Type:	USB
Scan Speed:	300 Scans/sec	Scan Element:	CMOS
Resolution:	640*480	Decoding Speed:	65CM/S
Depth Of Field:	10mm~550mm	Scan Angle:	Roll±360°, Pitch±60°, Skew±55°
Print Contrast:	≥25%	Weight:	≈160g
Dimensions:	L175.5mm * W72.5mm * H102.5mm	Power Supply:	DC 5V@180mA(work)
Operating Temperature:	-20ºC To 55ºC	Storage Temperature:	-20ºC To 60ºC
Humidity:	5% To 95%(non-condensing)
Highlight:	300 scans/sec 2D Barcode Scanner , 150m Transmission Distance Barcode Scanner , Auto-Detection QR Code Reader

Auto-Detection Corded 2D QR Code Reader Barcode Scanner with Stand

Product Overview

The DS5900-2D is a high-performance wired barcode scanner featuring advanced CMOS image recognition technology. It efficiently reads barcodes from various surfaces including paper, products, and digital screens, making it ideal for multiple industrial applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D & 2D barcodes with ease
High-speed decoding capability (3mil resolution)
Supports multiple languages and operating systems
USB interface with 150m transmission range
Automatic reconnection when out of range
Wide application in retail, logistics, healthcare, and more

Technical Specifications

Performance

Scan Type	CMOS
Light Source	Red aim light, white fill light
CPU	32-bit
Resolution	640×480
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	10mm~550mm (varies by barcode type)
Scan Modes	Manual, Auto Sense, Continuous
Indicators	LED, Buzzer
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Print Contrast Signal	≥25%
Ambient Light	Dark environment to indoor natural light

Supported Symbologies

1D Barcodes	Codabar, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar variants
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Physical Parameters

Weight	≈160g (USB version)
Dimensions	175.5mm × 72.5mm × 102.5mm
Interface	USB
Power Supply	DC 5V@180mA (operating)
IP Rating	IP42
Supported Systems	Windows, Mac OS, iOS, Linux, Unix, Android

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Testing	30 minutes at 60ºC and -20ºC
Vibration Test	10H@125RPM

Included Accessories

Cable	USB for device connection and charging
Receiver	For data reception and transmission

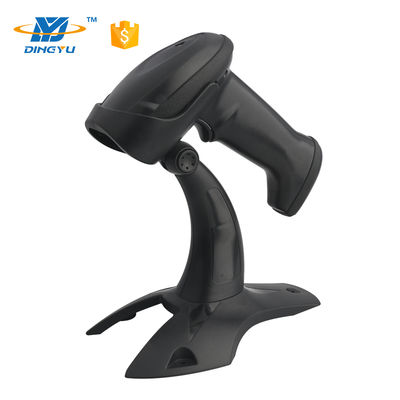

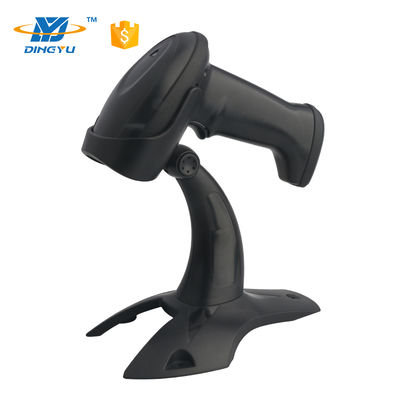

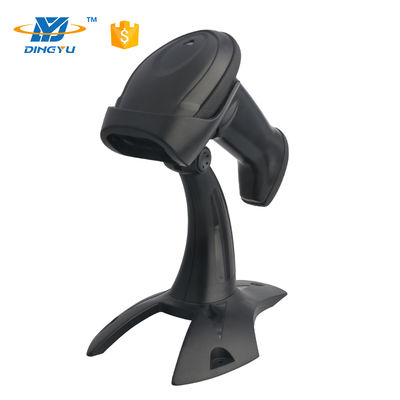

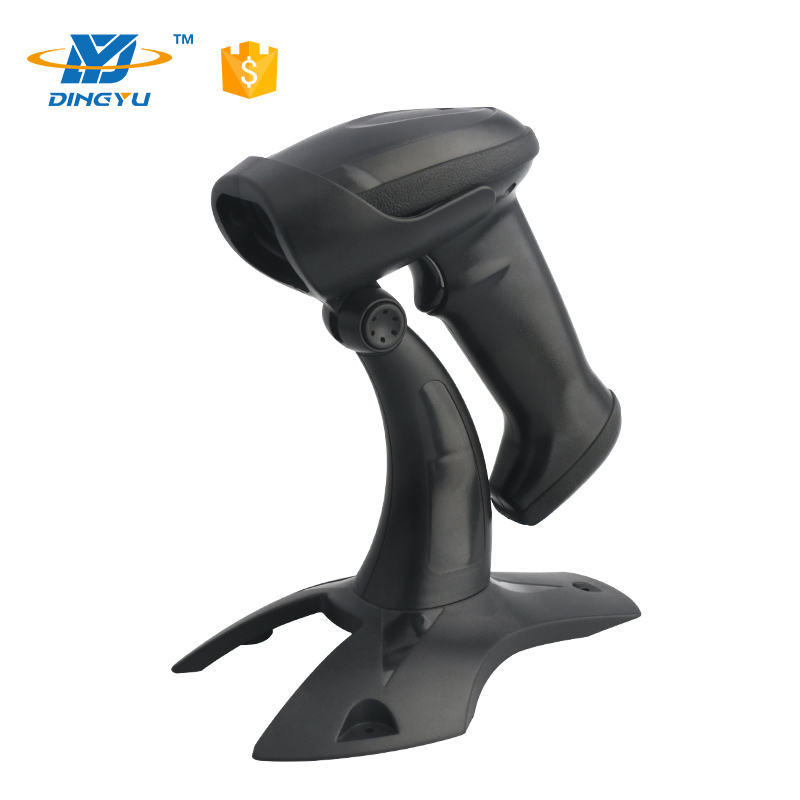

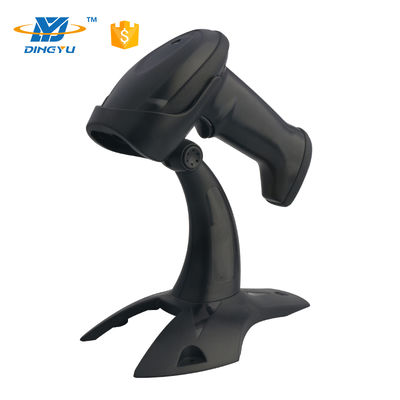

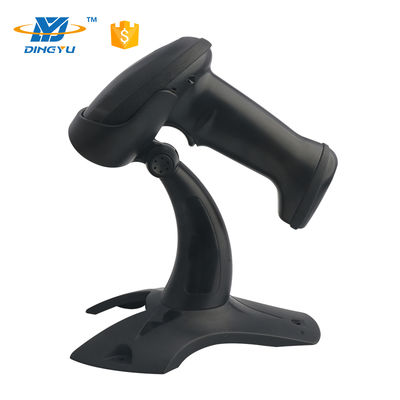

Product Images

Application Scenarios

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: As professional manufacturers with 18 years of experience, we maintain strict quality control with dedicated QC teams and specialized testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All products meet CE, FCC, and ROHS certifications.

Q2: What are your quality control procedures?

DYscan: We conduct rigorous testing including 1 million wire bend tests and 1 million button press tests. Every device undergoes comprehensive testing before shipment.

Q3: What is the warranty period?

DYscan: 12 months warranty.

Q4: How do you ensure stable performance?

DYscan: Our assembly line production process includes at least 4 quality checks before delivery to guarantee consistent performance.

Q5: Do you offer OEM/ODM services?

DYscan: We provide complete OEM services including custom branding, packaging, and documentation. Our technical team supports ODM development projects.

Q6: What are your company's strengths?

DYscan: We maintain specialized departments for R&D, production, and sales with dedicated leadership. This structure ensures focused expertise in product development, manufacturing quality, and customer service.

Q7: Are drivers required for operation?

DYscan: No drivers needed. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
