Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode

Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode

  • Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
  • Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
  • Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
  • Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
  • Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
  • Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Model NO.: DS6600B Interface Type: USB
Scan Speed: 25cm/S Scan Element: CMOS
Decoding Speed: 25cm/S Depth Of Field: 55-350mm
Scan Mode: Trigger Mode Auto Sense Mode Visual Angle: Horizontal 40° Vertical 30°
Print Contrast: 25% PCS Dimension: L180mm * W60mm * H80mm
Battery Capacity: 2200mAh Working Time: 16hours
Resolution: 4mil/0.1mm(PCS90%,Code 39) Weight: 160g
Light Source: White LED Aiming; Red LED, 525nm
Highlight:

CMOS Scan Element 2D Barcode Scanner

,

USB Interface Handheld Barcode Scanner

,

Trigger Mode Auto Sense Mode Wireless Barcode Scanner

Handheld 1D/2D Self-Sensing Wireless Barcode Scanner

Professional-grade wireless barcode scanner with 1D and 2D scanning capabilities, ideal for retail and industrial applications. Features 2.4GHz wireless connectivity and advanced scanning technology for reliable performance.

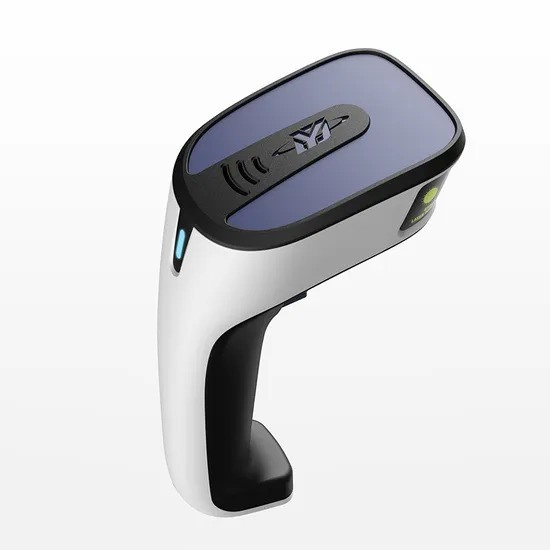

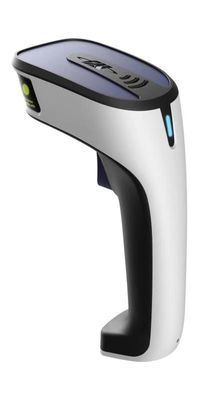

Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode 0 Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode 1
Technical Specifications
Scan Type CMOS
Light Source White LED lighting; Red LED aiming (525nm wavelength)
CPU ARM 32-bit
Resolution 640×480 CMOS
Scanning Distance 20-550mm
Startup Time 4 seconds
Decoding Speed 25CM/S
Depth of Field 3mil:55~100mm, 13mil:55~350mm
Scan Mode Trigger mode, Auto sense mode
Scan Angle Roll:±360°, Pitch:±60°, Yaw:±70°
Visual Angle Horizontal 40° × Vertical 30°
Print Contrast Signal ≥25% PCS
Ambient Light Dark environment, indoor natural light
Supported Symbologies
  • 1D Codes: Codabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar (all variants), ISBT
  • 2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Product Images

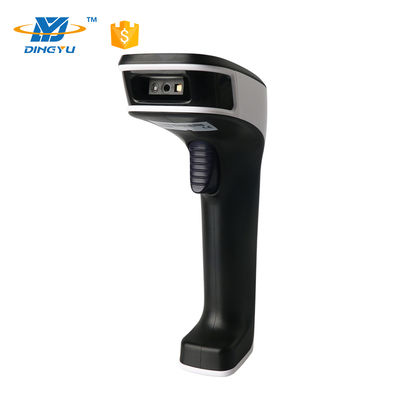

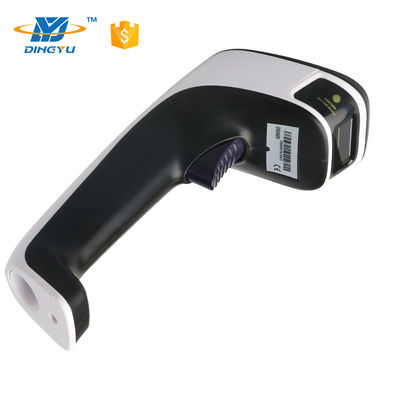

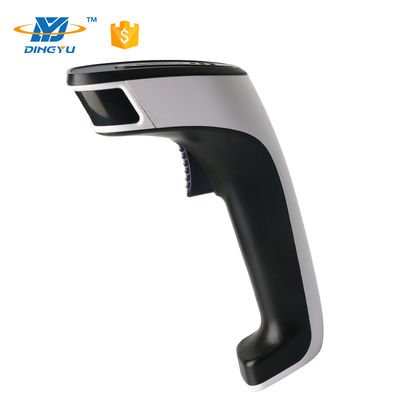

Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode 2 Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode 3 Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode 4
Packaging

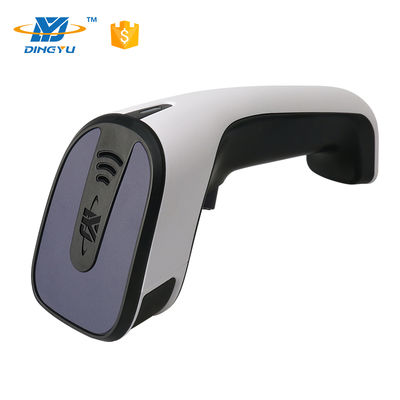

Handheld 2D Barcode Scanner with CMOS Scan Element USB Interface and Trigger Mode Auto Sense Mode 5
Frequently Asked Questions
Q1: How do you ensure high quality barcode scanners?
DYscan is a professional manufacturer with 18 years of experience. We have a dedicated QC team and testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our scanners are CE, FCC, and ROHS certified.
Q2: What quality control measures do you have?
We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipping.
Q3: What is the warranty period?
12 months warranty.
Q4: How do you ensure stable performance?
We use flow line production with each product tested at least 4 times before delivery.
Q5: Do you offer OEM/ODM services?
Yes, we provide OEM services including custom logos, packaging, and manuals. Our technical team supports ODM development.
Q6: What are your company strengths?
We have specialized departments for R&D, production, and sales/marketing, with dedicated directors overseeing each area.
Q7: Are drivers required?
No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
