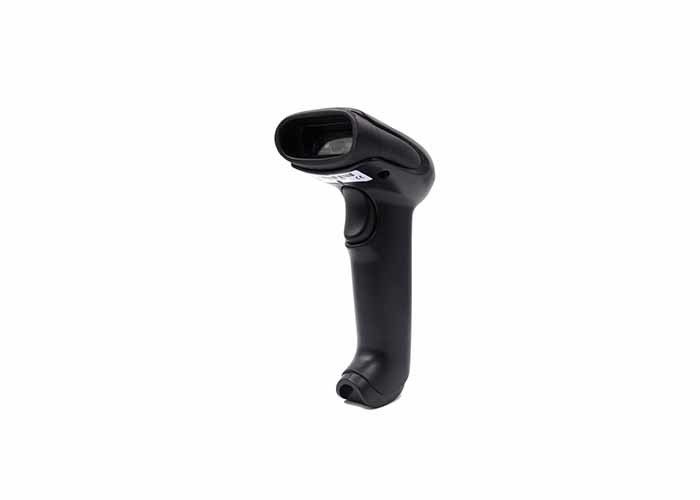

Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G

Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G

  • Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G
  • Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G
  • Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G
  • Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G
Android Wireless CCD Barcode Scanner , 32 Bit CPU Mini Usb QR Code Scanner DS5100G
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DS5100G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 220mm L * 100mm W * H80mm
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Communication Method: Wireless 2.4GHz,USB Power Supply: DC 5V@100mA
CPU: 32-bit Decoding Speed: 300 Times/s
Battery Capacity: 1600mAh Battery Charging Time: About 6.5 Hours
High Light:

usb handheld scanner

,

barcode scanner gun

        china CCD portable android wireless mini qr code usb barcode scanner



Product Description



DS5100G is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.



Features

☆ Ergonomic design, comfortable using.

☆ Read all mainstream 1D barcodes in the market easily. (3mil)

☆ Interface: USB, wireless 2.4G.

☆ Dual mode: wired, wireless, Ultra-low power consumption, continuous working time 20h.

☆Transmission distance 200m, intelligent automatic connection when it’s beyond range, not manual setting.

☆Widely used in supermarket, warehouse, mobile payment, chain stores.



Application

▅ Supermarket ▅ Warehouse

▅ Mobile payment ▅ Retail chain

▅ Courier ▅ Health care



Physical Parameter
Weight ≈160g(without cable)
Dimension L150mm * W70mm * H95mm
Interface Type USB
Communication method wireless 2.4GHz,USB
Power supply DC 5V@100mA(work)
Performance
Scan type Linear CCD
Light source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.1mm(PCS90%,Code 39)
Decoding speed 300 times/s
Depth of field 10mm-600mm
Scan mode Manual, Continuous, Auto sense
Scan angle Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Indoor natural light
Wireless communication mode Synchronization , asynchronous , storage
Wireless transmission distance 2.4GHz,200meters(Open distance)
Storage 512K(over 5000Product code)
Battery capacity 1600mAh
Battery charging time About 6.5 hours
Continuous working time ≥20hours
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature 0℃ to 50℃
Storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Transport vibration Test 10H@125RPM
Depth of field
3MIL 60-100mm (PCS90%,Code 39)
13MIL 10-320mm (PCS90%,EAN-13)
20MIL 10-430mm (PCS90%,Code 39)
40MIL 110-600mm (PCS90%,Code 39)
Accessories list
Data cable(charging cable) USB, connect the scanner to a host device and charging.
Receiver Used to receive and transmit scanner data.



FAQ


1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.


2. What's the payment way ?
A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.


3. How about your product warranty ?
A: Our officially promised warranty time is 1 years after delivery.


4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
With well packed carton by foam and plastic film to advoid goods damage.


5. where I can get the support ?
A: We support you technically 24h
