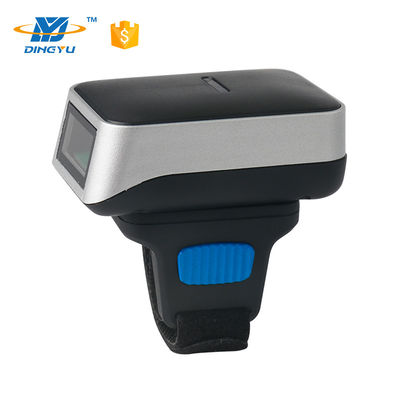

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D

Product Details:

Place of Origin:	China
Brand Name:	Dingyu/ DY SCAN
Certification:	CE, ROHS, FCC, IEC, FDA
Model Number:	DI9010 -2D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	L135mmW110mmH55mm
Delivery Time:	3-7 days
Payment Terms:	T/T, Paypal, Alibaba
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Communication Way:	USB,Wireless 2.4G,Wireless Bluetooth 4.2	Power Supply:	DC 5V@160mA(work)
Scan Type:	CMOS	CPU:	32bit
Resolution:	≥3mil/0.076mm(PCS90%,Code 39)	Depth Of Field:	3mil：55~100mm，13mil：55~350mm
Scan Mode:	Manual,Auto Sense	Scan Angle:	Roll±360°, Pitch±60°, Skew±70°（PCS90%，Code 39，10mil/0.25mm）
Dimension:	L51.5mm * W35mm * H45mm	Weight:	≈35g（without Cable）
Interface Type:	Type C
High Light:	cordless barcode reader , wireless bluetooth barcode scanner

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D 0

Feature

Wearable design, widely used in warehouse, express.
Read all mainstream 1D 2D barcodes in the market easily. (3mil)
100,000 data storage capacity.
Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
Mode: Bluetooth(HID,SPP,BLE), wired, connected with PC, mobile phone easily.

Function

Scan Type	CMOS
Light Source	Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm
CPU	32-bit
Start time	750ms
Resolution	640*480
Reading precision	1D:≥3mil,2D:≥8.7mil @PCS90%
Decoding speed	25CM/S
Visual angle	Horizontal 40°× Vertical 30°
Depth of field	3mil:55~100mm,13mil:55~350mm
Scan Mode	Trigger mode,Auto sense mode
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90% Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
Print Contrast Signal	≥25%
Ambient Light	70000lux
Wireless communication mode	Synchronization , storage
Wireless transmission distance	Bluetooth 30 m, Wireless 2.4G 150m(Open distance)
Storage	16Mb(over 100,000 barcodes)
Battery capacity	360mAh
Battery charging time	About 1.5 h
Continuous working time	≥3h
Symbologies	1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec

Weight	≈35g(without cable)
Dimension	L51.5mm * W35mm * H45mm
Interface Type	Type C
Power Supply	DC5V, standby current:47mA,Decoded average current:180mA

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D 3

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D 4

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D 5

OEM 32 Bit CMOS Wireless QR Code Scanner Mini LED 2d Ring Type Barcode Scanner DI9010-2D 6

FAQ

Q:What shipping methods do you provide and how long can I get the goods?
A:DHL / UPS / TNT / FEDEX as requested, 3-6 days (it varies from country to country)

Q:How about after-sale service?
A:1 year warranty on all products, warranty period starts from the date of purchase

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, please contact us for more details.

Q:Do you provide sample?
A:Yes, sample is available.

Q:What about lead time?
A:Sample, 1-2 days
Bulk: 3-5 days (100-300pcs), 5-7 days(300-500pcs), 7-10 days(500-1000pcs)

Q:Where can I download driver since my pc has no CD disk?
A:Please check our website: www.nyear.com or contact with us.
