| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DE2120 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Decoding Speed: | 25cm/s | Depth Of Field: | 25-400mm |
|---|---|---|---|
| Interface Type: | USB，TTL | Scan Type: | CMOS |
| Color: | Black | Dimension: | L 21.2 * W 15.3* H 11.6mm |
| Scan Mode: | Manual ,Continuous, Auto Sense, Command Control | Resolution: | 4mil |
| Print Contrast Signal: | ≥25% | Ambient Light: | Dark Environment, Indoor Natural Light |
| High Light: | barcode scanner oem module,barcode reader module |
||

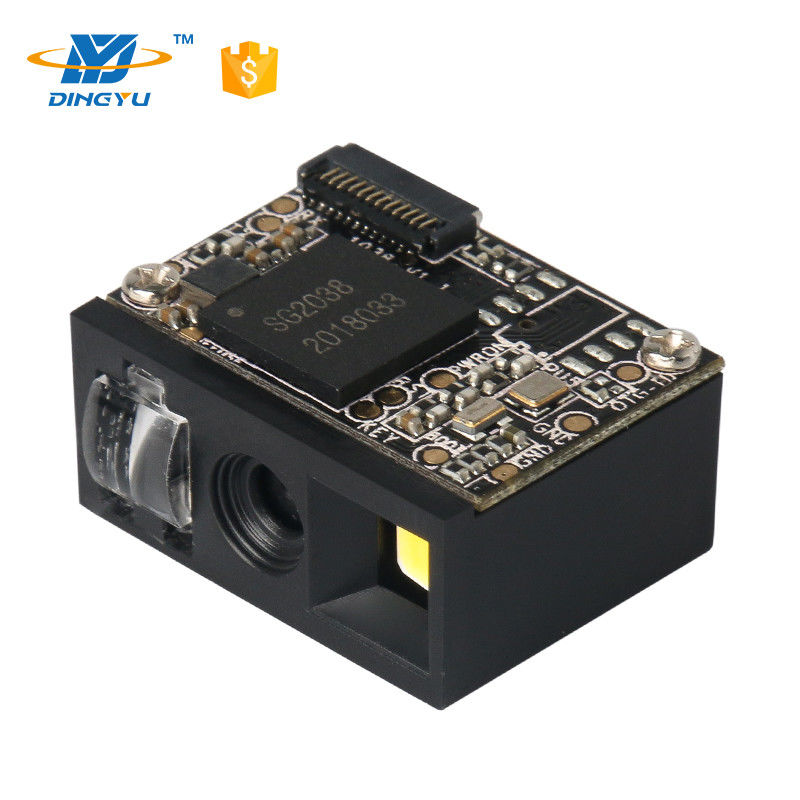

Low Cost Raspberry Pi 2D CMOS OEM Barcode Scanner Module for Reading EAN/JAN/UPC
Product Description
DE2120 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.
It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.
Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.
Features
☆ Mini size, widely used in wireless machine, self-service terminal.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ Support USB barcode information transmission. ( languages customization)
☆ High brightness, dark environment scanning, low power consumption.
☆ Interface: USB, TTL.
☆ Support multiple systems and languages, secondary development.
Application
▅Mobile coupons, tickets ▅ Microcontroller development
▅ Medical research ▅ Mobile payment barcode scanning
▅ Lottery machines ▅ Self-service terminals
▅ Queuing calling equipment ▅ Self-service vending machines
▅ Mobile coupons, tickets
Parameter
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Reading precision | ≥4mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 25CM/S |
| Depth of field | 25mm-400mm |
| Scan Mode | Manual ,Continuous, Auto Sense, command control |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±45° | |
| Roll: ±360° | |
| Skew: ±40° | |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Strande 2 of 5, Codabar(NW-7),MSI Plessey,GS1 Databar(RSS),China Post,etc. 2D: QR Code, Data Matrix,PDF417,Micro PDF 417, Aztec, etc. |
| Weight | <4g |
| Dimension | L 21.2 * W 15.3* H 11.6mm |
| Communication Mode | USB(USB-KBW,USB-COM),TTL |
| Interface Type | FFC 12PIN Pitch 0.5 |
| Power Supply | DC 3.3V <190mA(Work) |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
