Compact Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and 3.5g Weight for Reliable Scanning

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10

Contact Now

Detailed Product Description

Model NO.:	DE2290H	Interface Type:	USB
Scan Speed:	35cm/S	Scan Element:	CMOS
Resolution:	3mil/0.076mm	Image Sensor:	640*480
Scan Mode:	Auto Scan, Continuous	Print Contrast:	20%
Dimension:	21.3mm L 15.50mm W 11.50mm H	Field Of View:	41° * 31°
Scan Type:	CMOS,Global Shutter	FFC Cable:	5cm
Drop Height:	1.2m	Weight:	3.5g
Depth Of Field:	40-530mm
Highlight:	1 Year Warranty Barcode Scan Engine , 1.2m Drop Height Barcode Scanner Module , 3.5g Weight Embedded Barcode Scanner

Embedded 1D/2D Barcode Scanning Engine CMOS Intelligent Identification Module

OEM Small High Sensitive Engine 1D/2D CMOS USB TTL Barcode Scanner Module

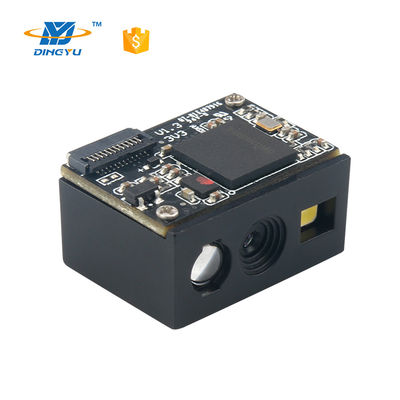

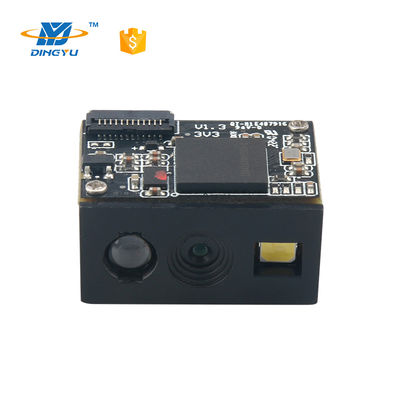

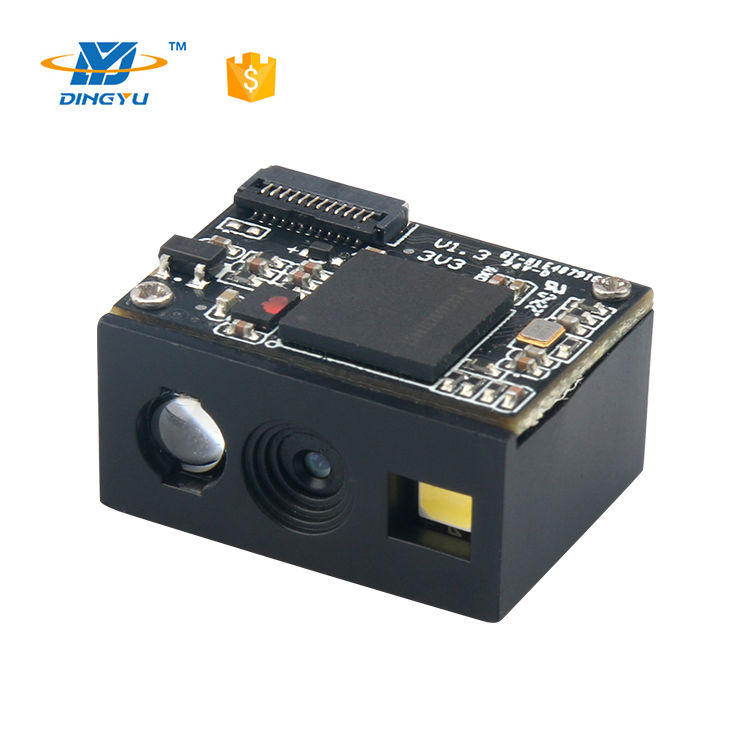

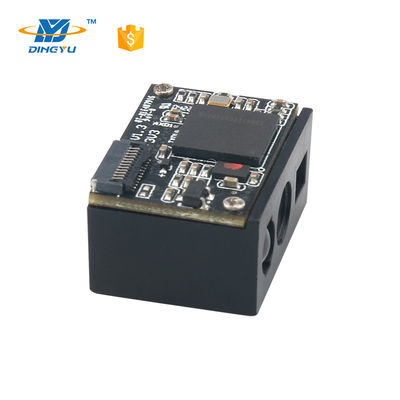

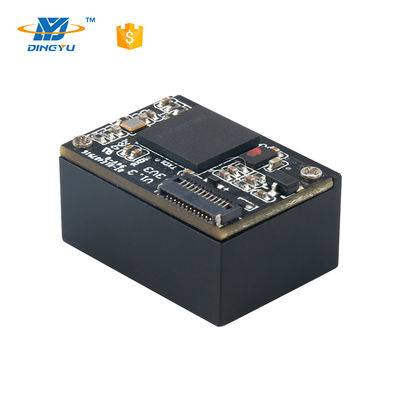

The DE2290H is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

With excellent reading performance, it can easily read barcodes on various media including paper, merchandise, and digital screens.

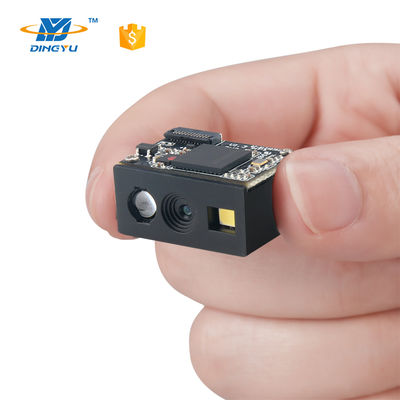

The integrated compact design allows for easy installation in a wide range of equipment. Widely used in self-service machines, price checking systems, lockers, and other industrial applications.

Product Specifications

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of field	40mm~530mm (Different barcode range)
Decoding speed	35CM/S
Scan Mode	Manual, Continuous, Auto Sense, Command control
Prompt method	LED indicator light, buzzer (external circuit)
Field of view	41° × 31°
Scan angle	Roll: ±360°, Pitch: ±60°, Skew: ±55° (Test Conditions: CODE39, 10mil/0.25mm, PCS90%)
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light

Supported Symbologies

1D Barcodes:

UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5 (Straight 2 of 5), Standard 2 of 5 (IATA 2 of 5), Codabar (NW-7), MSI, GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban, GS1 Composite

2D Barcodes:

QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code

Physical Specifications
