Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function

Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function

  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 20
Contact Now
Detailed Product Description
Model NO.: DE2390 Interface Type: USB
Scan Speed: 65cm/S Scan Element: CMOS
Resolution: 3mil/0.076mm Image Sensor: 1280*800
Scan Mode: Auto Scan, Continuous Print Contrast: 20%
Dimension: 21.5mm L* 15.9mm W * 11.30mm H Weight: 3.8g
FFC Cable: 5cm Drop Height: 1.2m
Depth Of Field: 50mm~750mm Light Source: White LED, Red LED (525nm)
Power Input: 3.3V, Standby Current:95mA, Decoded Average Current:200mA
Highlight:

1D 2D Barcode Scanner Module

,

OCR Passport Barcode Scanner Module

,

Auto Scan Barcode Scanner Module

Small Embedded 1D/2D Barcode Reader with OCR Functionality

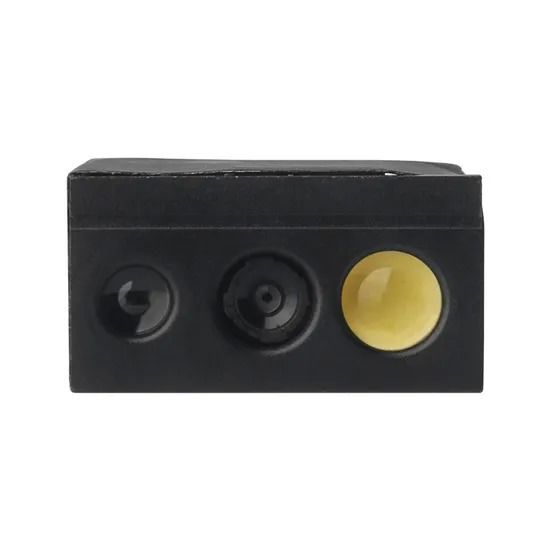

Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 0

The DE2390 is a high-performance embedded 2D barcode module featuring advanced CMOS image recognition technology. With its 1 million pixel global camera, it delivers excellent reading performance for both paper and screen-based barcodes. The module includes OCR functionality for reading ID and passport characters.

Key Features
  • Compact dimensions: 21.5mm × 15.9mm × 11.30mm
  • High-resolution 1280×800 CMOS sensor
  • ARM32-bit processor for fast decoding
  • Supports both 1D and 2D barcode symbologies
  • OCR capability for ID and passport reading
  • Multiple scan modes including trigger and auto-scan
  • Wide operating temperature range (-20°C to 50°C)
Technical Specifications
Parameter Specification
Interface USB, USB-com (requires driver), TTL
Light Source White LED lighting, Red LED aiming (525nm)
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 50mm-750mm (varies by barcode type)
Reading Angle Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Power Input 3.3V (Standby: 95mA, Decoding: 200mA avg)
Supported Symbologies

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more

2D Barcodes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

Environmental Specifications

Operating Temperature: -20°C to 50°C

Storage Temperature: -40°C to 60°C

Humidity: 5% to 95% (non-condensing)

Product Images

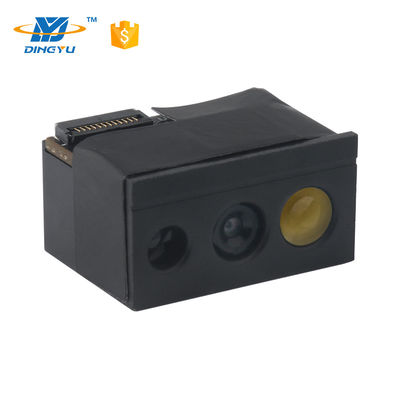

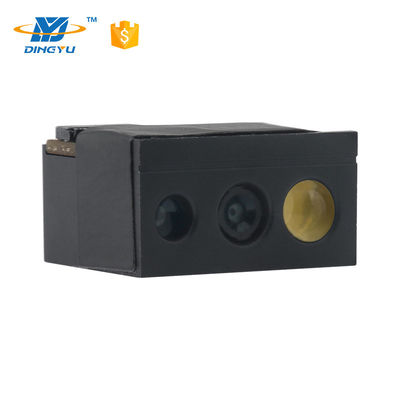

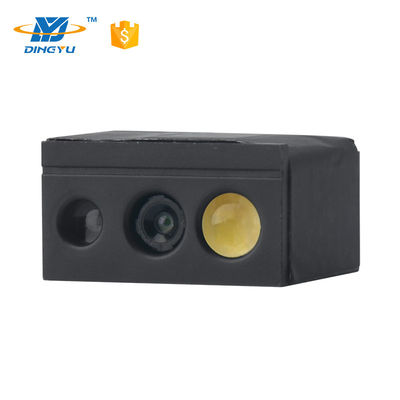

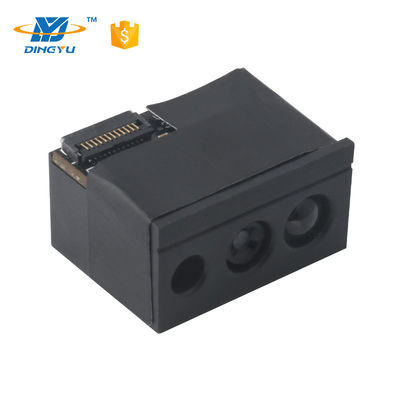

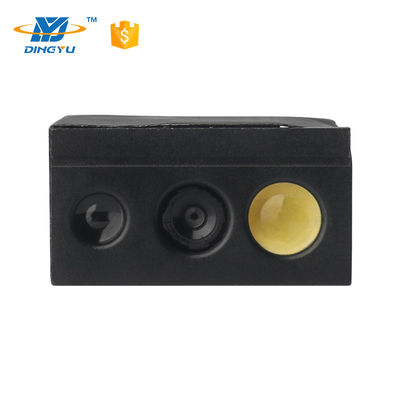

Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 1 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 2 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 3 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 4 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 5
Packaging & Shipping
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 6
Company Profile
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 7
Certifications
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 8
Exhibition
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 9
