Mini QR PDF417 1D 2D Scan Engine For Pda GC002 Oem 2d Barcode Module

Mini QR PDF417 1D 2D Scan Engine For Pda GC002 Oem 2d Barcode Module

  • Mini QR PDF417 1D 2D Scan Engine For Pda GC002 Oem 2d Barcode Module
  • Mini QR PDF417 1D 2D Scan Engine For Pda GC002 Oem 2d Barcode Module
Mini QR PDF417 1D 2D Scan Engine For Pda GC002 Oem 2d Barcode Module
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DE2100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 188mm L * 95mm W * 40mm H
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Weight: ≈4g Dimension: (L)12.5mm * (W)28.0mm * (H)1
Interface Type: FFC 12PIN Pitch 0.5 Communication Mode: USB(USB-KBW,USB-COM),TTL
Power Supply: DC 3.3V@120mA(work) Scan Type: CMOS
High Light:

2d barcode scan engine

,

2d barcode module

Portable barcode scanner mini QR PDF417 1D 2D barcode scanner modul used in pda GC002

Product Description



DC 3.3V 120mA 2D small barcode scan engine

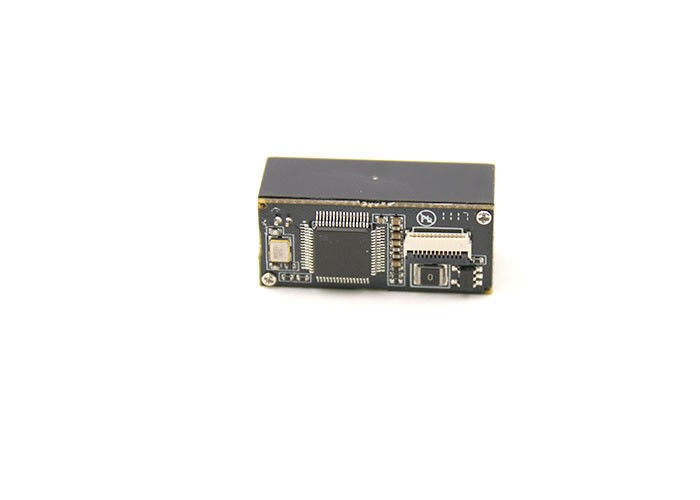

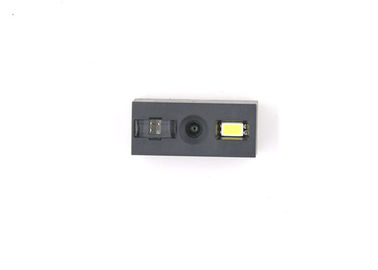

DE2100 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system. It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.


Packaging & Delivery

Packaging Details Single package size:188mm L * 95mm W * 40mm H
Delivery Time 7days



Physical Parameter


Weight ≈4g
Dimension (L)12.5mm * (W)28.0mm * (H)1
Interface Type FFC 12PIN Pitch 0.5
2.0mm
Communication Mode USB(USB-KBW,USB-COM),TTL
Power Supply DC 3.3V@120mA(work)
Performance
Scan Type CMOS
Light Source Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)
CPU 32-bit
Resolution 640*480
Resolution ≥4mil/0.1mm(PCS90%,Code 39)
Scan Tolerance 10CM/S
Depth of field 30mm-500mm
Scan Mode Manual,Continuous, Auto Sense
Scan Angle Roll360°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal ≥25%
Ambient Light Dark environment, indoor natural light
Symbologies 1D:UPC-A,UPC-E,EAN-8,EAN-13, Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Codabar(NW-7),MSI, etc.
2D: QR Code,PDF417,Data Matrix,etc
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.2 m
Transport vibration Test 10H@125RPM
Depth of field
4MIL 50-80mm (PCS90%,Code 39)
13MIL 60-230mm (PCS90%,EAN-13)
20MIL 70-280mm (PCS90%,Code 39)
40MIL 150-500mm (PCS90%,Code 39)
20MIL 30-230mm (PCS90%,QR Code)
Accessories List
Cable(Optional) USB Cable, used to connect the DE2100 to a host device.
RS232 Cable, used to connect the DE2100 to a host device, with USB supply cable.
Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).



Features

☆ Simple structure, can be used in various types of mechanical equipment.

☆ Read all the mainstream 1D 2D codes in the market easily.

☆ Support interfaces: USB, TTL.

☆ Support multiple systems and languages.

☆ Support secondary development.

☆ Support USB barcode information transmission. ( languages customization)

☆ High brightness, support dark environment scanning.

☆ Auto sense scanning, low power consumption.
