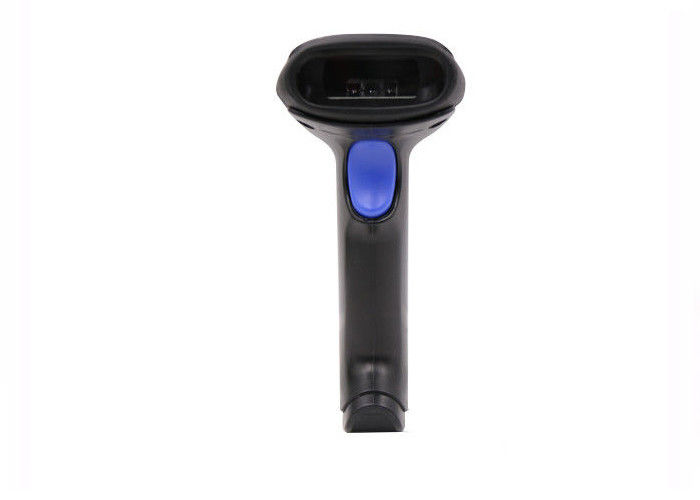

Portable Bluetooth Wireless Barcode Scanner 2M Storage Compact Size DS5100B

Portable Bluetooth Wireless Barcode Scanner 2M Storage Compact Size DS5100B

  • Portable Bluetooth Wireless Barcode Scanner  2M Storage Compact Size DS5100B
  • Portable Bluetooth Wireless Barcode Scanner  2M Storage Compact Size DS5100B
  • Portable Bluetooth Wireless Barcode Scanner  2M Storage Compact Size DS5100B
  • Portable Bluetooth Wireless Barcode Scanner  2M Storage Compact Size DS5100B
Portable Bluetooth Wireless Barcode Scanner  2M Storage Compact Size DS5100B
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DS5100B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 220mm L * 100mm W * H80mm
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Battery Capacity: 1600mAh CPU: 32-bit
Resolution: 2500 Wireless Transmission Distance: Bluetooth 4.2 50m Wireless2.4G 150m
Storage: 2M Depth Of Field: 10mm-600mm
Highlight:

cmos barcode scanner

,

barcode scanner gun

DS5100B 2M Storage bluetooth wireless barcode scanner Handheld 1D Barcode Scanner



Product Description

DS5100B is a high-performance 1D bluetooth and wireless 2.4G barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.



Features

1 Light and Compact, Comfortable work

2 Good Performance, Accurate Barcode Decoding

3 Bluetooth(HID,SPP,BLE),Android/IOS/Windows Devices Compatible

4 Impact-Proof Design To Withstand Multiple Drops to Concrete From 1.5M



Application

▅ Supermarket             ▅ Warehouse

▅ Mobile payment         ▅ Retail chain

▅ Courier                      ▅ Health care



Physical Parameter
Weight 160g(without cable)
Dimension L150mm * W70mm * H95mm
Communication method Wireless 2.4G,bluetooth,USB
Power supply DC 5V@100mA(work)
Performance
Scan type Linear CCD
Light source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.1mm(PCS90%,Code 39)
Decoding speed 300 times/s
Depth of field 10mm-600mm
Scan mode Manual, Continuous, Auto sense
Scan angle Row±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Dark,Indoor natural light
Wireless communication mode Synchronization , asynchronous , storage
Wireless transmission distance Bluetooth 4.2 50m Wireless2.4G 150m
Storage 2M(over 100000 barcodes)
Battery capacity 1600mAh
Battery charging time 6.5 h
Continuous working time ≥20h
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature 0℃ to 50℃
Storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Transport vibration Test 10H@125RPM
Depth of field
3MIL 60-100mm (PCS90%,Code 39)
13MIL 10-320mm (PCS90%, EAN-13)
20MIL 10-430mm (PCS90%,Code 39)
40MIL 110-600mm (PCS90%,Code 39)
Accessories list
Data cable(charging cable) USB, connect the scanner to a host device and charging.
Receiver Used to receive and transmit scanner data.
