| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5200N |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 220mm L * 100mm W * 80mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 165g | Dimension: | L175mm * W72mm * H100mm |
|---|---|---|---|
| Interface Type: | USB | Power Supply: | DC 5V@100mA |
| Scan Type: | Linear CCD | CPU: | 32-bit |
| Resolution: | ≥3mil | Depth Of Field: | 10mm-600mm |
| High Light: | cmos barcode scanner,usb handheld scanner |
||

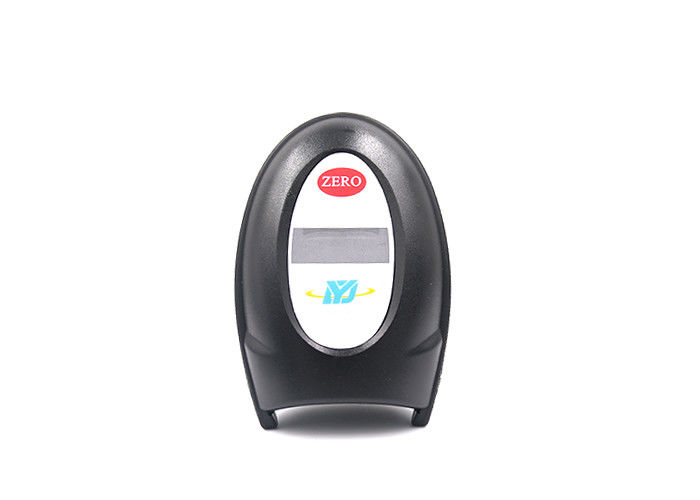

Handheld 1D Wired Barcode Scanner USB Supermarket / Warehouse CCD barcode Reader
Product Description
DS5200N is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Record barcode numbers real-timely and clean up immediately. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using.
☆ Read all the mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Interface: USB.
☆ Support recording barcode numbers real-timely and clean up immediately.
☆ Widely used in supermarket, inventory management.
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | ≈165g(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@100mA(work) |
| Performance | |
| Scan type | Linear CCD |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan mode | Manual, Continuous,Auto sense |
| Scan angle | Roll±30°, Pitch±50°, Skew±50°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.8m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 60-100mm (PCS90%,Code 39) |
| 13MIL | 10-320mm (PCS90%,EAN-13) |
| 20MIL | 10-430mm (PCS90%,Code 39) |
| 40MIL | 110-600mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device. |
