| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5201 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 220mm L * 100mm W * 80mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 165g | Dimension: | L175mm * W72mm * H100mm |
|---|---|---|---|
| Power Supply: | DC 5V@100mA | CPU: | 32-bit |
| Resolution: | ≥3mil | Decoding Speed: | 300 Times/s |
| Depth Of Field: | 10mm-600mm | Perating Temperature: | -20℃ To 50℃ |
| High Light: | usb handheld scanner,barcode scanner gun |
||

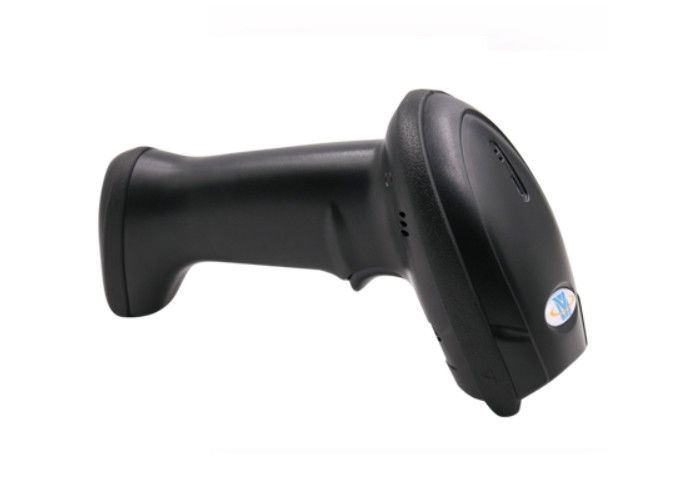

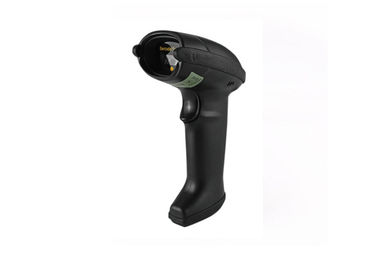

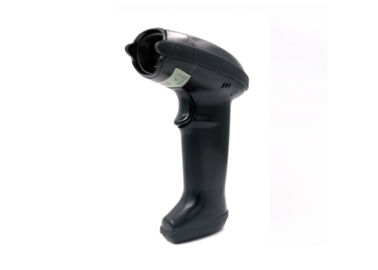

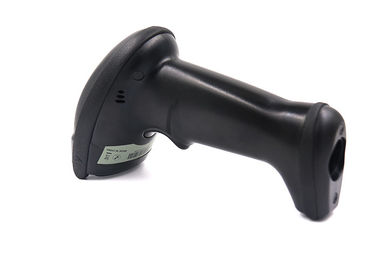

USB 1d Handheld barcode scanner Chain Store/Supermarket barcode Reader 32-bit CPU
Product Description
DS5201 is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic Industrial design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ High definition Blue ray lighting, anti-glare.
☆ Interface: USB.
☆ Widely used in supermarket, inventory management.
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | ≈165g(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@100mA(work) |
| Performance | |
| Scan type | Linear CCD |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | ,Dark,Indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,ITF-6, ITF-14, Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.8m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 60-100mm (PCS90%,Code 39) |
| 13MIL | 10-320mm (PCS90%,EAN-13) |
| 20MIL | 10-430mm (PCS90%,Code 39) |
| 40MIL | 110-600mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device |
