| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5320B |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Paper carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Product Name: | 1D Laser Barcode Scanner | Scan Type: | Laser |
|---|---|---|---|
| Dimension: | 180(W)×70(D)×90.5(H) MM | Interface Type: | USB, Bluetooth, Wireless 2.4G |
| Power Supply: | 5 VDC±5%,160mA | CPU: | 32Bit |
| Decoding Speed: | 300scans/sec | Depth Of Field: | 45mm-180mm |
| Resolution: | ≥4mil | Scan Mode: | Manual,Continuous |
| Storage: | 30000 Barcodes | Battery: | 1200MHA |
| Working Time: | >20h | ||
| Highlight: | laser qr code scanner,laser wireless barcode scanner |
||
1D Supermarket Handheld Wireless Bluetooth Laser Barcode Scanner
Product introduction:
DS5320B is a high-performance 1D wireless 2.4G and bluetooth barcode scanner with leading laser recognition technology. It can easily read the paper, goods, and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features:
☆ Ergonomic design, comfortable using.
☆ Read most of 1D barcodes easily.
☆ High-performance processor, high decoding speed.
☆ Support many languages and systems.
☆ Interface: USB.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.

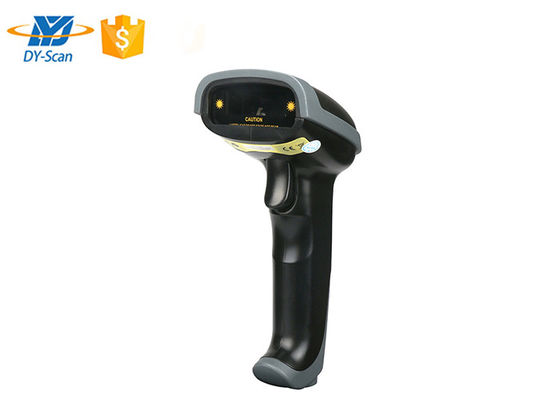

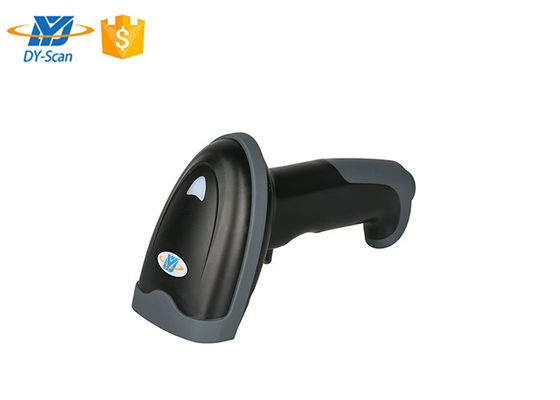

Product Picture:
| Physical Parameter | |
| Weight | 175g |
| Dimension | 180(W)×70(D)×90.5(H) MM |
| Interface Type | USB |
| Communication method | USB, Wireless2.4G, Bluetooth 4.0 |
| Power supply | 5 VDC±5%,160mA (Working) |
| Performance | |
| Scan type | Laser |
| Light source | 650NM visible laser diode |
| CPU | 32Bit |
| Decoding speed | 300scans/sec |
| Resolution | ≥4mil |
| Depth of field | 45mm-180mm |
| Scan mode | Manual, Continuous |
| Scan angle | pitch±50°,tilt35°,skew±55° |
| Storage | 30000 barcodes |
| Transmission distance | Straight line 80 meters |
| Battery | 1200MHA |
| Working time | >20h |
| Symbol contrast | ≥25% |
| Symbologies |
EAN13, EAN8, UPCA, UPCE, Code 128, Code 39, Codabar, UCC/EAN 128,RSS, Interleaved 25, ITF14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93 |
| Environment parameter | |
| Operating temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+70℃ |
| Humidity | 5%~95% |
| Drop Height | 1.5m |
| Protection level | IP54 |
| Depth of field | |
| EAN-13(13mil) | 55-150mm |
| Code 39(5mil) | 45-80mm |
| Code 39(15mil) | 25-180mm |
| Accessories list | |
| Data cable | USB data cable, Dongle. |
1. Are you factory or trading company? We are factory where is located in Dongguan China.
2. OEM/ODM is ok? yes, we have own factory and strong R&D to support OEM/ODM.
3. Payment Terms: T/T, western Union, paypal etc.
4. MOQ: 1PC
5. Delivery time: Sample will be ship in 3~5 days after receipt payment
6. warranty: 12 months without man-made damage from the shipment date for our all products (Excluded the consumable parts).
7. Shipping: by sea, by air, or express
8. Sample: sample for test is ok.
9. Visit factory: yes, it is ok, before visiting, please contact us.
10. About Discount: discount depends on your quantity, bulk order will in cheaper price.
11: Can buyers decide the express company that wil be used?
Yes. Buyers can choose the express company they prefer or cooperated with.
12: Can Buyers use their own couriers or shipping agents?
Yes, buyers can use their own shipping agents.
13: Do I need to pay taxes when receive the samples?
It depends on invoice value and the customs policy of the destination country.
14: What’s the lead time? (How long do you need to prepare my goods?
4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
