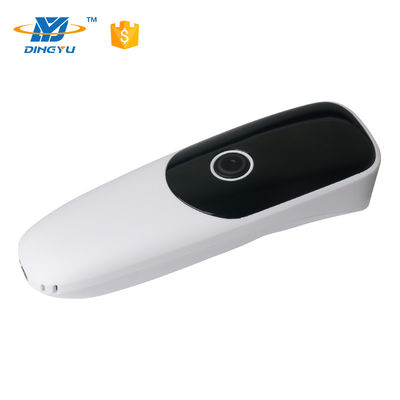

1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D

1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D

    • 1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D
    • 1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D
    • 1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D
    • 1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D
    • 1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D
  • 1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D

    Product Details:

    Place of Origin: China
    Brand Name: Dingyu/ DY SCAN
    Certification: CE, ROHS, FCC, IEC, FDA
    Model Number: DI9130-1D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiate
    Delivery Time: 3-7 days
    Payment Terms: T/T, Paypal, Alibaba
    Supply Ability: 10000pcs/month
    Contact Now
    Detailed Product Description
    Item Name: DI9130-1D CMOS: 640×480
    CUP: ARM32-bit Scan Type: 1D
    Resolution: ≥3mil/0.076mm(PCS90%,Code 39) Depth Of Field: 30mm~700mm
    Scan Mode: Manual ,Continuous, Auto Sense, Flashing Battery: 1200mah
    High Light:

    cordless usb barcode scanner

    ,

    wireless bluetooth barcode scanner

    Mini Handheld Bluetooth wireless 2.4G 1d mini CCD Barcode Scanner Reader



    DI9130-1D is a high-performance 1D bluetooth and wireless 2.4G barcode scanner with leading CCD image recognition technology.

    It can easily read the paper, goods, screen and other media barcodes.

    Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.





    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 0



    Features

    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 1



    Parameter





    Scan Type Linear CCD
    Light Source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 2500
    Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 30mm-700mm
    Scan Mode Manual ,Continuous, Auto Sense, Flashing
    Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Pitch:±60°,Roll: ±30°,Skew: ±60°
    Print Contrast Signal ≥20%
    Wireless standard 2.4GHZ (ISM band); Bluetooth 4.2, compatible with Bluetooth 4.0 / 3.0 / 2.1.
    Ambient Light Dark environment, indoor natural light
    Wireless communication mode Synchronization , storage
    Wireless transmission distance 2.4GHz,150m; Bluetooth 30m(Open distance)
    Storage 16Mb(over 100,000 Product code)
    Battery capacity 1200mAh
    Battery charging time About 3.5 h
    Continuous working time ≥12 h
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.



    Weight ≈70g(without cable)
    Dimension L130mm * W46.5mm * H28.5mm
    Communication Mode USB,Wireless 2.4G,Wireless Bluetooth 4.2
    Interface Type Type C
    Power Supply DC 5V@80mA(work)





    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 2



    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 3

    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 4



    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 5



    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 6



    1D Mini Handheld Bluetooth Wireless 2.4G portable scanner DI9130-1D 7
