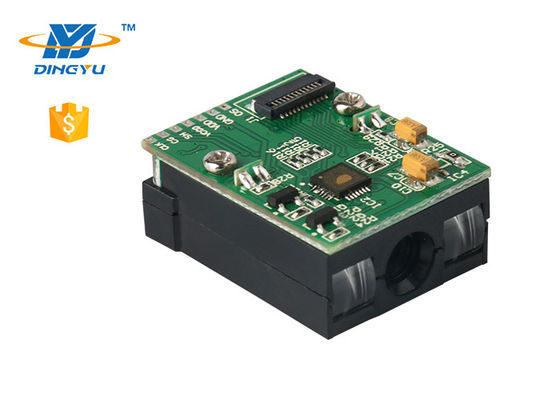

Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL

Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL

    • Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL
    • Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL
    • Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL
    • Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL
  • Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL

    Product Details:

    Place of Origin: Made in China
    Brand Name: DYscan
    Certification: CE ROHS FCC
    Model Number: DE1420

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD6-19 /PCS
    Packaging Details: 1pcs in box
    Delivery Time: 3-15
    Payment Terms: T/T, Western Union ,PAYPAL
    Supply Ability: 10000pcs/ month
    Contact Now
    Detailed Product Description
    Scan Type: Linear CCD Resolution: 2500
    Reading Precision: ≥3mil/0.076mm Decoding Speed: 300times/s
    Depth Of Field: 30mm-700mm Scan Mode: Manual ,Continuous, Auto Sense, Flashing
    Print Contrast Signal: ≥20% Weight: <6g
    Dimension: (L)26.5mm * (W)20.0mm *(H)11.5mm Communication: USB(USB-KBW、USB-COM),TTL,PS2
    Interface Type: FFC 12PIN Pitch 0.5 Power Supply: DC 3.3-5V@50mA(work)
    High Light:

    50mA Qr Code Scanner Module

    ,

    300times/S Qr Code Scanner Module

    ,

    TTL Arduino Barcode Scanner Module

    BARCODE SCANNER MODULE 2D 1D OEM QR CODE SCANNER MODULE



    DE1400 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, support USB, TTL, PS2 multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.



    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 0

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 1

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 2

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 3

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 4

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 5

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 6

    Raspberry Pi 300times/s 50mA Qr Code Scanner Module Linear TTL 7

    Performance

    Scan Type Linear CCD
    Light Source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 2500
    Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 30mm-700mm
    Scan Mode Manual ,Continuous, Auto Sense, Flashing
    Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Pitch:±60°
      Roll: ±30°
      Skew: ±60°
    Print Contrast Signal ≥20%
    Ambient Light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.



    Physical Parameter



    Weight <6g
    Dimension (L)26.5mm * (W)20.0mm *(H)11.5mm
    Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
    Interface Type FFC 12PIN Pitch 0.5
    Power Supply DC 3.3-5V@50mA(work)





    Environmental



    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.2m
    Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
    High Temp. 60℃
    Low Temp. -20℃
    Transport 10H@125RPM
