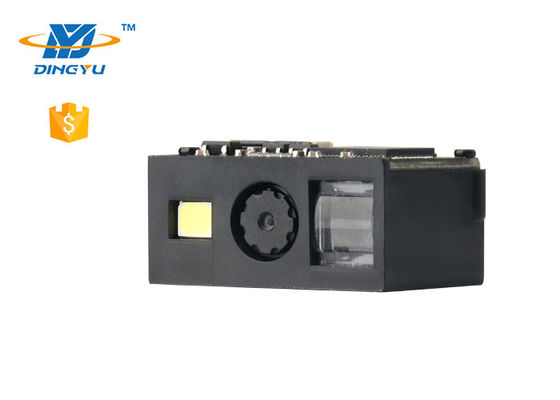

CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface

CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface

    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
    • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface
  • CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface

    Product Details:

    Place of Origin: Made in China
    Brand Name: DYscan
    Certification: CE ROHS FCC IEC
    Model Number: DE2106

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD9/PCS
    Packaging Details: 1pcs in box
    Delivery Time: 3-15 days
    Payment Terms: T/T, Western Union ,PAYPAL, L/C
    Supply Ability: 10000pcs/ month
    Contact Now
    Detailed Product Description
    Scan Type: CMOS Resolution: 640*480
    Reading Precision: ≥4mil/0.1mm(PCS90%,CODE 39) Decoding Speed: 25CM/S
    Depth Of Field: 20-500mm Scan Mode: Manual, Auto Sense, Command Trigger
    Print Contrast Signal: ≥25% Weight: 3.5g
    Dimension: 22mm L * 14.6mm W * 11.3mm H Communication: USB(USB-KBW、USB-COM),TTL
    Interface Type: FFC 12PIN Pitch 0.5 Power Supply: DC 3.3V, 150mA(Work)
    High Light:

    FCC Qr Code Scanner Module

    ,

    25CM/S Qr Code Scanner Module

    ,

    CMOS 2d Barcode Scanner Module

    2D Embedded QR Code Reader Vending Machine Mini Barcode Scanner Module QR Code Scanner Module Kiosk



    DE2106 is a practical embedded barcode scanner module with leading CMOS image recognition technology and intelligent image recognition system.



    It can scan universal 1D 2D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.



    Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.



    Features



    ☆ Mini size, widely used in wireless machine, self-service terminal.

    ☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)

    ☆ High brightness, dark environment scanning, low power consumption.

    ☆ Interface: USB, TTL.

    ☆ Support multiple systems and languages, secondary development.



    Details



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 0



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 1



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 2



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 3



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 4



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 5



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 6



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 7



    CMOS FCC 25CM/S Qr Code Scanner Module TTL Interface 8











    Performance

    Scan Type CMOS
    Light Source White light
    CPU 32-bit
    Resolution 640*480
    Reading precision ≥4mil/0.1mm(PCS90%,CODE 39)
    Decoding speed 25CM/S
    Scan view 36°*28°
    Scan Mode Manual, Auto sense, Continuous
    Scan angle Pitch:±50°, Roll: ±360°, Skew: ±50°
    Print Contrast Signal ≥25%
    Ambient Light Dark environment, indoor natural light
    Symbologies

    1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7),etc.

    2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc.


    Physical Parameter



    Weight <3.5 g
    Dimension 22mm L * 14.6mm W * 11.3mm H
    Communication USB(USB-KBW,USB-COM) , TTL
    Interface Type FFC 12PIN Pitch 0.5
    Power Supply DC 3.3V, 150mA(Work)



    Environmental



    Operating -20℃ to 50℃
    Storage -40℃ to 60℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.2m
    Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
    HighTemp. 60℃
    LowTemp. -40℃
    Transport 10H@125RPM
