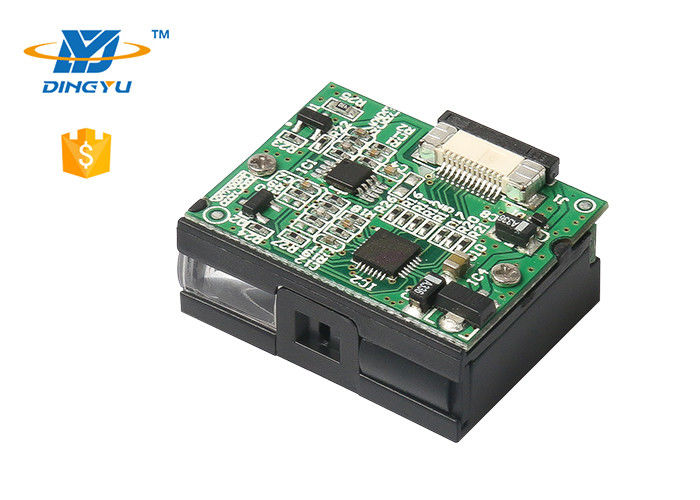

1D CCD 300times/s TTL Arduino Barcode Scanner Module

1D CCD 300times/s TTL Arduino Barcode Scanner Module

    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
    • 1D CCD 300times/s TTL Arduino Barcode Scanner Module
  • 1D CCD 300times/s TTL Arduino Barcode Scanner Module

    Product Details:

    Place of Origin: Made in China
    Brand Name: DYscan
    Certification: CE ROHS FCC IEC
    Model Number: DE1300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: USD10/PCS
    Packaging Details: 1pcs in box
    Delivery Time: 3-15 days
    Payment Terms: T/T, Western Union ,PAYPAL, L/C
    Supply Ability: 10000pcs/ month
    Contact Now
    Detailed Product Description
    Scan Type: Linear CCD Resolution: 1500
    Reading Precision: ≥4mil/0.1mm(PCS90%,Code 39) Decoding Speed: 300times/s
    Depth Of Field: 60mm-500mm Scan Mode: Manual ,Continuous
    Print Contrast Signal: ≥25% Weight: 6g
    Dimension: (L)28mm * (W)22.5mm *(H)12.3mm Communication: USB,TTL
    Interface Type: FFC 12PIN Pitch 0.5 Power Supply: DC 3.3V@50mA(work)
    High Light:

    TTL Arduino Barcode Scanner Module

    ,

    300times/s Arduino Barcode Scanner Module

    ,

    CCD 1d Barcode Scanner Module

    1D CCD USB TTL arduino barcode scanner module



    DE1300 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system.



    It can scan universal 1D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes.



    Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.



    Features



    ☆ Simple structure, can be used in various types of mechanical equipment.

    ☆ Read all the mainstream 1D codes in the market easily.

    ☆ High-performance processor, fast decoding , high-precision reading ability. (4mil)

    ☆ Support interfaces: USB, TTL

    ☆ Support multiple systems and languages.



    Details



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 0



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 1



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 2



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 3



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 4



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 5



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 6



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 7



    1D CCD 300times/s TTL Arduino Barcode Scanner Module 8







    Performance



    Scan Type Linear CCD
    Light Source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 1500
    Reading precision ≥4mil/0.1mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 60mm-500mm
    Scan Mode Manual ,Continuous
    Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Pitch:±50°
      Roll: ±30°
      Skew: ±50°
    Print Contrast Signal ≥25%
    Ambient Light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.



    Physical Parameter



    Weight <6g
    Dimension (L)28mm * (W)22.5mm *(H)12.3mm
    Communication Mode FFC 12PIN Pitch 0.5
    Interface Type USB,TTL
    Power Supply DC 3.3V@50mA(work)



    Environmental



    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.2m
    Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
    High Temp. 60℃
    Low Temp. -20℃
    Transport 10H@125RPM
