Product Details:
Place of Origin: China
Brand Name: DYscan
Certification: CE ROHS FCC IEC
Model Number: DS6600B
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiable
Packaging Details: 56*41*43cm/50pcs /Carton
Delivery Time: 5-7days
Payment Terms: T/T, Western Union,PAYPAL
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Scan Type: CMOS Resolution: 3mil
Decoding Speed: 35CM/S Depth Of Field: 3mil:50~130mm,13mil:50~270mm
Scan Mode: Manual , Auto Sense Print Contrast Signal: ≥20%
Storage: 16Mb(over 100,000 Product Code) Battery Capacity: 2200mAh
Symbologies: 1D /2D/QR CODE Dimension: L161mm * W63mm * H80mm
High Light:

FCC 2D Wireless Barcode Scanner

,

2200mAh 2D Wireless Barcode Scanner

,

COMS QR USB Barcode Reader

2D Handheld Barcode Scanner

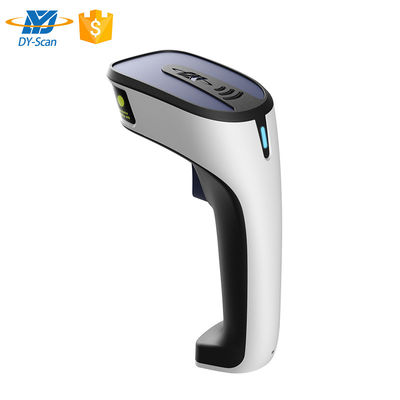

DS6600B-M9 is a high-performance 2D bluetooth and wireless 2.4G barcode scanner with leading CMOS image recognition technology.

It can easily read the paper, goods, screen and other media barcodes.

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.







Feature

☆ Ergonomic design, comfortable using.

☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)

☆ Interface: USB, bluetooth 4.2,Wireless 2.4G.

☆ Ultra-low power consumption.

☆ Bluetooth , long wireless distance 50 m, can be used in mobile phone and PC.

☆ Widely used in supermarket, warehouse, mobile payment, chain stores.



Performance





Scan Type CMOS
Light Source Red Light LED 525±10nm(aim), 5600K LED ( Lighting)
CPU 32-bit
Resolution 640*480
Start time 4s
Resolution ≥3mil/0.076mm(PCS90%,CODE 39)
Decoding speed 35CM/S
Depth of field 10mm~550mm
Scan Mode Manual , Auto Sense
Scan angle Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Wireless communication mode Synchronization , storage
Wireless transmission distance 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance)
Storage 16Mb(over 100,000 Product code)
Battery capacity 2200mAh
Battery charging time About 6.5 hours
Continuous working time ≥16hours
Symbologies

1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT

2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec





Physical Parameter





Weight ≈160g(without cable)
Dimension L180mm * W60mm * H80mm
Communication Mode

USB,Wireless 2.4G,Bluetooth 4.2

Interface Type USB
Power Supply

DC5V input, Standby current:50mA,Decoding current:120mA





Environmental





Operating temperature -20℃ to 55℃
Storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport Vibration Test 10H@125RPM





Detail Image



FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 0

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 1

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 2

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 3

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 4

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 5

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 6

FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 7







FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 8







FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 9



FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 10



FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 11



FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 12



FCC 2200mAh 2D Wireless Barcode Scanner COMS QR USB 13
