| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DI9010-2D |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 55*27*22.5cm/50pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 1280*800 | Depth Of Field: | 3mil：55~100mm，13mil：55~350mm |
| Scan Mode: | Trigger Mode、Auto Sense Mode | Print Contrast Signal: | ≥20% |
| Storage: | 16Mb（over 100,000 Product Code） | Battery Capacity: | 360mAh |
| Symbologies: | 1D 2D | Dimension: | L51.5mm * W35mm * H45mm |
| High Light: | 2D Finger Ring Barcode Reader,Wearable Finger Ring Barcode Reader,360mAh USB Wired Barcode Scanner |
||
2D Portable Barcode Scanner
DI9010-2D is a high-performance 2D bluetooth barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Performance
| Scan Type | CMOS |
| Light Source | Aiming: Red LED,wavelength coverage 525nm |
| CPU | 32-bit |
| Resolution | 1280*800 |
| Start time | 4s |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 65CM/S |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan Mode | Trigger mode,Auto sense mode |
| Indicator | LED, Buzzer, Vibration |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 360mAh |
| Battery charging time | About 1.5 h |
| Continuous working time | ≥3h |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
Physical Parameter
| Weight | ≈35g(without cable) |
| Dimension | L51.5mm * W35mm * H45mm |
| Communication Mode | USB-KBW ,wireless bluetooth |
| Interface Type | Type C |
| Power Supply |
DC 5V@200mA(work) |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |

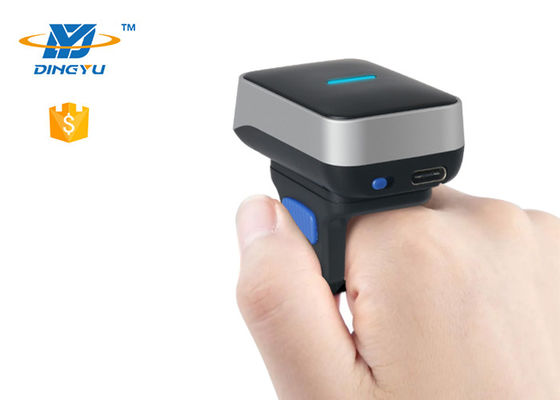

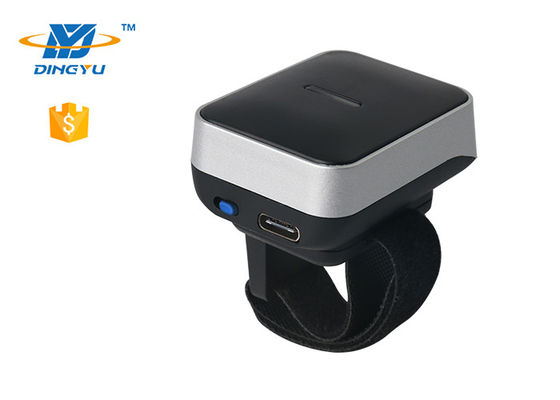

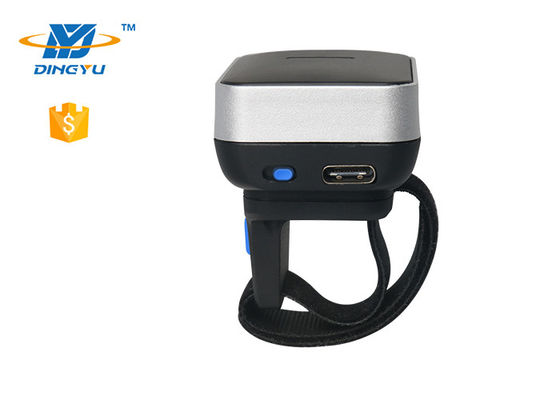

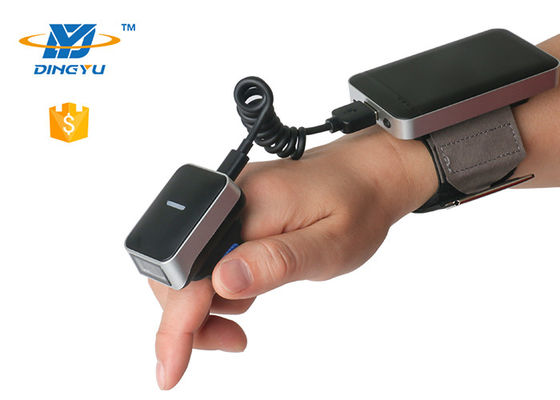

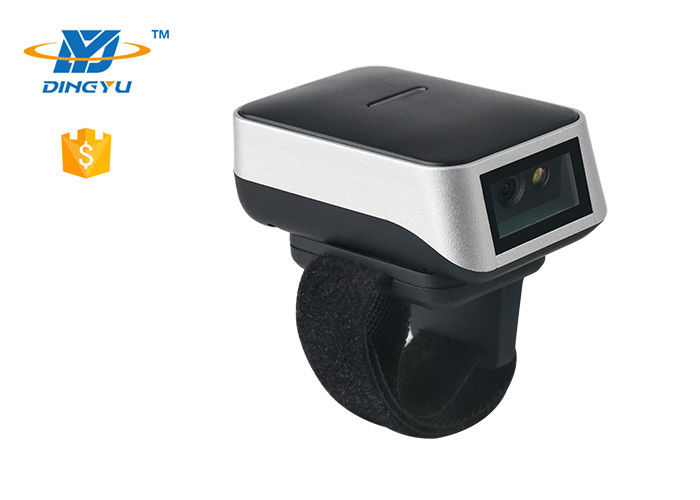

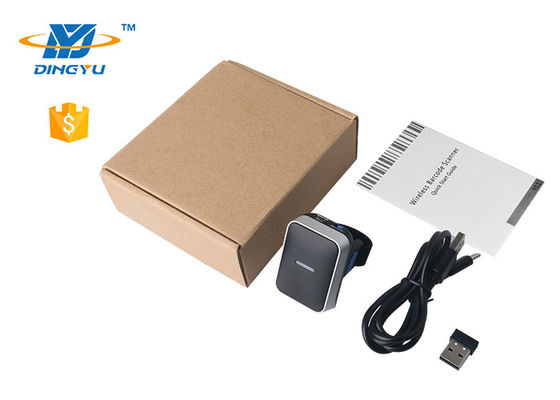

Detail Image
