|Place of Origin:||China|
|Certification:||CE ROHS FCC IEC|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||56*41*43cm/10pcs /Carton|
|Payment Terms:||T/T, Western Union,PAYPAL|
|Decoding Speed:||35CM/S||Depth Of Field:||10mm~550mm|
|Scan Mode:||Manual , Auto Sense||Print Contrast Signal:||≥15%|
|Battery Capacity:||4800mAh||Symbologies:||1D /2D/QR CODE|
|Dimension:||60*115*170mm Scanner||Display Size:||1.77 Inch|
handheld QR code Scanner CMOS,
anti vibration handheld QR code Scanner,
35CM/S Android Barcode Scanning Gun
handheld QR code Scanner Android Barcode Scanning Gun 1D 2D USB handheld barcode scanner with display

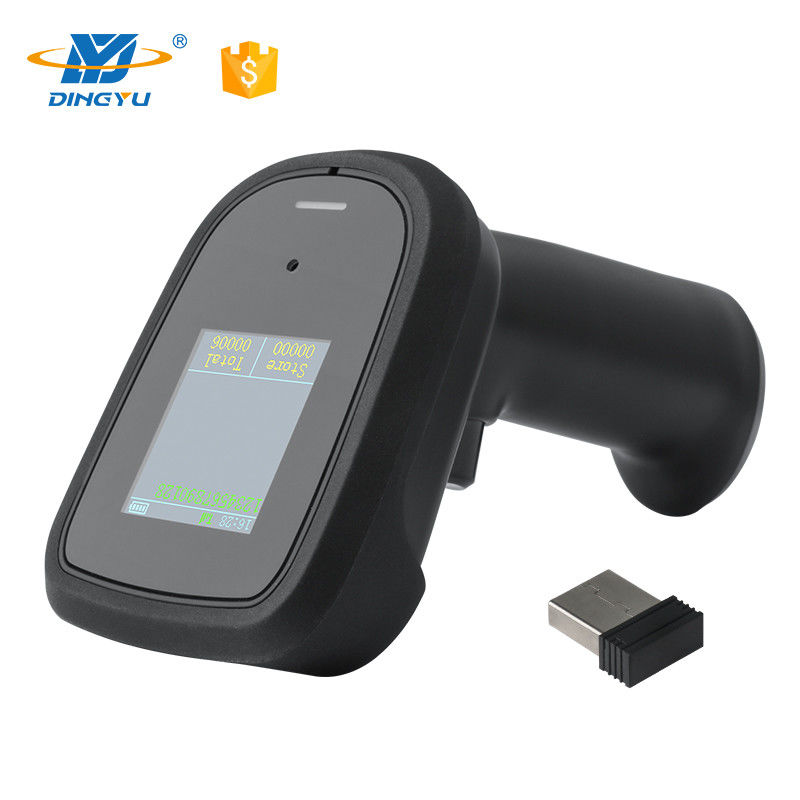

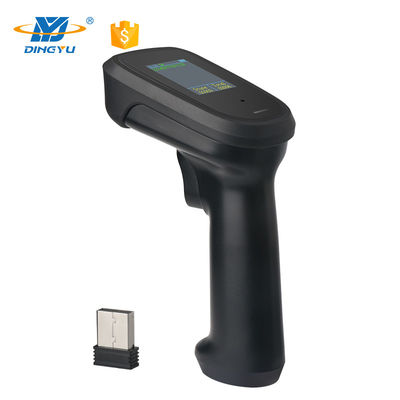

DS5220BD-2D is an industrial handheld 2D wireless barcode scanner with a display screen. It has excellent reading performance and can easily read barcodes on different media such as paper, commodities, and screen.
This product adopts enhanced wireless 2.4G transmission technology, the effective distance of outdoor open environment can reach more than 60 m, and it can support both wired and wireless transmission methods.
The screen can display barcode data , product name and price information, the current time, wireless (wired) status, wireless working mode, charging status and battery power, total stored data. The total number of decoding (the maximum count shows 99999), the number of pieces of data and the total number of times can be cleared by scanning the setting codes.
It can be mainly used in industrial production, mobile payment, commodity barcode scanning, inventory, etc.
> Highly integrated two-dimensional decoding structure, anti-drop, anti-vibration.
> Using high-performance MCU, it can easily identify all mainstream 1D 2D barcodes in the market.
> 300,000 global exposure camera, automatic exposure, suitable for complex use environment.
> Easily read barcodes above 3MIL to meet daily scanning needs.
> Enhanced wireless 2.4G transmission technology, reliable outdoor transmission distance can reach more than 60 m, and support wired transmission without switching.
>Support wireless Bluetooth 4.2 communication mode, support HID, SPP, BLE three communication protocols.
>Support multiple working modes (manual, induction, continuous) to meet different reading needs.
>1.77 inch TFT screen, 128×160, can display up to 96 barcode characters in 6 lines.
>The product name and price information can also be displayed on the TFT screen through the uploaded product information.
>Support online upgrade, custom development and secondary development.
>With vibration prompt, scanning code is clearer.
|Light Source||Red Light LED 525±10nm(aim), 5600K LED ( Lighting)|
|Depth of field|
Manual , Auto Sense,Continuous
|Scan angle||Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)|
|Print Contrast Signal|
|Ambient Light||Dark environment, indoor natural light|
|Wireless communication mode||Synchronization , storage|
|Wireless transmission distance||2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance)|
4Mb(over 15,000 Product code)
|Battery charging time||About 6.5 hours|
|Continuous working time||≥36hours|
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc.
L169.08mm * W67.1mm * H90.96mm
USB, Wireless 2.4G, Bluetooth 4.2
|Interface Type||B type USB, 1.8m cable|
DC 5V input, decoding current:200mA
TFT screen parameters
1.77 inch (up to 6 lines of 96 barcode characters can be displayed)
|Display content||Barcode data information currently read, current time, wireless (wired) status, wireless working mode, charging status and battery power, total number of stored data, total decoding times (maximum count display 99999)|
|Display direction||12 o'clock|
|Operating temperature||-20℃ to 55℃|
|Storage temperature||-20℃ to 60℃|
|Humidity||5% to 95%(non-condensing)|
|Temp. Test||30 minutes for high Temp., 30 minutes for low Temp.,|
|Transport Vibration Test||10H@125RPM|
