Place of Origin: | China |
Brand Name: | DY SCAN |
Certification: | CE, ROHS, FCC, IEC |
Model Number: | DS6510B-2D |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | 1pcs/carton |
Delivery Time: | 3-7 days |
Payment Terms: | T/T, Paypal, Alibaba |
Supply Ability: | 100,000pcs/month |
Item Name: | 2D Long Range Wireless Barcode Scanner | Resolution: | 640*480 |
---|---|---|---|
Scan Type: | Cmos | Speed: | 65CM/S |
Depth Of Field: | 30-600mm | Storage: | 350kb |
Battery: | 2200mAh | Comunication Mode: | Wireless 2.4G And Bluetooth |
Size: | 60*115*170mm Scanner 108*135*130mm Stand | Battery Charging Time: | 6.5h |
Continuous Working Time: | 16 H | ||
High Light: | stand warehouse barcode scanner wireless,long range 2.4 g wireless barcode scanner,2.4 g warehouse barcode scanner wireless |

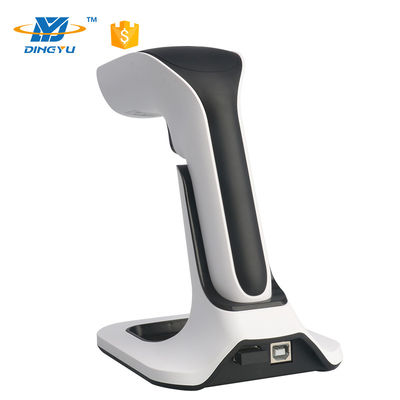

2D long range wireless barcode scanner barcode sensor with stand barcode scanner
Product description
DS6510B is a high-performance stand type 2D bluetooth and wireless 2.4G barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods other media barcodes.
Features
☆ Simple style design, widely used in warehouse, express.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
☆ HID,SPP,BLE mode, connected with PC, mobile phone easily.
☆ Ultra-low power consumption, continuous working time 16h.
Parameter
Light Source |
Red Light LED 525±10nm(aim), 5600K LED ( Lighting) Note: global exposure camera, lighting brightness will change automatically according to different reading distance. |
CPU | 32-bit |
Scan type | Cmos |
Resolution | 640*480 |
Resolution | ≥3mil/0.1mm(PCS90%,CODE 39) |
Decoding speed | 65CM/S |
Depth of field | 30mm~600mm |
Scan view | 41° * 31° |
Scan Mode | Manual , Auto Sense, Continuous |
Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
Roll±360°, Pitch±60°, Skew±55° | |
Print Contrast Signal | ≥15% |
Ambient Light | Dark environment, indoor natural light |
Wireless communication mode | Synchronization , storage |
Wireless transmission distance | 2.4GHz,100m,Bluetooth,30m (Open distance) |
Storage | 350Kb(over 20,000 Product code) |
Battery capacity | 2200mAh |
Battery charging time | 6.5h |
Continuous working time | ≥20h |
Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban (Brazil bank code),GS1 Composite, Japan post, Postnet, etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
Weight | ≈160g(without cable) |
Dimension |
60*115*170mm Scanner 108*135*130mm Stand |
Communication Mode | USB,Wireless 2.4G, Bluetooth 4.2 |
Interface Type | USB |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
