| Place of Origin: | Guangdong, China |
| Brand Name: | DY SCAN |
| Certification: | CE FCC ROHS |
| Price: | $20.00 - $35.00/pieces |
|---|---|
| Packaging Details: | Automatic Scan Handheld 2D QR Code Reader POS Terminal Charging 2.4G Wireless Barcode Scanner |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Scan Element Type: | CMOS | Colour Depth: | 32 Bit |
|---|---|---|---|
| Interface Type: | Usb, Other | Max Paper Size: | A4 Size |
| Optical Resolution: | 640*480 | Scan Speed: | 35CM/S |
| Resolution: | ≥4mil | Dimensions (W X D X H): | L175mm * W72mm * H100mm L200mm * W90mm * H51mm(Communication Base) |
| Scanning Range: | Roll±360°, Pitch±60°, Skew±55° | Scan Mode: | Manual , Auto Scan |
| Depth Of Field: | 35-500MM | Drop Height: | 1.5M |
| Print Contrast Signal: | 20% | IP: | IP42 |
| High Light: | CMOS 2D QR Code Reader,POS Terminals 2D QR Code Reader,Automatic Scanning Wireless Barcode Scanner |
||

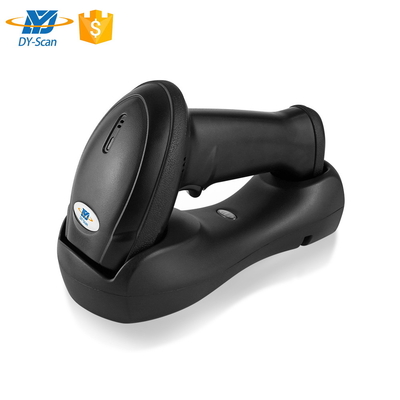

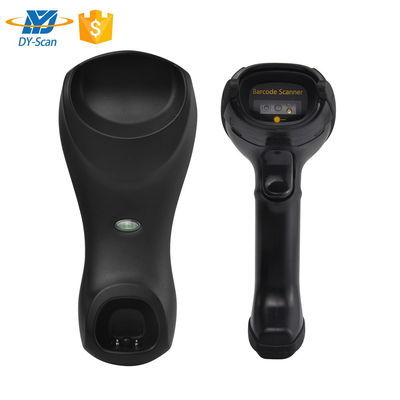

Automatic Scan Handheld 2D QR Code Reader POS Terminal Charging 2.4G Wireless Barcode Scanner
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D & 2D barcodes in the market easily.
☆ High-performance processor, fast decoding.
☆ Support multiple languages and systems.
☆ Interface:USB, Wireless 2.4G, B T.
☆ Long transmission distance, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Product Parameters
| Scan Type | CMOS |
| Light Source | Red LEDs 625nm(aiming & Illumination) |
| CPU | 32-bit |
| Resolution | ≥4mil |
| Decoding speed | 35CM/S |
| Depth of field | 35mm~500mm |
| Scan Mode | Manual ,Auto Sense |
| Scan angle | Roll±360°, Pitch±60°, Skew±55°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz 100m, B T 30m, (Open distance) |
| Storage | 350Kb(over 20,000 Product code) |
| Battery capacity | 2000mAh |
| Battery charging time | around 6 h |
| Continuous working time | ≥15 h |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,Maxicode,etc. |
| Weight | ≈205g(scanner); ≈230g(base)(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| L200mm * W90mm * H51mm(Communication base) | |
| Interface Type | USB |
| Communication | USB, Wireless 2.4G, B T |
| Power Supply | DC 5V@180mA(work) |
