| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS6800B-2D |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Resolution: | 1D：≥3mil，2D：≥8.7mil @PCS90% | Decoding Speed: | 25CM/S |
|---|---|---|---|
| Depth Of Field: | 3mil：70~200mm，13mil：45~320mm | Scan Mode: | Manual、Auto Sense Mode, Command Control |
| Pixel: | 1280×800 CMOS | Interface: | USB |
| IP: | IP65 | ||
| Highlight: | Efficient Performance 2D Barcode Scanner,IP65 2D Barcode Scanner,Rugged 2D Barcode Scanner |
||

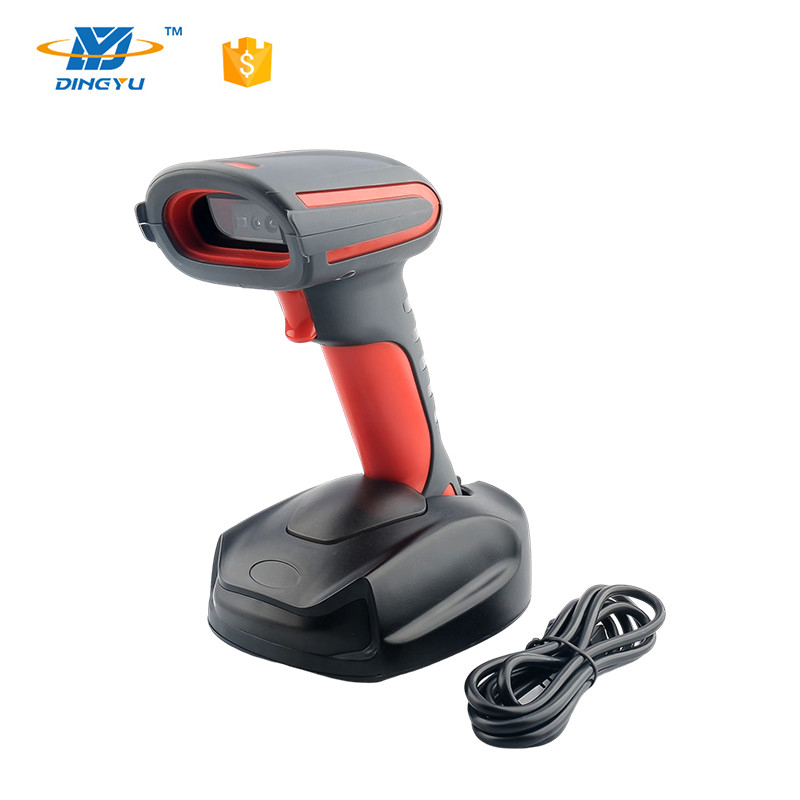

1280×800 CMOS IP65 2D Barcode Scanner With Base Rugged and Efficient Performance
Product Destription
DS6800B-2D is wired 2D Bluetooth and 2.4G wireless handheld barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile
payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using. ☆ Read all mainstream 1D/2D barcodes in the market easily. ☆ High-performance processor, fast decoding. (3mil)
◆ IP65 protection, waterproof, dustproof, easy to deal with all types of complex environment
◆ Support multiple systems and languages, secondary development. ◆ Widely used in supermarket, inventory management.
| Scan Type | Cmos |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Color | Red and grey |
| Reading precision | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25cm/s |
| Depth of field | 3mil:70~200mm,13mil:45~320mm |
| Scan Mode | Manual ,Auto Sense |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60° | |
| Roll: ±360° | |
| Skew: ±70° | |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
| Weight | ≈290g(USb) |
| Dimension | L184mm * W94mm * H93mm |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Interface Type | USB ,RS232 |
| Power Supply | DC 5V@279mA(work) |
Application of Handheld Barcode Reader
▅ Supermarket
▅ Warehouse
▅ Mobile payment
▅ Retail chain
▅ Courier
▅ Health care
