| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DE2290H |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100000pcs/month |
| Size: | 21.38mm L × 15.84mm W × 11.58mm H | Interface: | USB、USB-com（driver Is Needed）、TTL （USB Protocol：Full Speed ,USB 2.0） |
|---|---|---|---|
| CMOS: | 1280*800 | Start Up Time: | 750ms |
| Resolution: | 1D：≥3mil | Scan Mode: | Trigger Mode、Auto Sense Mode |
| High Light: | 2D Barcode Scan Engine Module,QR Scan Engine Module,Handheld POS Devices Barcode Scan Engine |
||

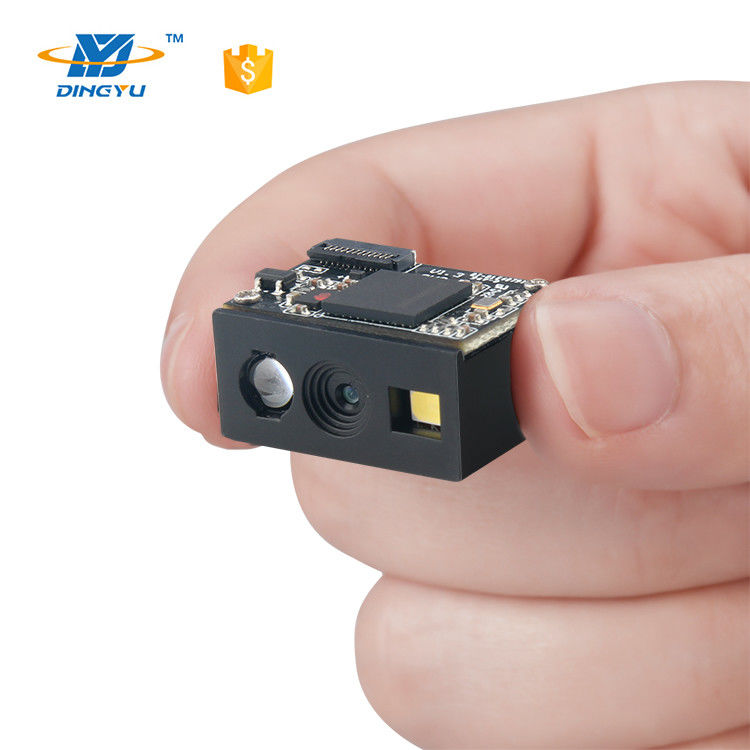

OEM 2D Barcode Scanner Module QR Scan Engine for Handheld POS Devices
Product Destriptions
DE2290H is a high-performance 300,000 global pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system.
With excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.
The integrated compact design allows for easy insertion into a wide range of equipment.
Widely used in various types of self-service machines, price checking machines, lockers,etc.
1. Small size, self-contained fixing holes for easy integration into other equipment.
2. Optional multiple interfaces {USB (KBW, COM), TTL}, suitable for different application.
3. Good reading performance, easy to read both screen and paper barcodes.
4. High-definition camera, can read smaller and complicated 1D 2D barcodes.
5. Support multiple working modes (Manual, Auto sense, Continuous).
Performance parameter
| Communication | USB(USB-KBW,USB-COM,HID-POS),TTL |
| Scan Type | CMOS,Global shutter |
| Resolution | 300,000 pixel, 640*480 |
| Reading precision | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Depth of field | 40mm~530mm(Different barcode range) |
| Decoding speed | 35CM/S |
| Scan Mode | Manual , Continuous, Auto Sense, Command control |
| Prompt method | LED indicator light, buzzer (external circuit) |
| Field of view | 41° * 31° |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Roll: ±360°,Pitch:±60°,Skew: ±55° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
