| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS5220BL-2D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 56*41*43cm/10pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Decoding Speed: | 35CM/S |
|---|---|---|---|
| Depth Of Field: | 3mil：50~130mm，13mil：50~270mm | Scan Mode: | Manual , Auto Sense |
| Print Contrast Signal: | ≥20% | Battery Capacity: | 4800mAh |
| Highlight: | 2D Handheld Barcode Scanner,640x480 Handheld Barcode Scanner,Wired Handheld Barcode Scanner |
||

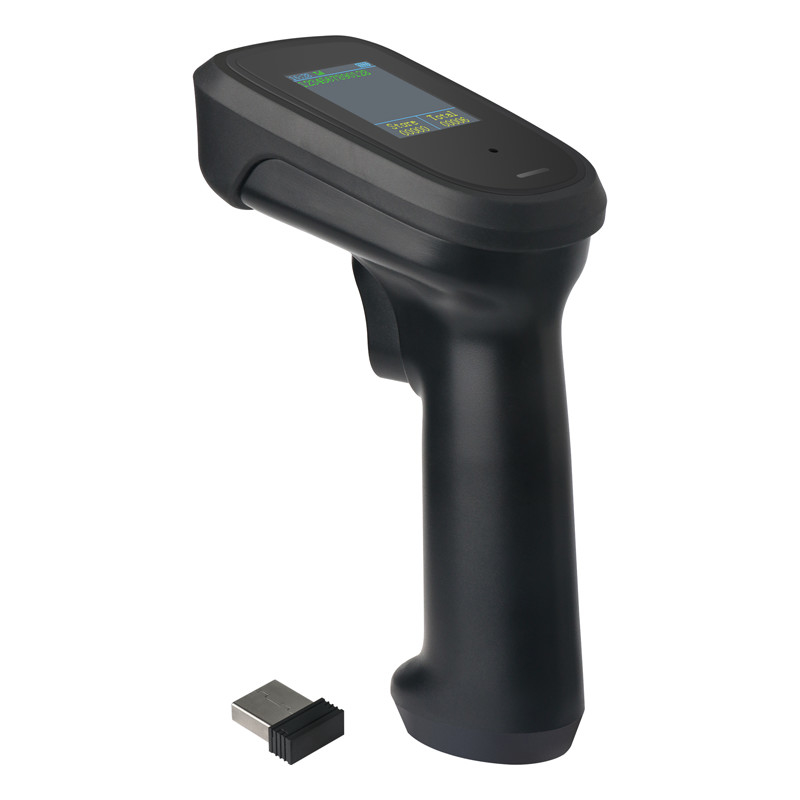

USB Cable Handheld 2D Barcode Scanner Wired 640x480 Resolution Anti-Drop
Product Destription
DS5220BL-2D is wireless 2.4G and bluetooth 2D handheld barcode scanner with good fall resistance.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)

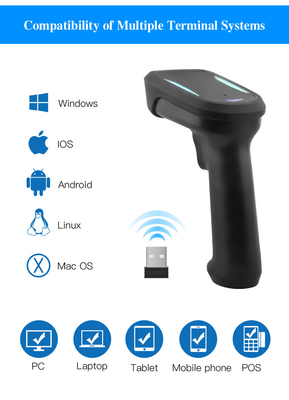

☆ Interface: USB, wireless 2.4G, Bluetooth.
☆ Dual mode: wired, wireless, Ultra-low power consumption.
☆ Transmission distance 100m, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Performance
| Scan Type | CMOS |
| Light Source |
Red Light LED 525±10nm(aim), 5600K LED ( Lighting) Note: global exposure camera, lighting brightness will change automatically according to different reading distance. |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥3mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 65CM/S |
| Depth of field | 30-600mm |
| Scan view | 41° * 31° |
| Scan mode | Manual , Continuous, Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater) |
| Print Contrast Signal | ≥15% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,100m (Open distance), Bluetooth 30m ( Open distance) |
| Storage | 350KB(over 20,000 Product code) |
| Battery capacity | 4800mAh - 5000mAh |
| Battery charging time | Around 6.5 h |
| Continuous working time | ≥36 h |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban (Brazil bank code),GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |

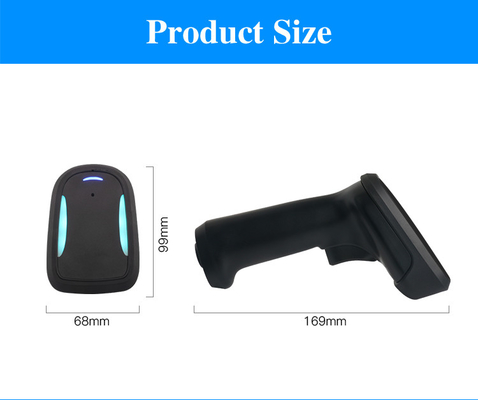

Detail Image
FQA:
Q1: How do you ensure the high quality of your barcode scanners?
DYscan: We are a professional manufacturer and developer of barcode scanners, with 18 years of extensive field experience.
We have a dedicated QC team and use advanced testing equipment (engine age test, wire bend machine, switch life test, shock resistance test).
All our barcode scanners are certified by CE, FCC, and ROHS, among others.
Q2: How do you manage quality control?
DYscan: Our wire bend test and button durability test both exceed 1 million cycles. Every device undergoes comprehensive testing before shipment.
Q3: What is the warranty period for your barcode scanners?
DYscan: 12 months.
Q4: How do you maintain stable performance?
DYscan: We employ a streamlined production process. Each product is tested at least four times before delivery.
Q5: Do you offer OEM or ODM services for barcode scanners?
DYscan: Yes, we offer OEM services, including custom logo printing, color box design, and user manual creation. Our technical team also supports ODM services.
