| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5100B |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 220mm L * 100mm W * H80mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| CPU: | 32-bit | Resolution: | 2500 |
|---|---|---|---|
| Wireless Transmission Distance: | Bluetooth 4.2 30m Wireless2.4G 150m | Storage: | 2M |
| Ttery Charging Time: | 6.5 H | Decoding Speed: | 300 Times/s |
| Highlight: | 1D Wireless Barcode Scanner,High Performance Wireless Barcode Scanner,Durable Wireless Barcode Scanner |
||

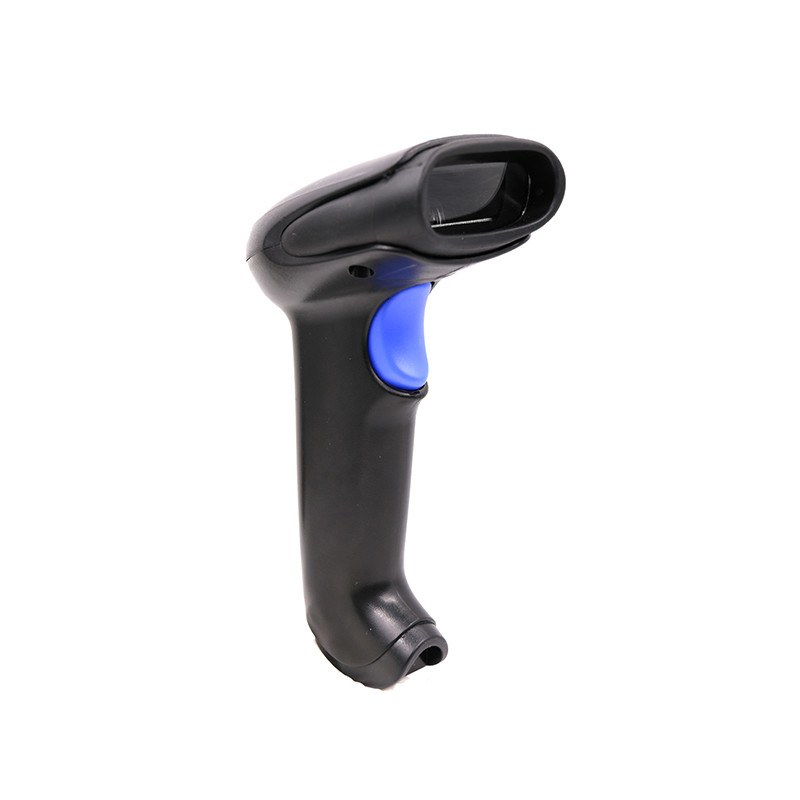

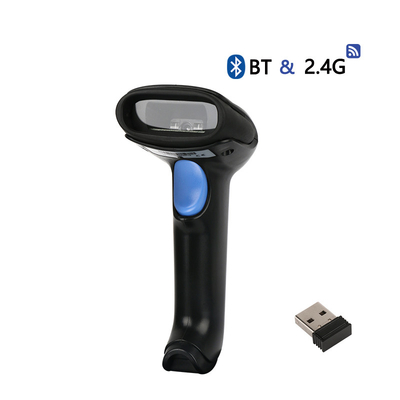

1D Bluetooth 2.4G Wireless Barcode Scanner Durable in Use And High Performance
Product Description
The DS5100B is a state-of-the-art 1D Bluetooth and wireless 2.4G barcode scanner, equipped with advanced CCD image recognition technology. This versatile device effortlessly scans barcodes from paper, products, screens, and various other media. It is designed to meet the needs of diverse industries, including manufacturing, warehousing, logistics, healthcare, retail, mobile payment, express delivery, inventory management, food traceability, and asset inventory. With its high performance and reliability, the DS5100B ensures efficient and accurate barcode scanning across a wide range of applications.
Features
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | 160g(without cable) |
| Dimension | L150mm * W70mm * H95mm |
| Communication method | Wireless 2.4G,bluetooth,USB |
| Power supply | DC 5V@100mA(work) |
| Performance | |
| Scan type | Linear CCD |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Row±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Dark,Indoor natural light |
| Wireless communication mode | Synchronization , asynchronous , storage |
| Wireless transmission distance | Bluetooth 4.2 30m Wireless2.4G 150m |
| Storage | 2M(over 100000 barcodes) |
| Battery capacity | 1600mAh |
| Battery charging time | 6.5 h |
| Continuous working time | ≥20h |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 60-100mm (PCS90%,Code 39) |
| 13MIL | 10-320mm (PCS90%, EAN-13) |
| 20MIL | 10-430mm (PCS90%,Code 39) |
| 40MIL | 110-600mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable(charging cable) | USB, connect the scanner to a host device and charging. |
| Receiver | Used to receive and transmit scanner data. |
