| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DS5900-2D |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100, 000pcs/month |
| Reading Precision: | ≥4mil/0.1mm(PCS90%,Code 39) | Resolution: | 1500 |
|---|---|---|---|
| Scan Type: | CCD | Speed: | 300 Scan/s |
| Depth Of Field: | 45-350MM | Comunication Mode: | USB，RS232 |
| Highlight: | 2D CMOS Imager Handheld Barcode Scanner,DS5900 Handheld Barcode Scanner,USB Wired Handheld Barcode Scanner |
||

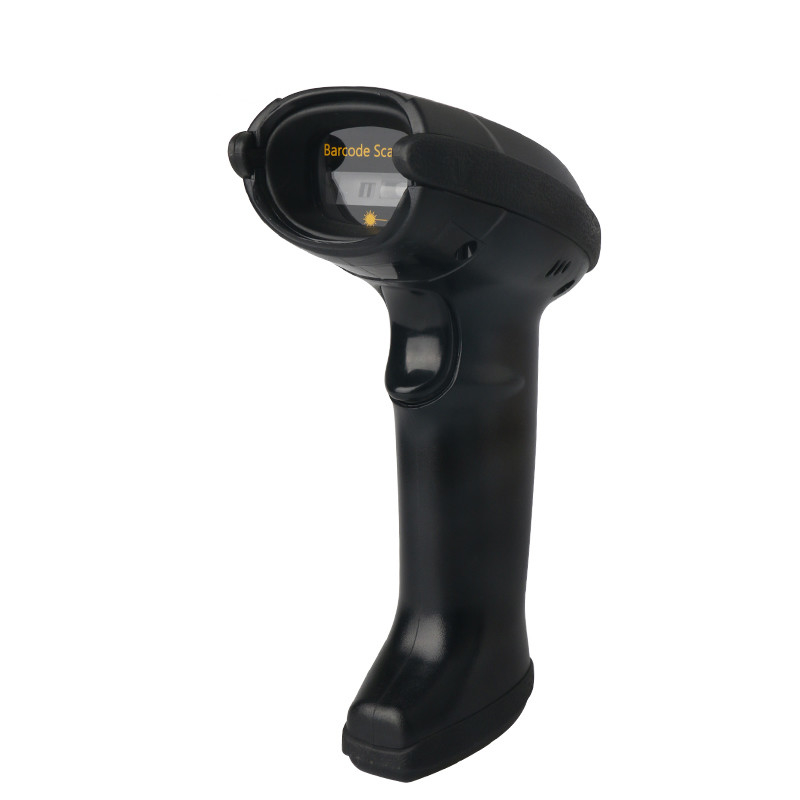

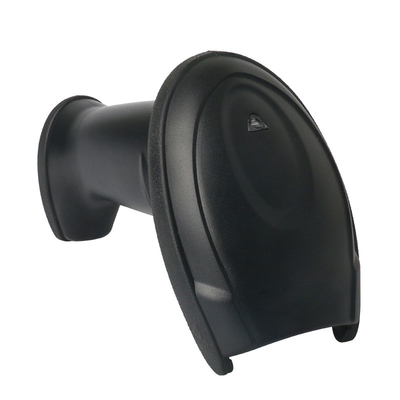

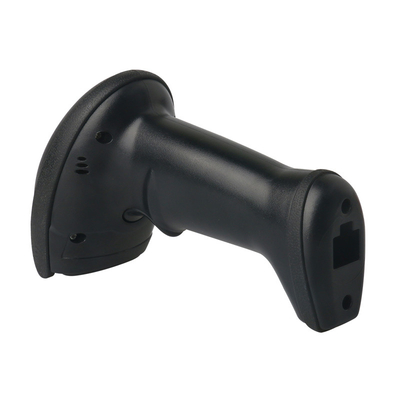

Handheld 2D CMOS Imager Code Reader USB Wired Barcode Scanner DS5900
Product description
DS5900-2D is wired 2D handheld barcode scanner with good fall resistance.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)
☆ Interface: USB/RS232.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Application
Supermarket Warehouse Mobile payment Retail chain Courier Health care
Parameter
| Scan Type | CMOS |
| Light Source |
Red Light LED 525±10nm(aim), 5600K LED ( Lighting) Note: global exposure camera, lighting brightness will change automatically according to different reading distance. |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥3mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 65CM/S |
| Depth of field | 30-600mm |
| Scan view | 41° * 31° |
| Scan mode | Manual , Continuous, Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater) |
| Print Contrast Signal | ≥15% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban (Brazil bank code),GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
| Weight | ≈160g(without cable) |
| Dimension | L165.5mm * W 63.5mm * H92.3mm |
| Interface Type | USB |
| Cable length | 1.8m |
| Power Supply | DC5V input, decoding current:200mA |
Advantage:
* Factory direct sale, cheap price.
* Fast and accurate in reading 1D ,2D codes.
* USB interface, plug and play, no need dirver.
* High decoding ability and high performance.
* Support universal keyboard language.
* Sharp design with comfortable feeling in hand. Comfortable button, service life of button up to 5million times.
* Made of durable ABS material, wear resistant and drop-proof.
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
