| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS6520B-1D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 61.5*38.5*25.5cm/10pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CCD | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 300 Times/s | Depth Of Field: | 3mil：50~130mm，13mil：50~270mm |
| Scan Mode: | Manual , Auto Sense | Print Contrast Signal: | ≥20% |
| Highlight: | Charging Stand Handheld Barcode Scanner,USB Wireless Handheld Barcode Scanner,1D Qr Code Handheld Barcode Scanner |
||
Handheld Barcode Scanner 1D Qr Code with Charging Stand USB Wireless Bluetooth Barcode Reader
Product Description

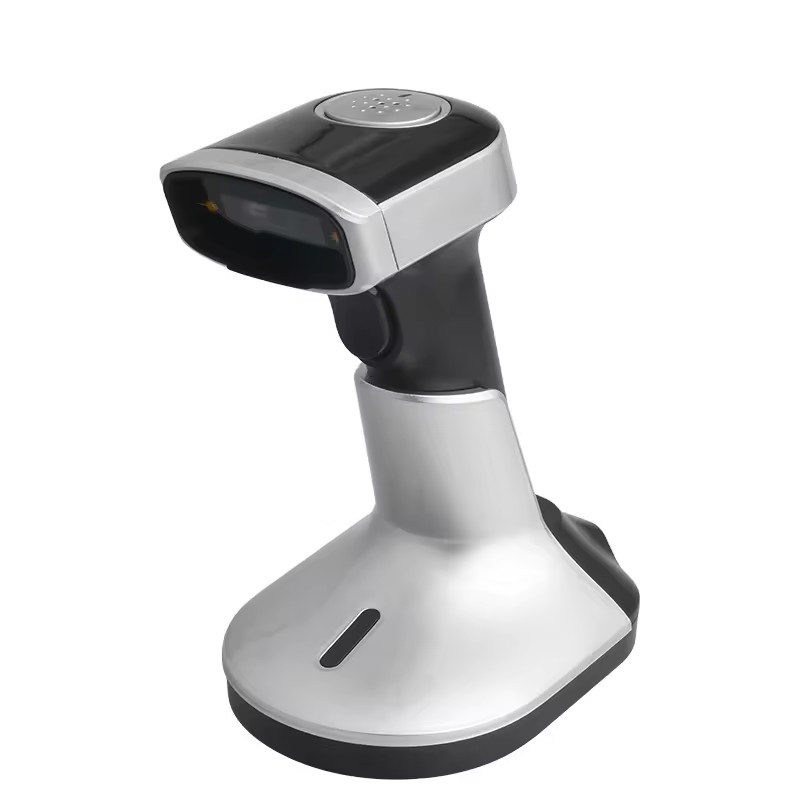

DS6520B-1D is a 1D bluetooth and wireless 2.4g barcode scanner with charging stand.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Performance
| Scan Type | Linear CCD |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan Mode | Manual ,Continuous, Auto Sense, Flashing |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Roll±60°, Pitch±30°, Skew±60° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,120meters; Bluetooth 30meters(Open distance) |
| Storage | 16Mb |
| Battery capacity | 2200mAh |
| Battery charging time | About 7 hours |
| Continuous working time | ≥24hours |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
Physical Parameter
| Weight | ≈160g(without cable) |
| Dimension |
175*55*86mm Scanner
|
| 130*100*100mm Stand | |
| Communication Mode | USB,Wireless 2.4G |
| Interface Type | USB |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport | 10H@125RPM |
Detail Image
