| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS6510B-M9 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 61.5*38.5*25.5cm/10pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 35CM/S | Depth Of Field: | 3mil：50~130mm，13mil：50~270mm |
| Scan Mode: | Manual , Auto Sense | Storage: | 16Mb（over 100,000 Product Code） |
| Dimension: | 60*115*170mm Scanner | ||
| Highlight: | 2200mAh QR Code Reader,2D Bluetooth QR Code Reader,2.4G Image Barcode Scanner |
||

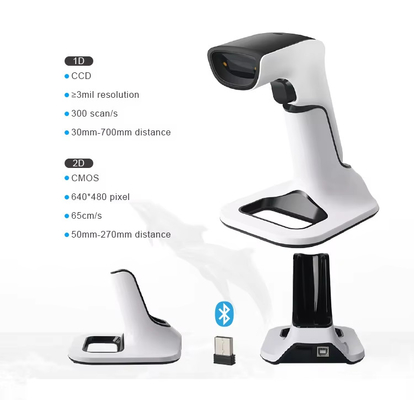

DS6510B-M9 is a 2D bluetooth and wireless 2.4g barcode scanner with charging stand
Product Description
DS6510B-M9 is a 2D Bluetooth and Wireless 2.4G barcode scanner with a charging stand.
It effortlessly reads barcodes from various media, including paper, products, and screens.
Widely used in manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, asset inventory, and more.
Performance
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LED ( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Start time | 4s |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding speed | 35CM/S |
| Depth of field | 3mil:50~130mm,13mil:50~270mm |
| Scan Mode | Manual , Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 2200mAh |
| Battery charging time | About 5 hours |
| Continuous working time | ≥16hours |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
Physical Parameter
| Weight | ≈151g(without cable) |
| Dimension | L161mm * W63mm * H80mm |
| Communication Mode | USB, Wireless 2.4G, Bluetooth |
| Interface Type | USB |
| Power Supply |
DC5V input, Standby current:50mA,Decoding current:120mA |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |

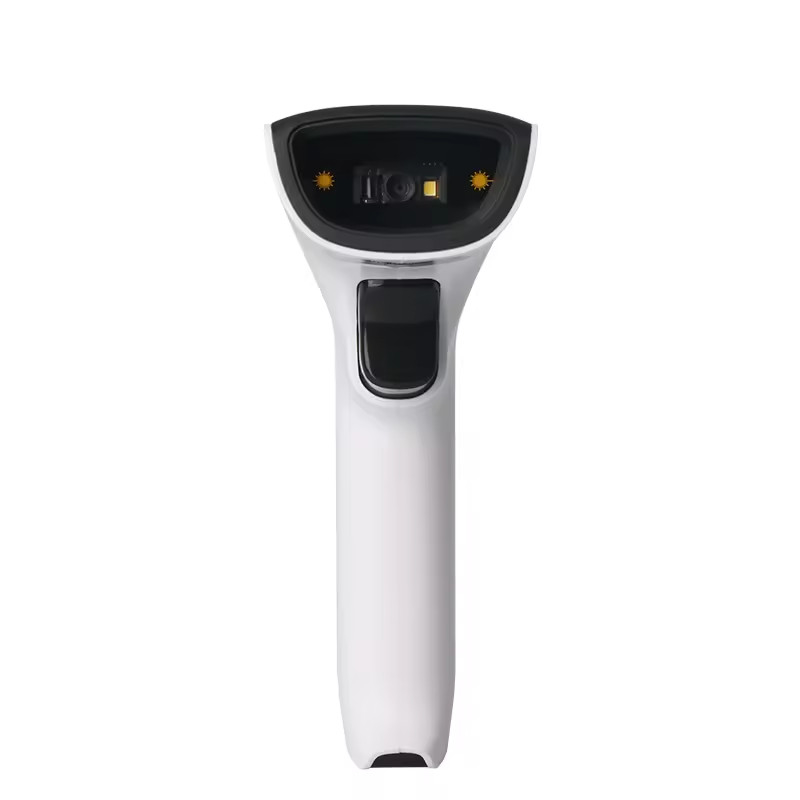

Detail Image
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
