| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DI9150-2D |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 55*27*22.5cm/50pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Resolution: | 4mil | Decoding Speed: | 640*480 |
|---|---|---|---|
| Depth Of Field: | 30-500mm | Scan Mode: | Trigger Mode、Auto Sense Mode |
| Print Contrast Signal: | ≥25% | Storage: | 16Mb（over 100,000 Product Code） |
| Dimension: | 73.8mm L * 37mm W *16.3 Mm H | ||
| Highlight: | Wireless CMOS Bluetooth Barcode Scanner,450mAh Wireless Barcode Scanner,Portable Mini Wireless Barcode Scanner |
||

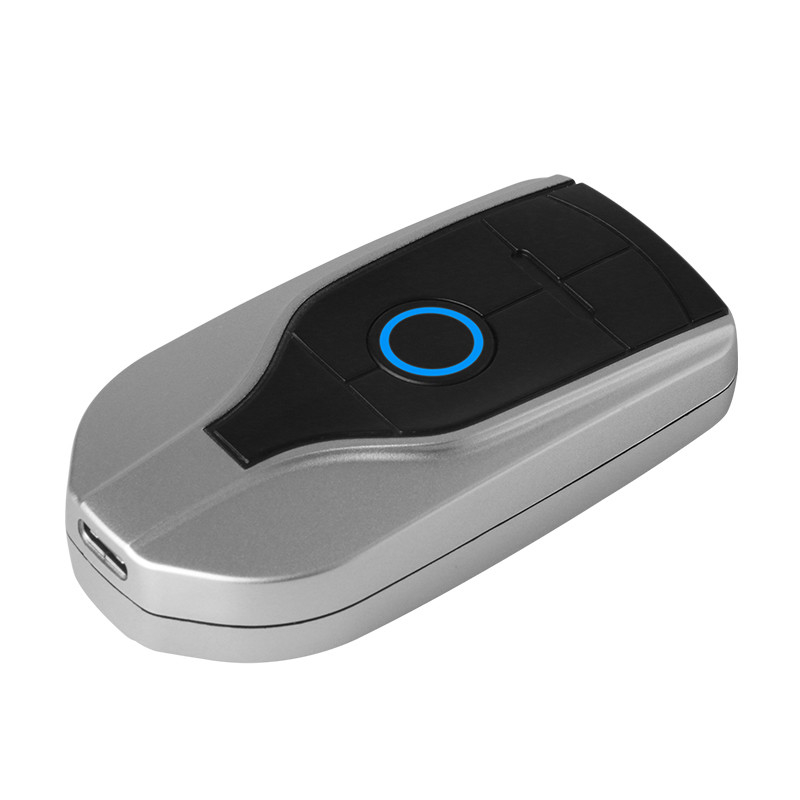

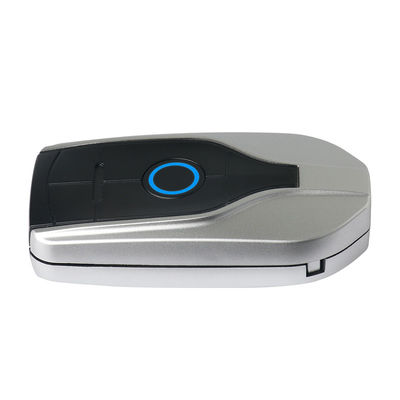

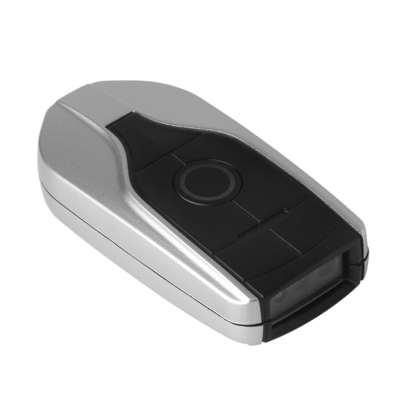

2.4GHz Wireless CMOS Bluetooth Barcode Scanner 450mAh Portable Mini Code reader
Product Description
DI9150-2D is a high-performance 2D bluetooth and wireless barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
Performance
| Scan Type | CMOS |
| Light Source | Aiming: Red LED,wavelength coverage 525nm |
| CPU | 32-bit |
| Resolution | 640*480 |
| Start time | 4s |
| Resolution | ≥4mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 25CM/S |
| Depth of field | 30-500mm |
| Scan Mode | Trigger mode,Auto sense mode |
| Indicator | LED, Buzzer, Vibration |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 450mAh |
| Battery charging time | About 1.5 h |
| Continuous working time | ≥2.5 hours |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) |
Physical Parameter
| Weight | ≈70g(without cable) |
| Dimension | 73.8mm L * 37mm W *16.3 mm H |
| Communication Mode | USB-KBW ,Wireless bluetooth |
| Interface Type | Type C |
| Power Supply |
DC 5V@150mA(work) |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |
Detail Image
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
