| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS6510B-M9 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 61.5*38.5*25.5cm/10pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Resolution: | 3mil | Decoding Speed: | 35CM/S |
|---|---|---|---|
| Depth Of Field: | 3mil：50~130mm，13mil：50~270mm | Scan Mode: | Manual , Auto Sense |
| Print Contrast Signal: | ≥20% | Storage: | 16Mb（over 100,000 Product Code） |
| Battery Capacity: | 2200mAh | Dimension: | 60*115*170mm Scanner |
| Highlight: | Barcode Scanner With Charging Stand,2200mAh barcode scanner,2D QR Bar Code Reader |
||

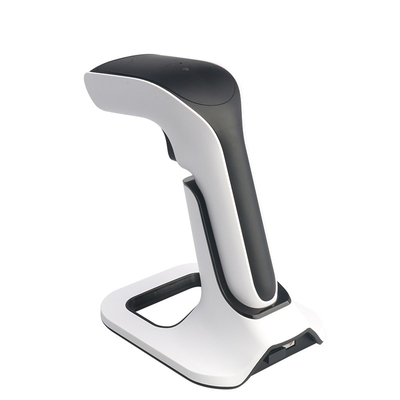

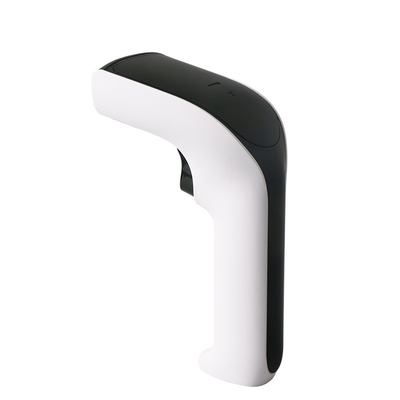

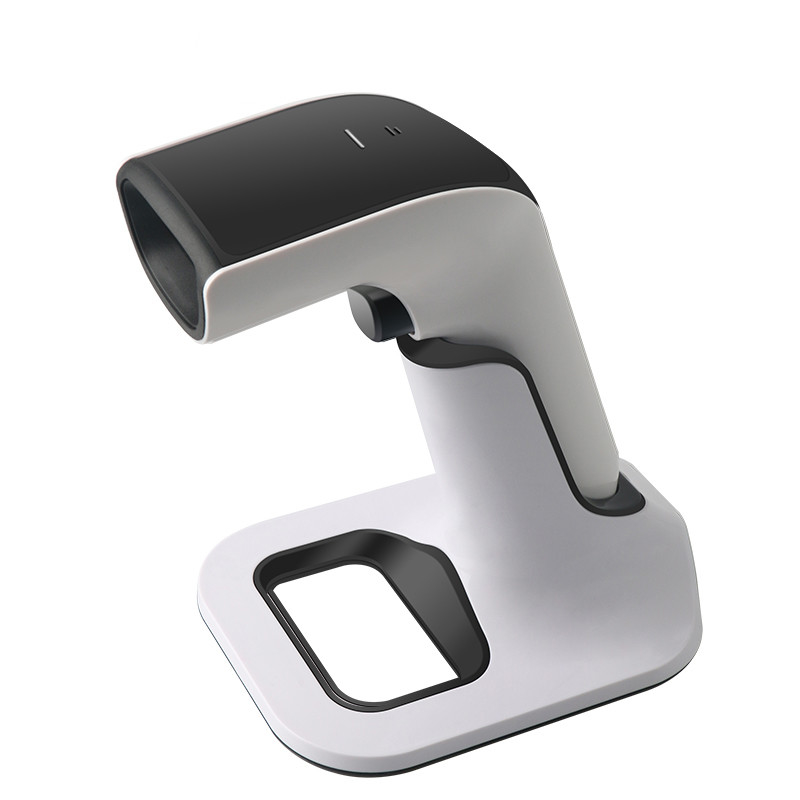

DS6510B-M9 2D QR Bar Code Reader bluetooth and wireless 2.4G barcode scanner with charging stand 2200mAh Battery
Product Description
DS6510B is a high-performance 2D bluetooth and wireless 2.4G barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Performance
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LED ( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Start time | 4s |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding speed | 35CM/S |
| Depth of field | 3mil:50~130mm,13mil:50~270mm |
| Scan Mode | Manual , Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 2200mAh |
| Battery charging time | About 5 hours |
| Continuous working time | ≥16hours |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
Physical Parameter
| Weight | ≈151g(without cable) |
| Dimension | L161mm * W63mm * H80mm |
| Communication Mode | USB, Wireless 2.4G, Bluetooth |
| Interface Type | USB |
| Power Supply |
DC5V input, Standby current:50mA,Decoding current:120mA |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |
Detail Image
