| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS6100 |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 110g | Dimension: | L150mm * W70mm * H95mm |
|---|---|---|---|
| Communication Way: | DC 5V@130mA | CPU: | 32-bit |
| Resolution: | ≥4mil/0.1mm | Scan Tolerance: | 10CM/S |
| Depth Of Field: | 10mm-500mm | ||
| Highlight: | 2D Wired Barcode Scanner,10-500mm Wired Barcode Scanner,10CM/S Wired Barcode Scanner |
||

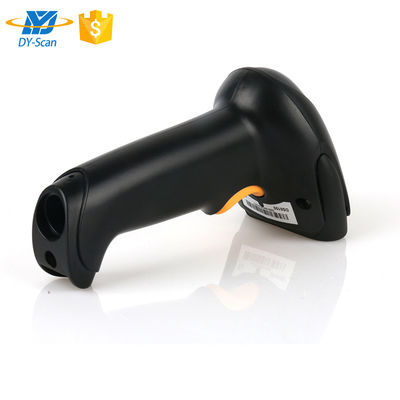

DS6100 2D Wired Barcode Scanner Affordable 10CM/S Scan Speed 10-500mm Depth of Field
Product Description
The DS6100 is a high-performance 2D barcode scanner equipped with advanced CMOS image recognition technology. It effortlessly reads barcodes from paper, products, screens, and other media types. This versatile scanner is widely utilized in industries such as manufacturing, warehousing, logistics, healthcare, retail chains, mobile payment, express delivery, inventory management, food traceability, and asset inventory, among others.
Features
☆ Ergonomic design, comfortable using, cost-effective.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ Interface: USB.
☆ Support multiple languages and systems.
☆ Support USB barcode information transmission. ( languages customization)
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | ≈110g(without cable) |
| Dimension | L150mm * W70mm * H95mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@130mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Red light LED 625±10nm(aim),5600K LEDs(lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥4mil/0.1mm(PCS90%,Code 39) |
| Scan tolerance | 10CM/S |
| Depth of field | 10mm-500mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Roll360°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥25% |
| Ambient light | Dark, indoor natural light |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13, Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Codabar(NW-7),MSI, etc. 2D: QR Code,PDF417,Data Matrix,etc. |
| Environmental | |
| Operating temperature | -10℃ to 50℃ |
| Storage temperature | -30℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 4MIL | 30-60mm (PCS90%,Code 39) |
| 13MIL | 40-210mm (PCS90%,EAN-13) |
| 20MIL | 50-260mm (PCS90%,Code 39) |
| 40MIL | 130-500mm (PCS90%,Code 39) |
| 20MIL | 100-180mm (PCS90%,QR Code) |
| Accessories list | |
| Data cable | USB,connect the scanner to a host device |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
