| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5200G |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 160g | Dimension: | L175mm * W72mm * H100mm（Scanner） |
|---|---|---|---|
| Interface Type: | USB | Communication Way: | USB , Wireless 2.4GHz |
| CPU: | 32-bit | Resolution: | ≥3mil |
| Highlight: | Universal Handheld Barcode Reader,1D Handheld Barcode Reader,2.4G Handheld Barcode Reader |
||

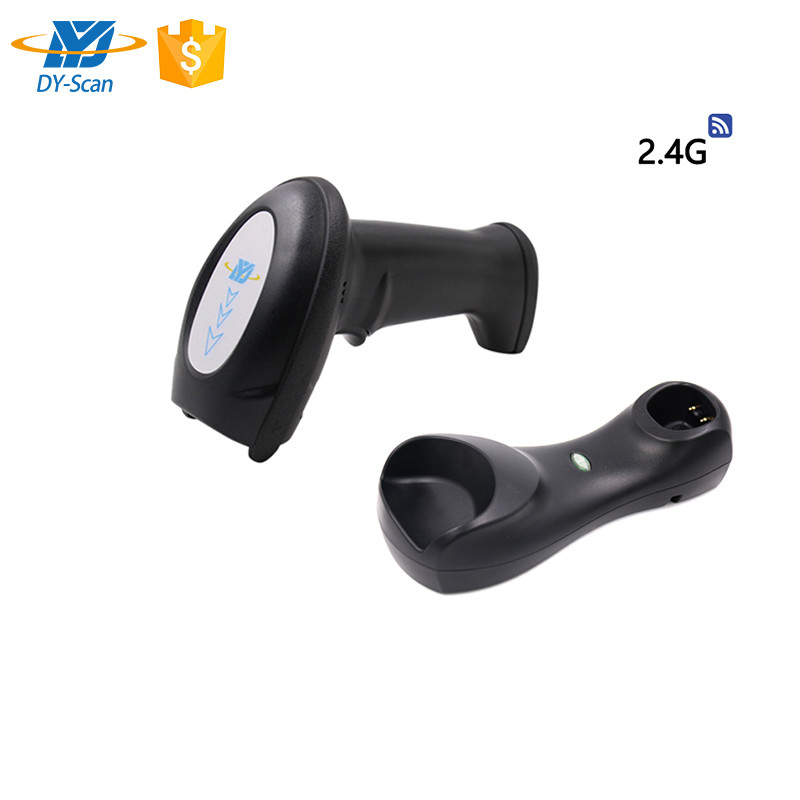

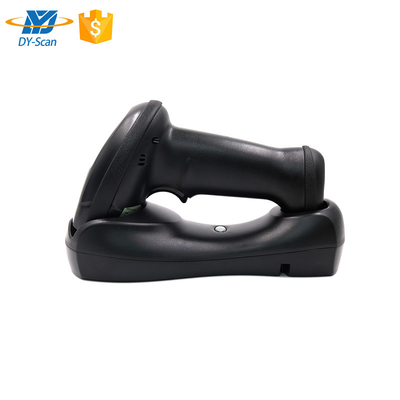

DS5200G Pedestal 2.4G Handheld Barcode Reader 1D 3 Mil Resolution Universal Scanner
Product Description
DS5200G is a high-performance 1D Wireless barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic Industrial design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Support multiple systems and languages.
☆ Interface: USB.
☆ Widely used in supermarket, mobile payment, industry manufacturing, inventory management.
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | ≈160g(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@80mA(work) |
| Performance | |
| Scan type | Linear CCD |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Dark,indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 60-100mm (PCS90%,Code 39) |
| 13MIL | 10-320mm (PCS90%,EAN-13) |
| 20MIL | 10-430mm (PCS90%,Code 39) |
| 40MIL | 110-600mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device |
FAQ
1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.
2. What's the payment way ?
A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.
3. How about your product warranty ?
A: Our officially promised warranty time is 1 years after delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
With well packed carton by foam and plastic film to advoid goods damage.
5. where I can get the support ?
A: We support you technically 24h
