| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DI9010-2D |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Dimension: | L51.5mm * W35mm * H45mm | Interface: | Type C |
|---|---|---|---|
| Communication: | Bluetooth,wireless 2.4G | Resolution: | ≥3mil |
| Scan Type: | Manual , Auto Sense | Speed: | 25cm/s |
| Depth Of Field: | 3mil：55~100mm，13mil：55~350mm | ||
| Highlight: | 360mAh Wireless Barcode Scanner,Black Ring Wireless Barcode Scanner,CMOS Sensor Wireless Barcode Scanner |
||

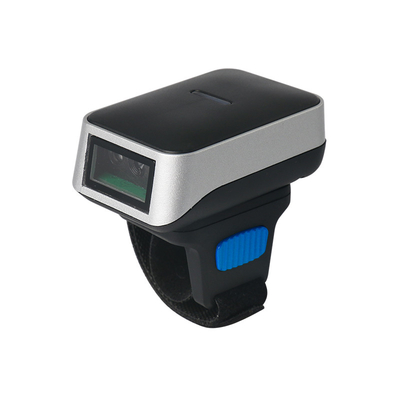

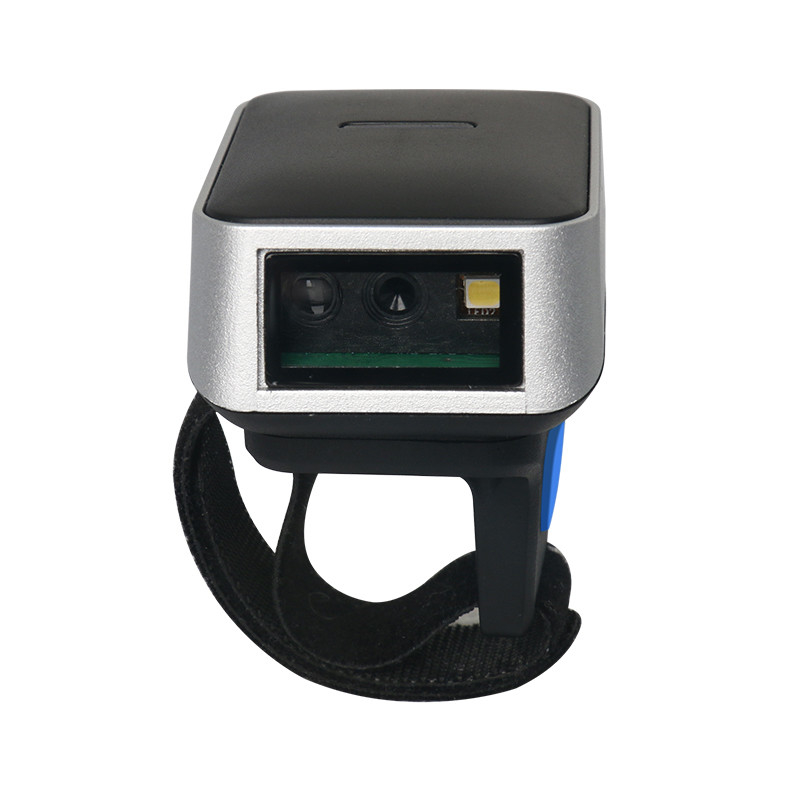

Black Wireless Ring Barcode Scanner with CMOS Sensor 360mAh Battery for Inventory
Product description
The DI9010-2D is a high-performance ring-type 2D barcode scanner featuring both Bluetooth and 2.4G wireless connectivity, powered by advanced CMOS image recognition technology. Its wearable design allows for easy and efficient barcode scanning from paper, products, and various other media. This versatile scanner is widely used in courier services, inventory management, and a range of other applications.
Features
☆ Mini ring-type design, widely used in warehouse, express.
☆ Read all mainstream 1D 2D barcodes in the market easily.(3mil)
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
☆ HID,SPP,BLE mode, connected with PC, mobile phone easily.
☆ Ultra-low power consumption, continuous working time more than 3h.
☆ 10,000 data storage capacity. (Inventory mode: 100,000 data)
Parameter
| Scan Type | CMOS |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm |
| CPU | 32-bit |
| Start time | 750ms |
| Resolution | 640*480 |
| Reading precision | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25CM/S |
| Visual angle | Horizontal 40°× Vertical 30° |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan Mode | Trigger mode,Auto sense mode |
| Scan angle |
Test Conditions:CODE39,10mil/0.25mm,PCS90% Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥25% |
| Ambient Light | 70000lux |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | Bluetooth 30 m, Wireless 2.4G 150m(Open distance) |
| Storage | 16Mb(over 100,000 barcodes) |
| Battery capacity | 360mAh |
| Battery charging time | About 1.5 h |
| Continuous working time | ≥3h |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
