| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5210 |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Item Name: | 2D Handheld Wired Barcode Scanner | Scan Type: | CMOS |
|---|---|---|---|
| CPU: | 32-bit | Resolution: | 2500 |
| Decoding Speed: | 300SCAN/S | ||
| Highlight: | 1D CCD Handheld Barcode Scanner,High-Speed Handheld Barcode Scanner,Wired Connection 2d Qr Code Reader |
||
High-Speed 1D CCD Handheld Barcode Scanner 300 Scans/s Wired Connection 2d qr code reader
Product description

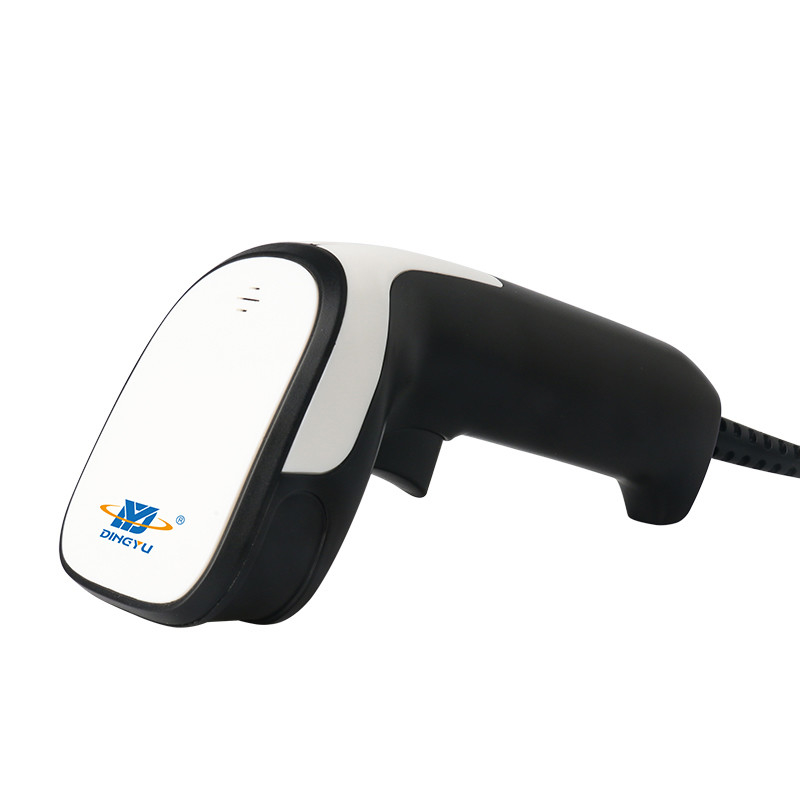

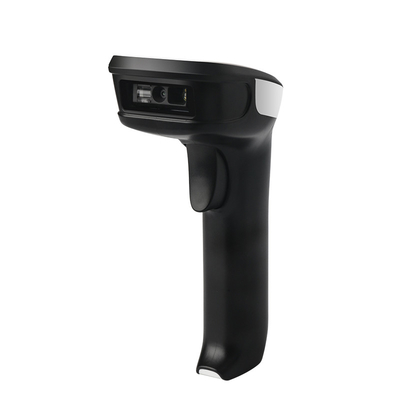

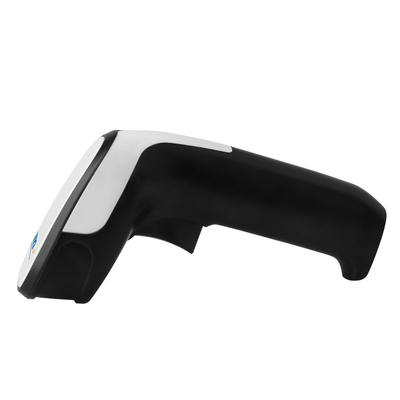

DS5210 is a wired 2D handheld barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | 1D:≥5mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25CM/S |
| Scan view | Horizontal 40°× Vertical 30° |
| Depth of field | 5mil:50~130mm,13mil:50~270mm |
| Scan Mode | Manual , Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded. 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec. |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
