| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DI9150-2D |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Resolution: | 1D：≥3mil，2D：≥8.7mil @PCS90% | Depth Of Field: | 3mil：55~100mm，13mil：55~350mm |
|---|---|---|---|
| Light Source: | Red Light | Wireless Mode: | Wireless 2.4g, Bluetooth |
| Storage: | 2M | Scan Angle: | Roll±360°, Pitch±65°, Skew±60°（PCS90%, Code 39, 10mil/0.25mm） |
| Highlight: | Mini Portable 2D Barcode Scanner,70000lux 2D Barcode Scanner,Wireless Mouse Shaped 2D Barcode Scanner |
||

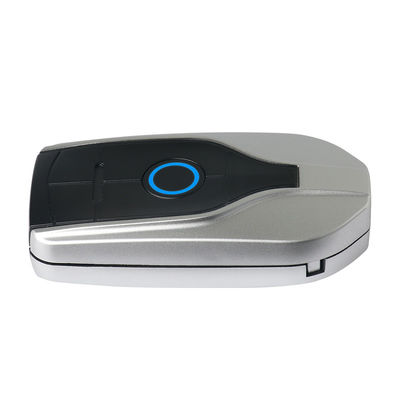

Mini Portable 2D Barcode Scanner Bluetooth 42 for Android iOS 200mA Battery 70000lux Wireless Mouse Shaped Design
Product Description
DI9150-2D is a high-performance 2Dbluetooth and wireless 2.4G barcode scanner with leading COMS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Parameter
| Scan Type | CMOS |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED,wavelength coverage 525nm |
| CPU | 32-bit |
| Start time | 750ms |
| Resolution | 640*480 |
| Reading precision | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25CM/S |
| Visual angle | Horizontal 40°× Vertical 30° |
| Depth of field | 3mil:55~100mm,13mil:55~350mm |
| Scan Mode | Trigger mode,Auto sense mode |
| Scan angle |
Test Conditions:CODE39,10mil/0.25mm,PCS90% Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥25% |
| Ambient Light | 70000lux |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | Bluetooth 30 m, Wireless 2.4G 150m(Open distance) |
| Storage | 16Mb(over 100,000 barcodes) |
| Battery capacity | 450mAh |
| Battery charging time | About 1.5 h |
| Continuous working time | ≥2.5h |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Weight | ≈70g(without cable) |
| Dimension | 73.8mm L * 37mm W *16.3 mm H |
| Interface Type | Type C |
| Power Supply | DC5V, standby current:47mA,Decoded average current:200mA . |
