| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DP8520P |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | L120mm*W80mm*H120mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | Color: | White |
|---|---|---|---|
| Decoding Speed: | 25CM/S | Interface Type: | USB,RS232 |
| Dimension: | 148mm L × 74mm W × 148mm H | ||
| Highlight: | Mobile Payment Barcode Scanner,Hands Free Barcode Scanner,Table Mounted Barcode Scanner |
||

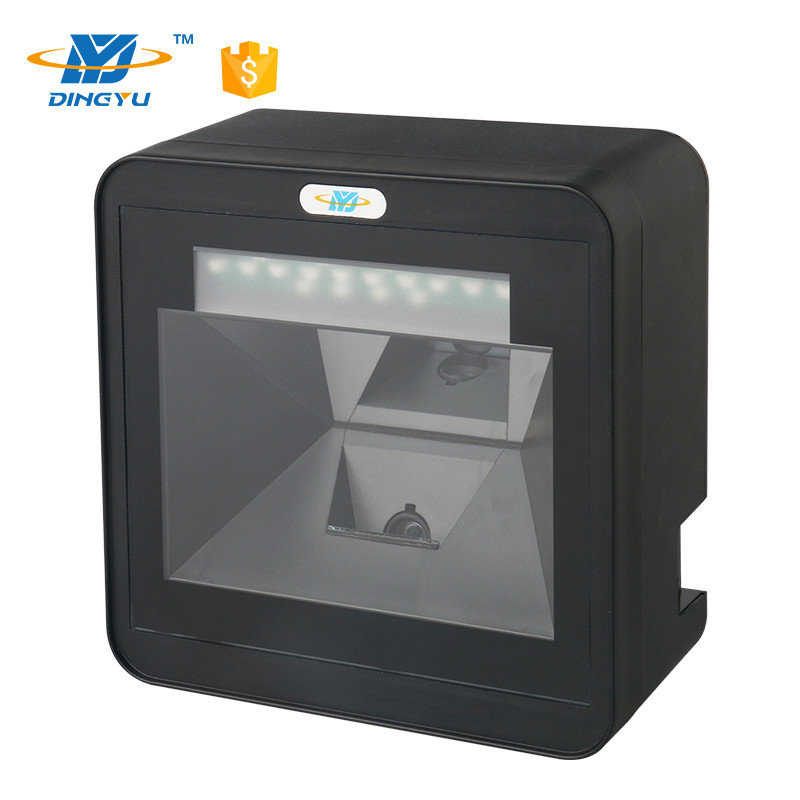

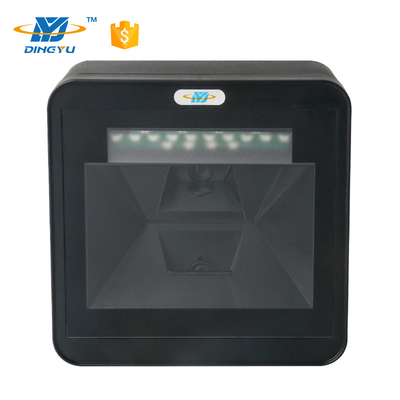

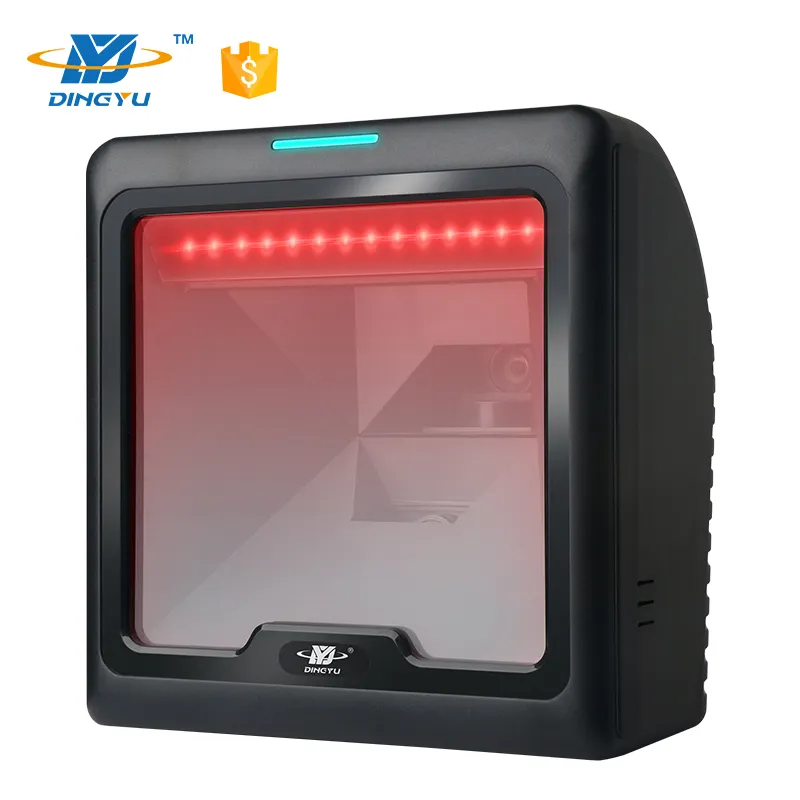

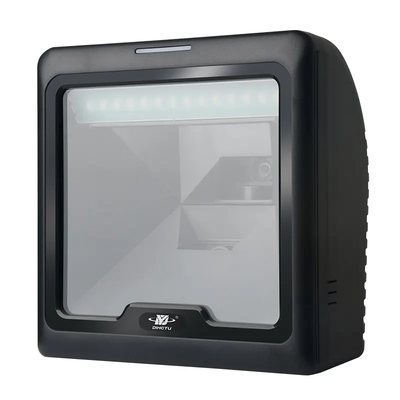

Table Mounted Omnidirectional Barcode Scanner Hands-Free Automatic Scanning for Mobile Payment
Product Description
DP8520P is a 1.3 mega pixel high performance 2D desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widely used in large supermarkets, restaurant, chain stores, and grocery stores.
Features
☆ Wide window design, auto sense scanning.
☆ 2d image technology, read paper, plastic, screen 1D 2D barcodes, etc. easily.
Parameter
| Light sourse | light: red ED,wavelength 525nm |
| Scan type | 1280×1024 CMOS (Global exposure) |
| CPU | ARM32-bit |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Scan distance | 3mil:55~100mm,13mil:55~350mm |
| Scan mode | Automatic scan |
| sound | buzzer |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Horizontal 40°× Vertical 30° | |
| Motion tolerance | 25cm/s |
| Input power | DC5V input,decoding:290mA |
| Print contrast | 25%PCS |
| Ambient Light | 70000Lux |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazilian bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Weight | 475g(without cable) |
| size | 148mm L × 74mm W × 148mm H |
| Interface |
USB-KBW,RS232,USB-COM(Driver is needed) (USB interface:Full Speed ,USB 2.0) |
| Operating Temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125R |
Our Services
1. Your inquiry related to our products or price will be replied in 24 hours.
2. Experienced staff to answer all your inquiries in English.
3. Protection of your sales area, ideas of design and all your private information.
4. Engineers can help you to solve any technical problems.
5. 1 year warranty.
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
