| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DP8550 |
| Minimum Order Quantity: | 1 Pcs |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1 PCS/BOX |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Dimension: | 156.75*77.4*156.75mm | Interface Type: | USB, RS232 |
|---|---|---|---|
| Light Source: | Red Light | Resolution: | 1280*800 |
| Scan Type: | Cmos | Mode: | Auto Sense |
| Depth Of Field: | 0-450mm | Print Contrast Signal: | ≥25% |
| Highlight: | Wall-Mounted Barcode Scanner Reader,Tabletop Barcode Scanner Reader,2D CMOS Barcode Scanner |
||

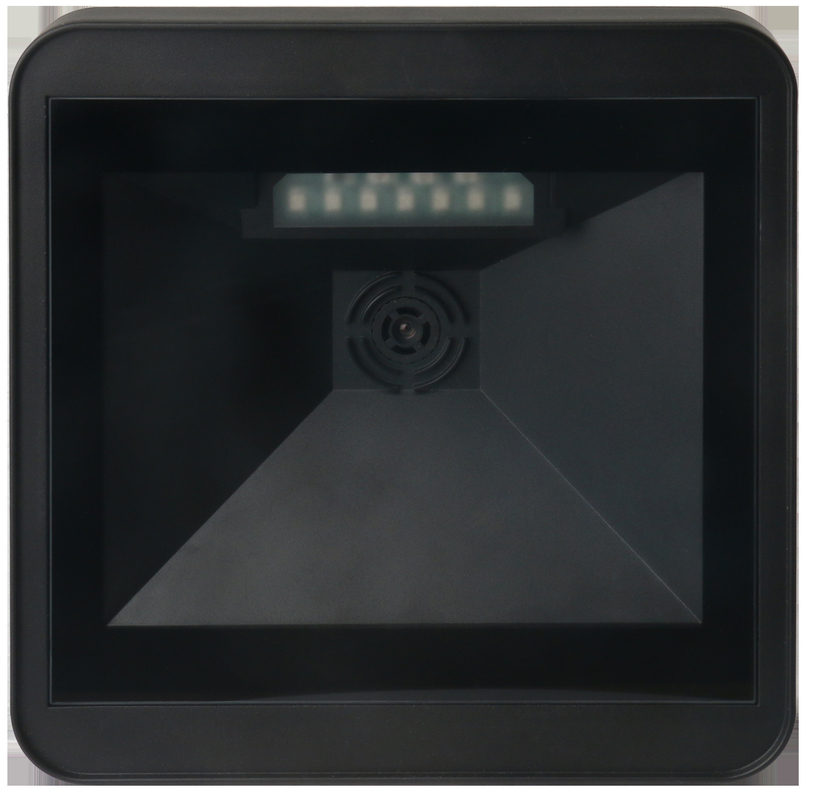

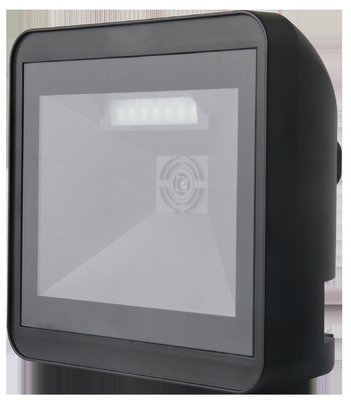

2D CMOS Barcode Scanner Wall-Mounted and Desktop Reader DP8550 for Tabletop and Wall-Mount Installations
Product Description
DP8550 is a stylish desktop two-dimensional image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system. Can easily read paper, goods, screens and other media on the one-dimensional code, two-dimensional code, strong reading performance. DP8550 scanning platform, with its compact and compact modern design and powerful imaging function, can be used in high-flow retail cashier environment and is suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco hotels and grocery stores.
Features
Application
▅ Chain retail ▅ Courier
▅ Supermarket
Parameter
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 1280*800 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Depth of field | 0mm-450mm |
| Scan Mode | Auto Sense |
| Scan angle | Roll±360°, Pitch±80°, Skew±70°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:Code 39,Codablock, Codabar, Code 128/EAN 128, Code 93,Code 11, Interleave 2 of 5, Matrix 2of 5, EAN.UCC Composite,Straight 2 of 5 Industrial, Straight 2 of 5,RSS,Plessey Code, MSI Code,Telepen,UPC-A,UPC-E0,EAN/JAN-13,BPO,Planet,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
| Weight | ≈265g (no Cable) |
| Dimension | 156.75*77.4*156.75mm |
| Interface Type | USB |
| Communication Mode | USB,RS232 |
| Power Supply | DC 5V@470mA(work) |
| Cable length |
1.5m |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
FAQ
1. What's the shipping way ?
There are DHL,Fedex,TNT, UPS.
We also can ship the goods by your shipping account or other express agent you provided.
2. What's the payment way ?
We accept PayPal ,T /T,LC , Western Union , MoneyGram.
3. How about your product warranty ?
Our officially promised warranty time is 1 years after delivery.
4. How can I get the goods ?
We will choost the fast , safe , and cost saving way to send goods to you.
With well packed carton by foam and plastic film to advoid goods damage.
5. If I come across any problem during product using ,where I can get the support ?
We support you technically 24h.please send all your questions to us. And we will give the professional,patient,expliantion by email or call in time.
