| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DP8520P |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiate |
| Packaging Details: | L120mm*W80mm*H120mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | Color: | White |
|---|---|---|---|
| Decoding Speed: | 25CM/S | Interface Type: | USB,RS232 |
| Dimension: | 148mm L × 74mm W × 148mm H | ||
| Highlight: | Hands-Free Desktop Barcode Scanner,Fast Desktop Barcode Scanner,Omnidirectional Desktop Barcode Scanner |
||

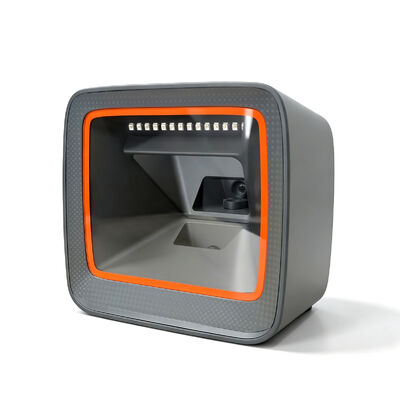

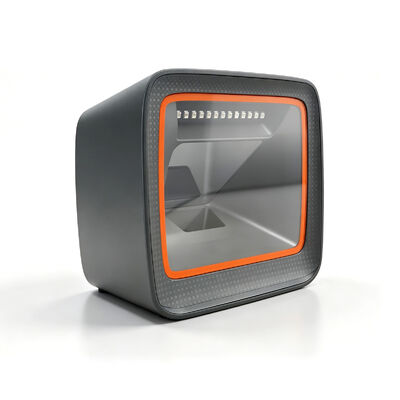

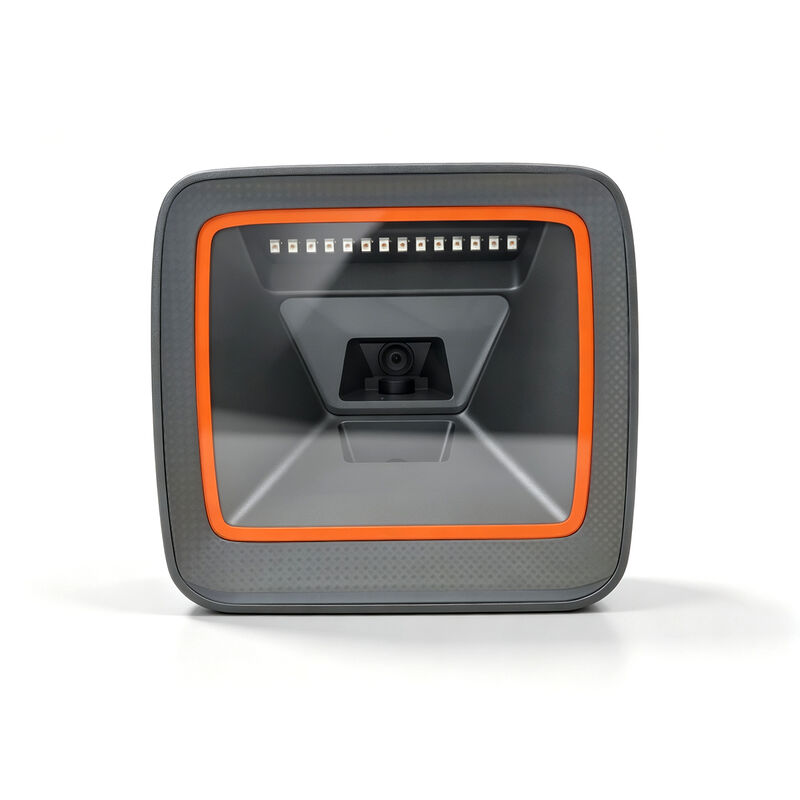

Orbit Omnidirectional Desktop Scanner Hands-Free Auto Barcode Scanning for Fast and Efficient Checkout
Product Description
DP8520P is a high-performance 2D desktop scanner featuring a 1.3-megapixel sensor and advanced CMOS image recognition technology.
It effortlessly reads 1D and 2D barcodes on paper, products, screens, and other media.
This versatile scanner is widely utilized in large supermarkets, restaurants, chain stores, grocery stores, and more.
Features
☆ Wide window design, auto sense scanning.
☆ 2d image technology, read paper, plastic, screen 1D 2D barcodes, etc. easily.
Parameter
| Light sourse | light: red ED,wavelength 525nm |
| Scan type | 1280×1024 CMOS (Global exposure) |
| CPU | ARM32-bit |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Scan distance | 3mil:55~100mm,13mil:55~350mm |
| Scan mode | Automatic scan |
| sound | buzzer |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Horizontal 40°× Vertical 30° | |
| Motion tolerance | 25cm/s |
| Input power | DC5V input,decoding:290mA |
| Print contrast | 25%PCS |
| Ambient Light | 70000Lux |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazilian bank code) 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Weight | 475g(without cable) |
| size | 148mm L × 74mm W × 148mm H |
| Interface |
USB-KBW,RS232,USB-COM(Driver is needed) (USB interface:Full Speed ,USB 2.0) |
| Operating Temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125R |
Our Services
1. Your inquiry related to our products or price will be replied in 24 hours.
2. Experienced staff to answer all your inquiries in English.
3. Protection of your sales area, ideas of design and all your private information.
4. Engineers can help you to solve any technical problems.
5. 1 year warranty.
